Truck & Bus
V3-20 series, V3.12-V3.19 European style, TR500-TR575, TR570C-TR573C and MS series metal high-pressure clamp-in valves for trucks, buses and heavy-duty commercial vehicles.
- Brass clamp-in metal valves for high pressure
- V3-20 series, V3.12-V3.19 European style, TR500-TR575, TR570C-TR573C and MS series options
- Rim holes Φ9.7-20.5mm; straight and bent versions up to 90°
- Heavy-duty construction for commercial vehicles
V3.12.1 Swivel Valve
Brass swivel tyre valve for agricultural machinery, Φ26 base, straight stem A=40mm, rim hole Φ15.7 (.625").
V3.14.2 Swivel Valve
Brass swivel tyre valve for agricultural machinery, Φ26 base, A=45mm, α/β=147°, rim hole Φ15.7 (.625").
V3.18.4 Swivel Valve
Large-bore brass swivel tyre valve for agricultural and off-road machinery, Φ31 base, A=51mm, B=37.5mm, C=19.5mm, α/β=138°, rim hole Φ20.5 (.812").
V3.18.2 Swivel Valve
Large-bore brass swivel tyre valve for agricultural and off-road machinery, Φ31 base, A=81mm, B=24.5mm, C=14.5mm, α/β=146°, rim hole Φ20.5 (.812").
V3.18.1 Swivel Valve
Large-bore brass swivel tyre valve for agricultural and off-road machinery, Φ31 base, A=64mm, B=24.5mm, C=14.5mm, α/β=146°, rim hole Φ20.5 (.812").
TR552 Clamp-In Valve
TR552 nickel-plated brass clamp-in truck valve stem, straight version, A=32mm, rim hole Φ9.7 (.390").
TR553D Clamp-In Valve
TR553D nickel-plated brass clamp-in truck valve stem, 60° bent, A=35mm B=25mm, rim hole Φ9.7 (.390").
TR554D Clamp-In Valve
TR554D nickel-plated brass clamp-in truck valve stem, 60° bent, A=49mm B=25mm, rim hole Φ9.7 (.390").
TR555D Clamp-In Valve
TR555D nickel-plated brass clamp-in truck valve stem, 60° bent, A=66mm B=25mm, rim hole Φ9.7 (.390").

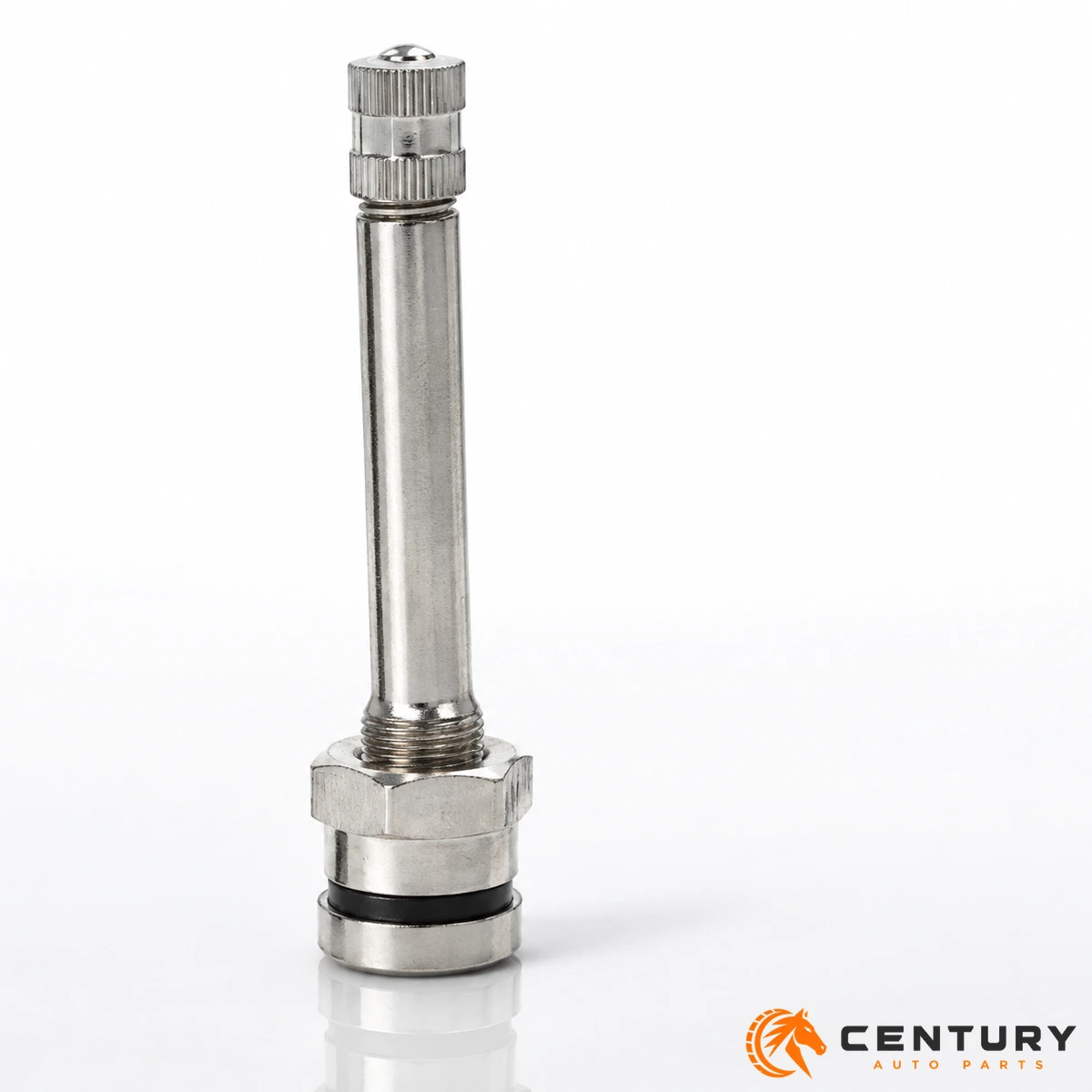

TR543 Clamp-In Valve
TR543 nickel-plated brass clamp-in truck valve stem, straight version, A=64mm, rim hole Φ9.7 (.390").

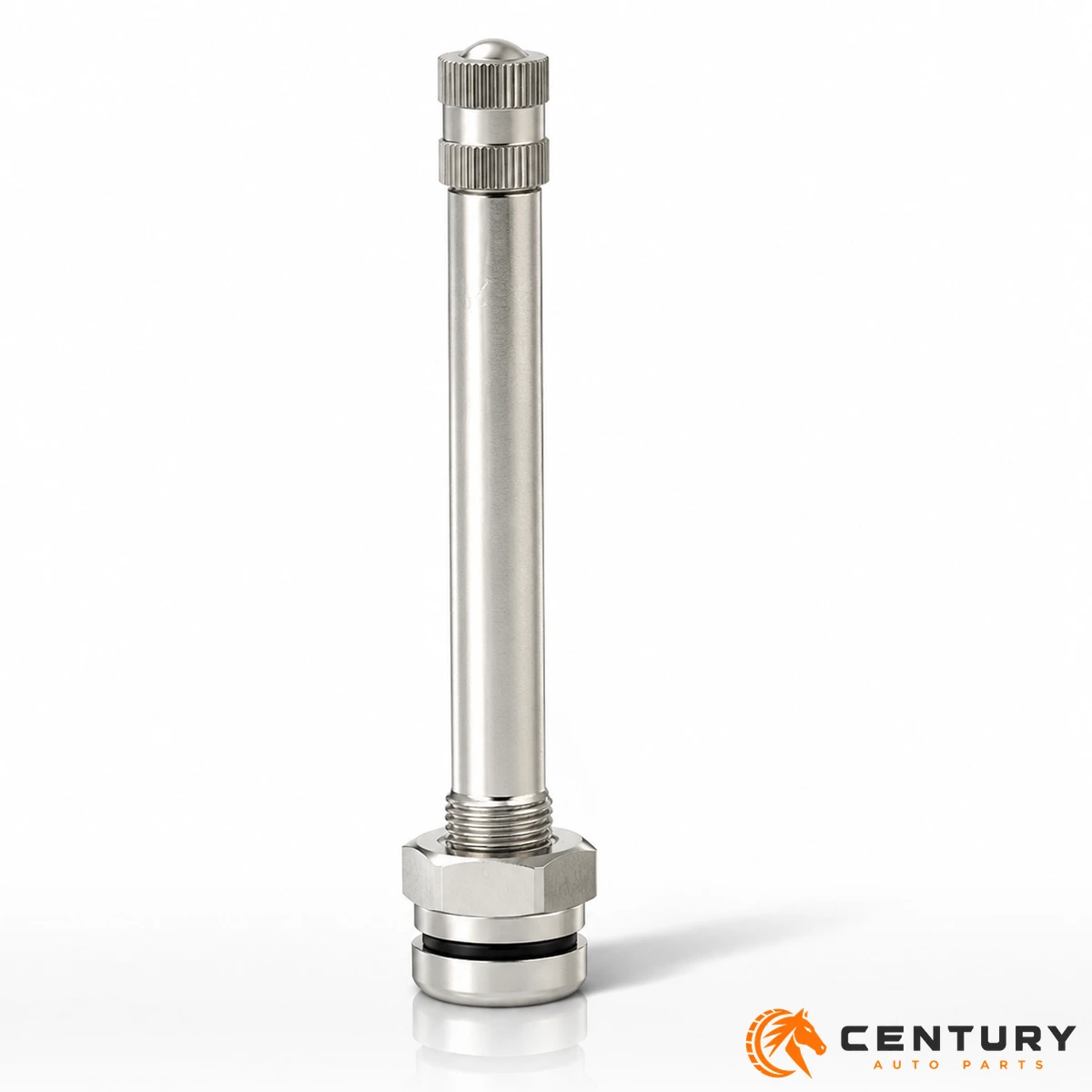

TR545 Clamp-In Valve
TR545 nickel-plated brass clamp-in truck valve stem, straight version, A=94mm, rim hole Φ9.7 (.390").

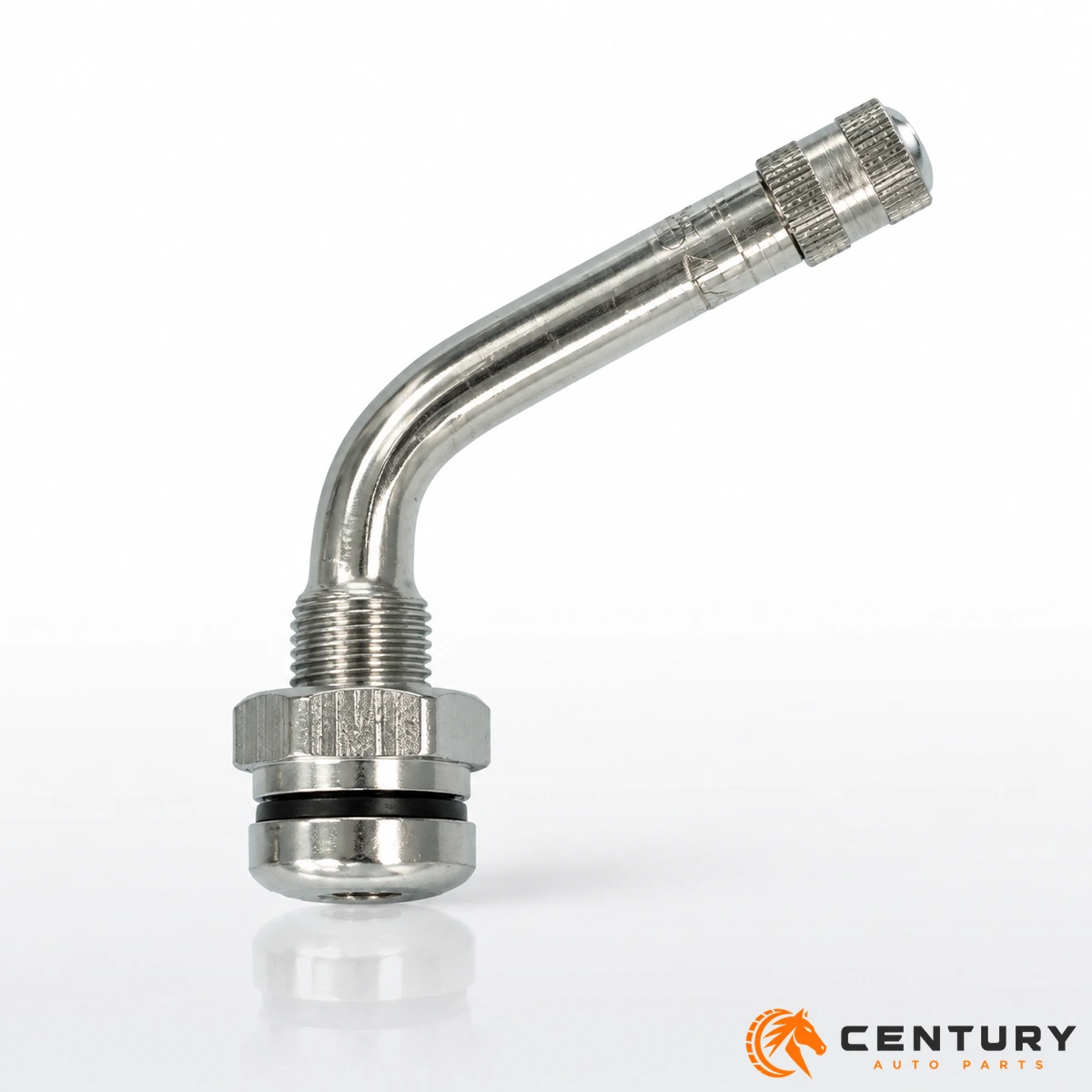

TR543D Clamp-In Valve
TR543D nickel-plated brass clamp-in truck valve stem, 60° bent, A=25mm B=29mm, rim hole Φ9.7 (.390").

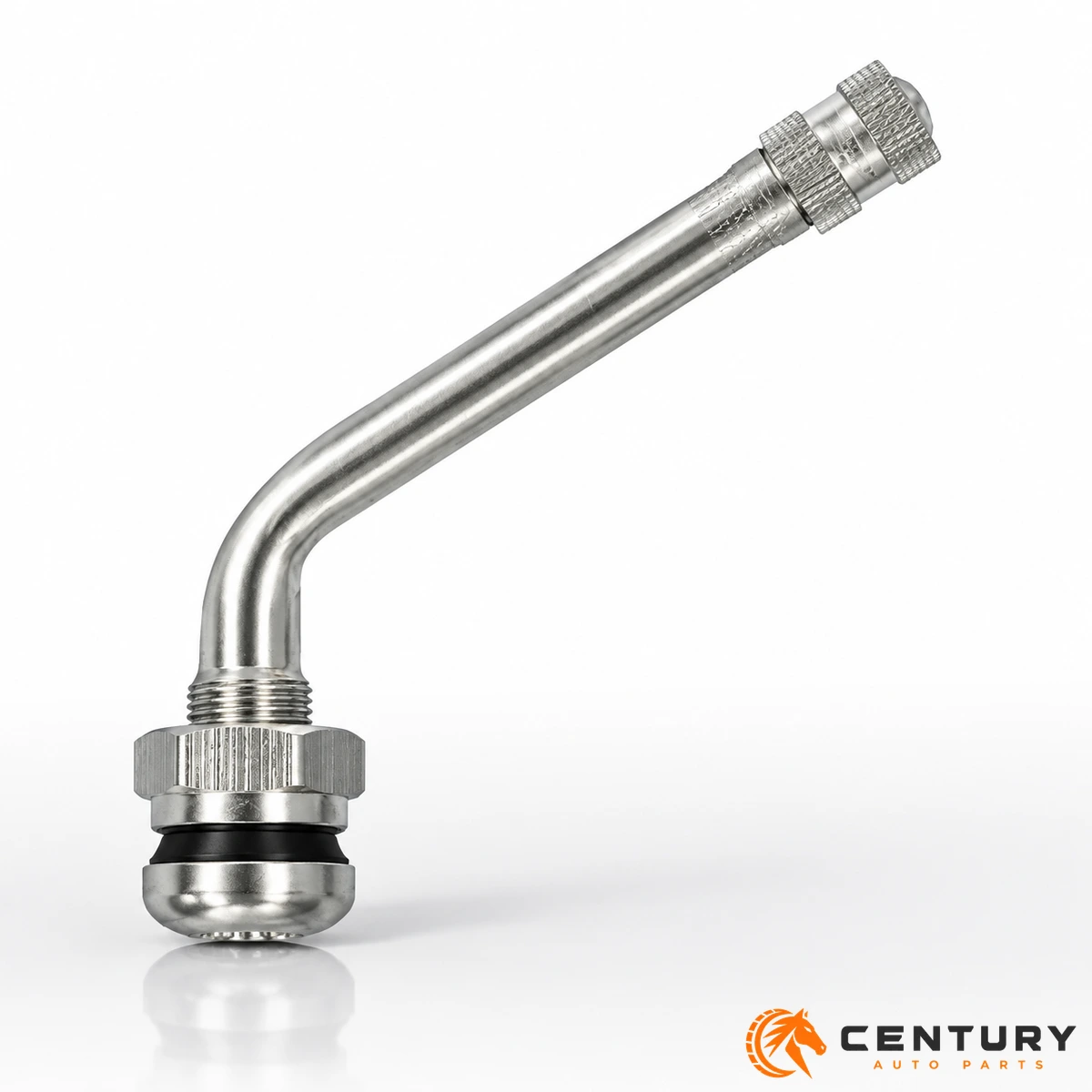

TR545D Clamp-In Valve
TR545D nickel-plated brass clamp-in truck valve stem, 60° bent, A=25mm B=64mm, rim hole Φ9.7 (.390").

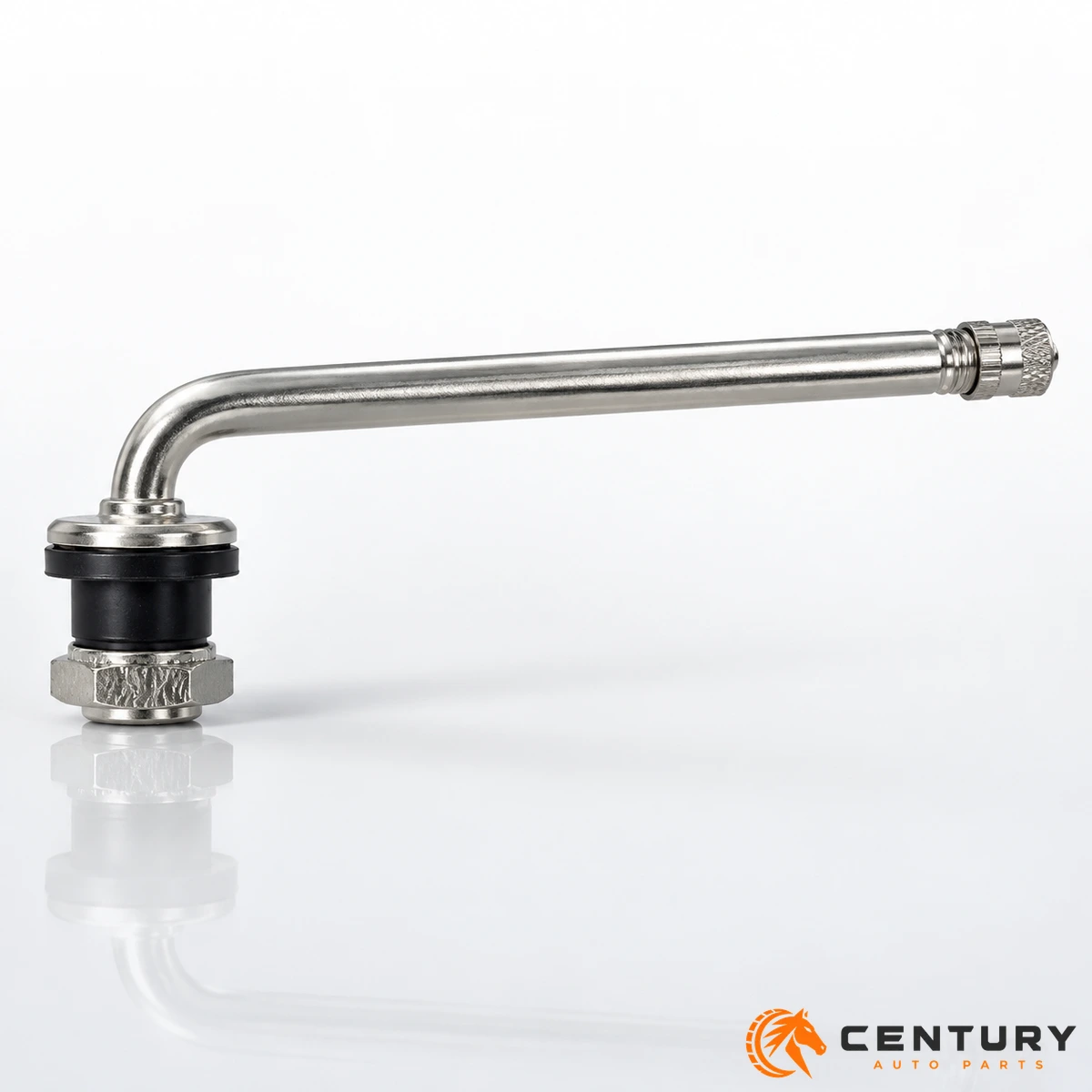

TR509 Valve Stem
TR509 nickel-plated brass 90° bent tubeless truck valve stem, eff. length 121mm, rim hole Φ15.7 (.625").

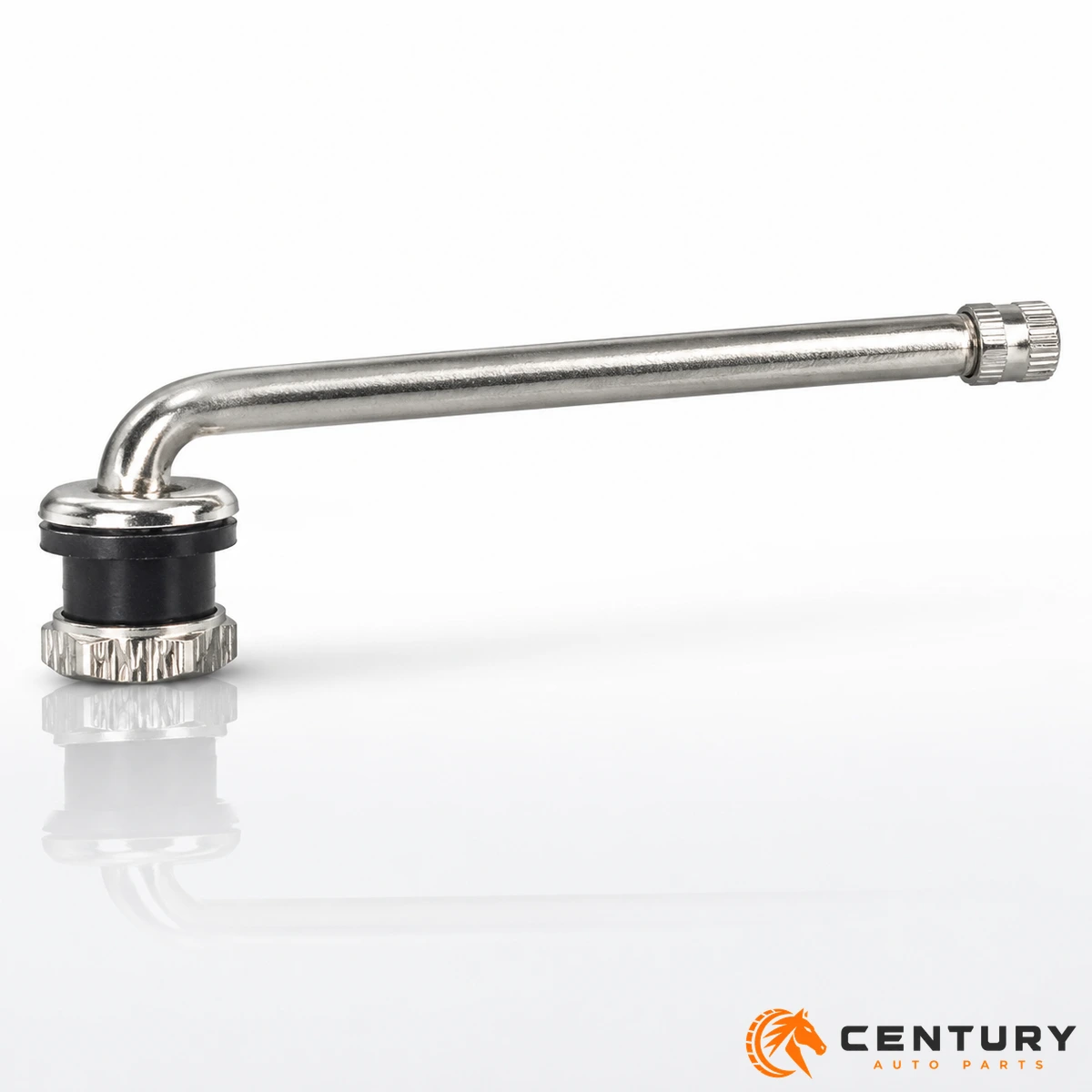

TR510 Valve Stem
TR510 nickel-plated brass 90° bent tubeless truck valve stem, eff. length 140mm, rim hole Φ15.7 (.625").

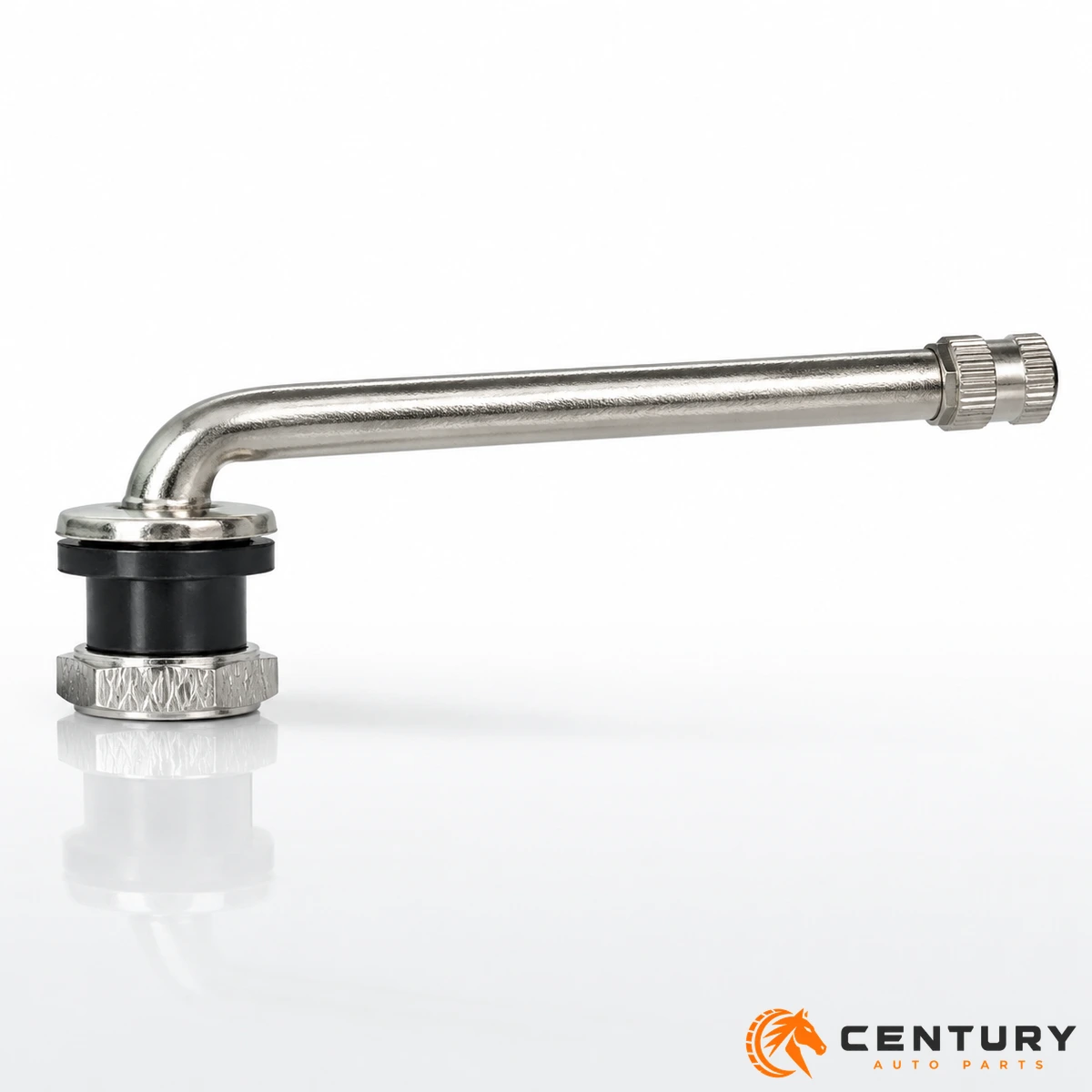

TR511 Valve Stem
TR511 nickel-plated brass 90° bent tubeless truck valve stem, eff. length 108mm, rim hole Φ15.7 (.625").

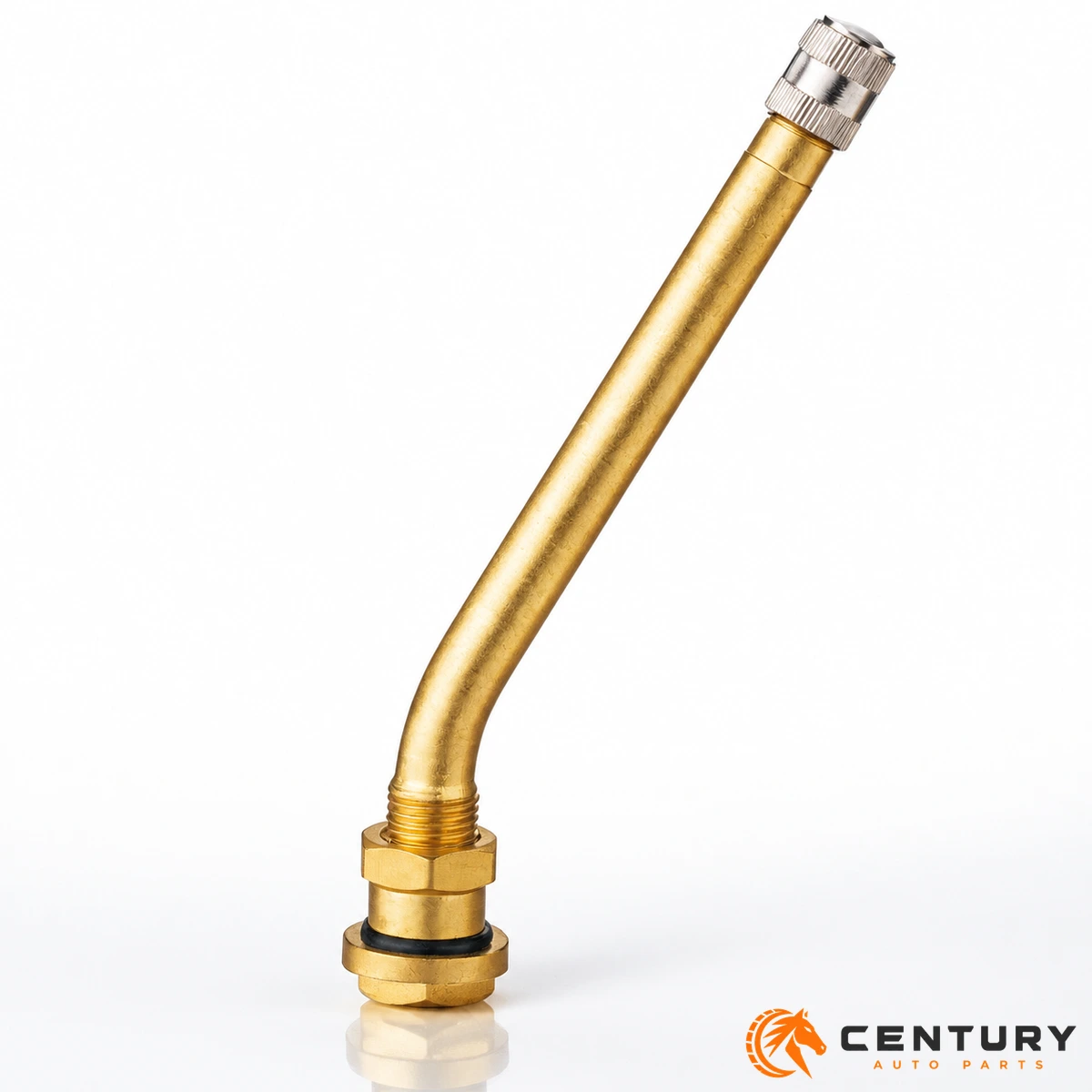

V3-20-6 Clamp-In Valve
Bent brass clamp-in truck and bus tubeless valve, 27° bend, A=25mm and B=85mm, rim hole Φ9.7 (.390").

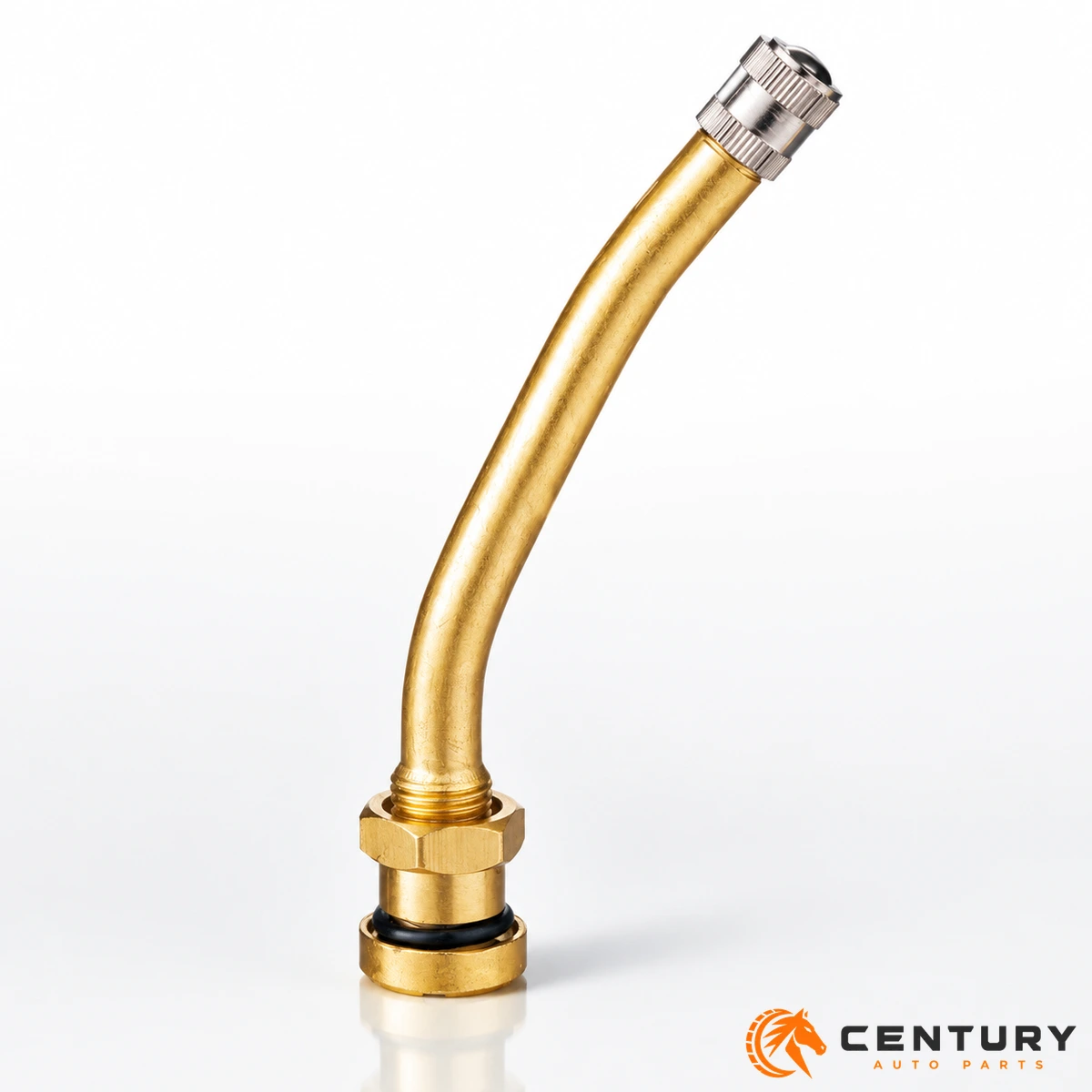

V3-20-11 Clamp-In Valve
Bent brass clamp-in truck and bus tubeless valve, 27° bend, A=25mm, B=45mm and C=25mm, rim hole Φ9.7 (.390").

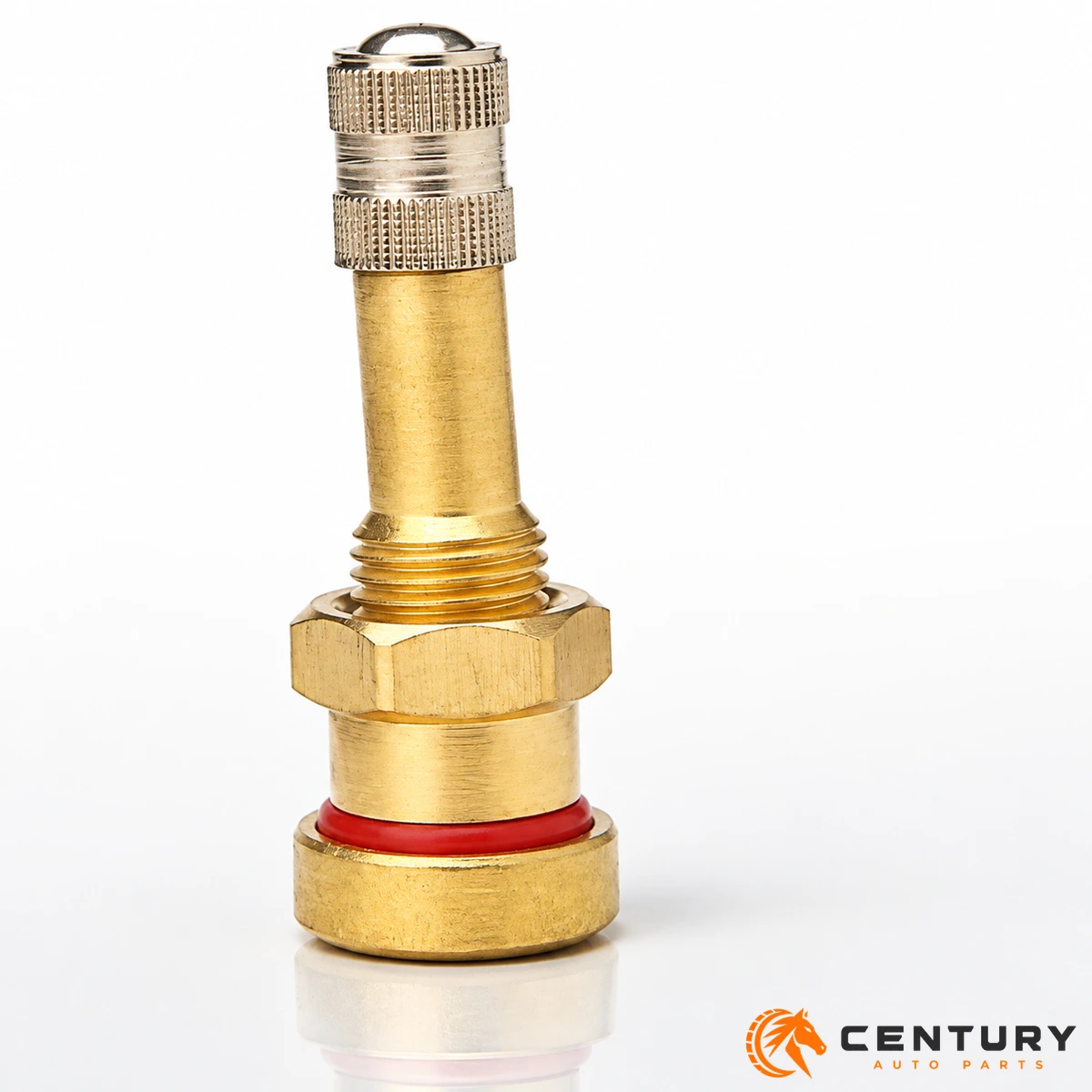

V3-20-1 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, 41mm length, rim hole Φ9.7 (.390").

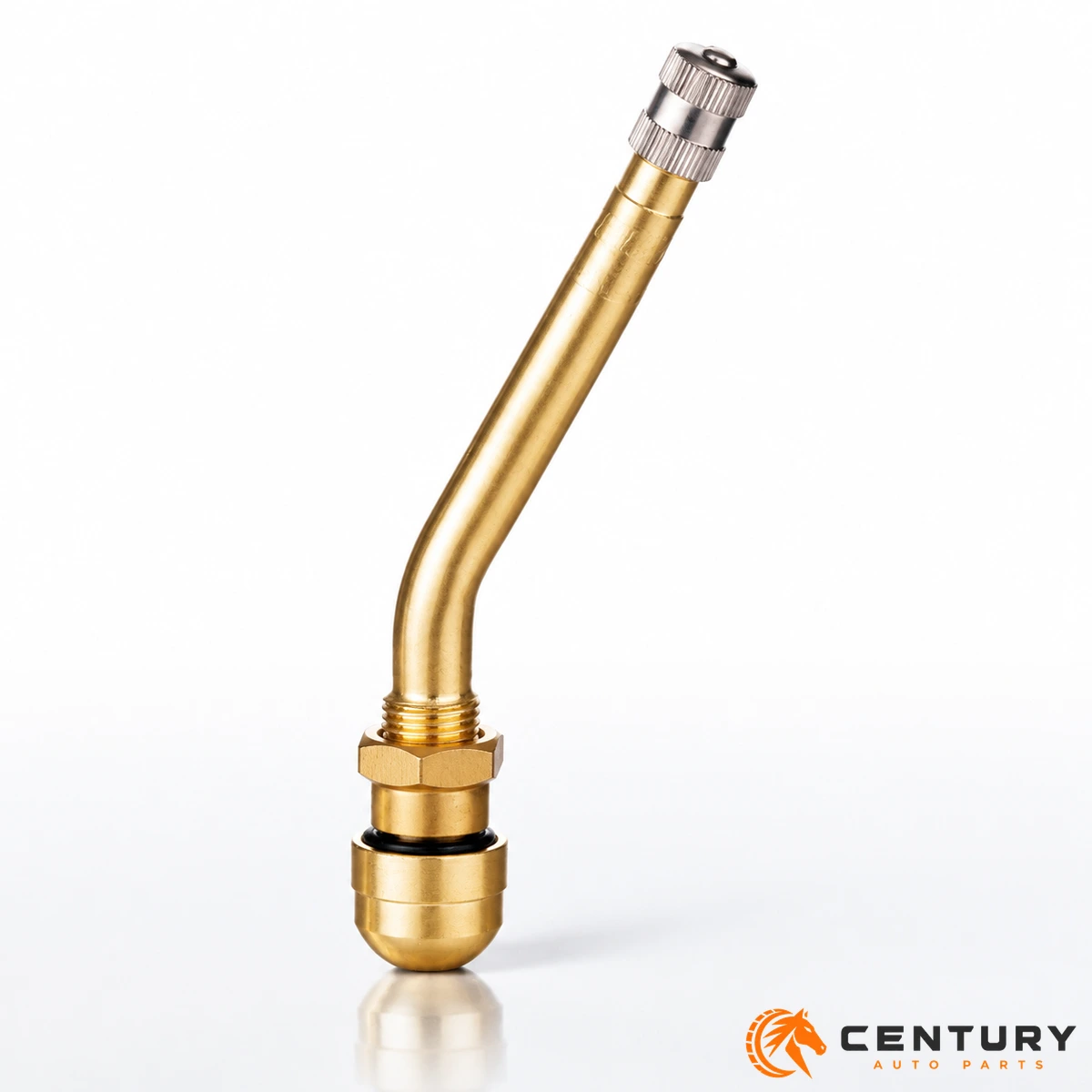

V3-20-4 TPMS Clamp-In Valve
TPMS-compatible bent brass clamp-in truck and bus valve, 27° bend, A=25mm and B=60mm, rim hole Φ9.7 (.390").

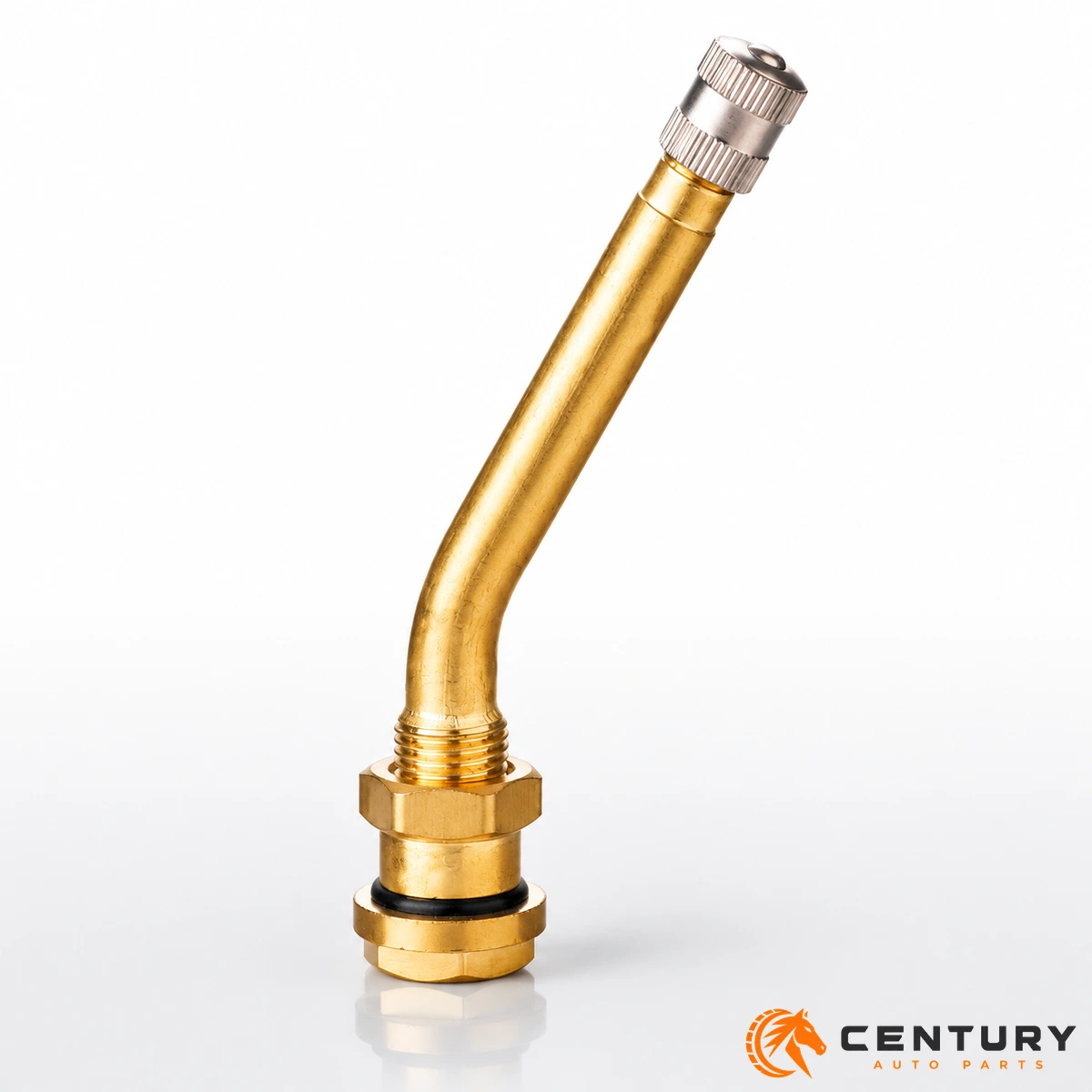

V3-20-4 Clamp-In Valve
Bent brass clamp-in truck and bus tubeless valve, 27° bend, A=25mm and B=60mm, rim hole Φ9.7 (.390").

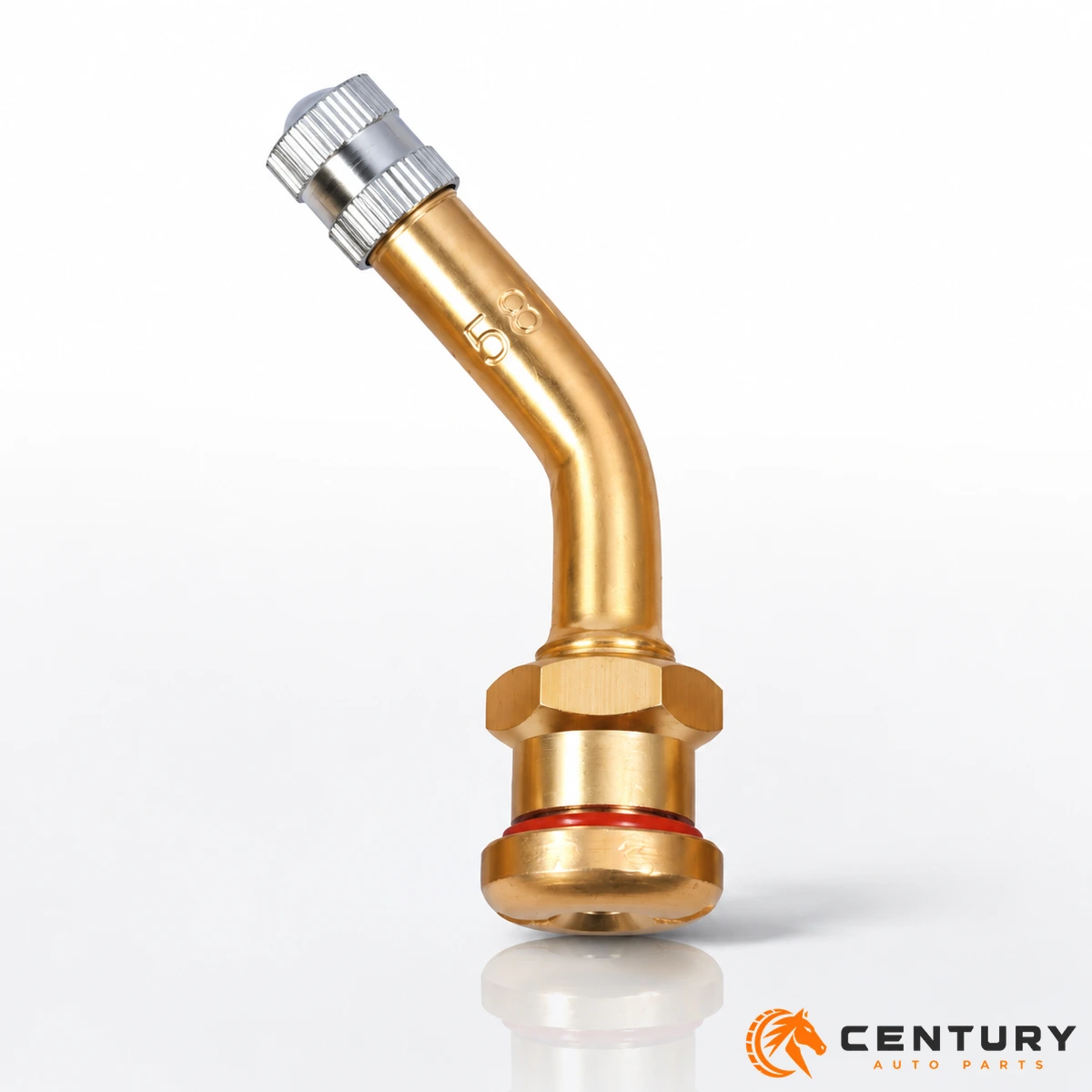

58MS Clamp-In Valve
Compact 45° bent brass clamp-in truck and bus tubeless valve, A=25mm and B=28mm, rim hole Φ9.7 (.390").

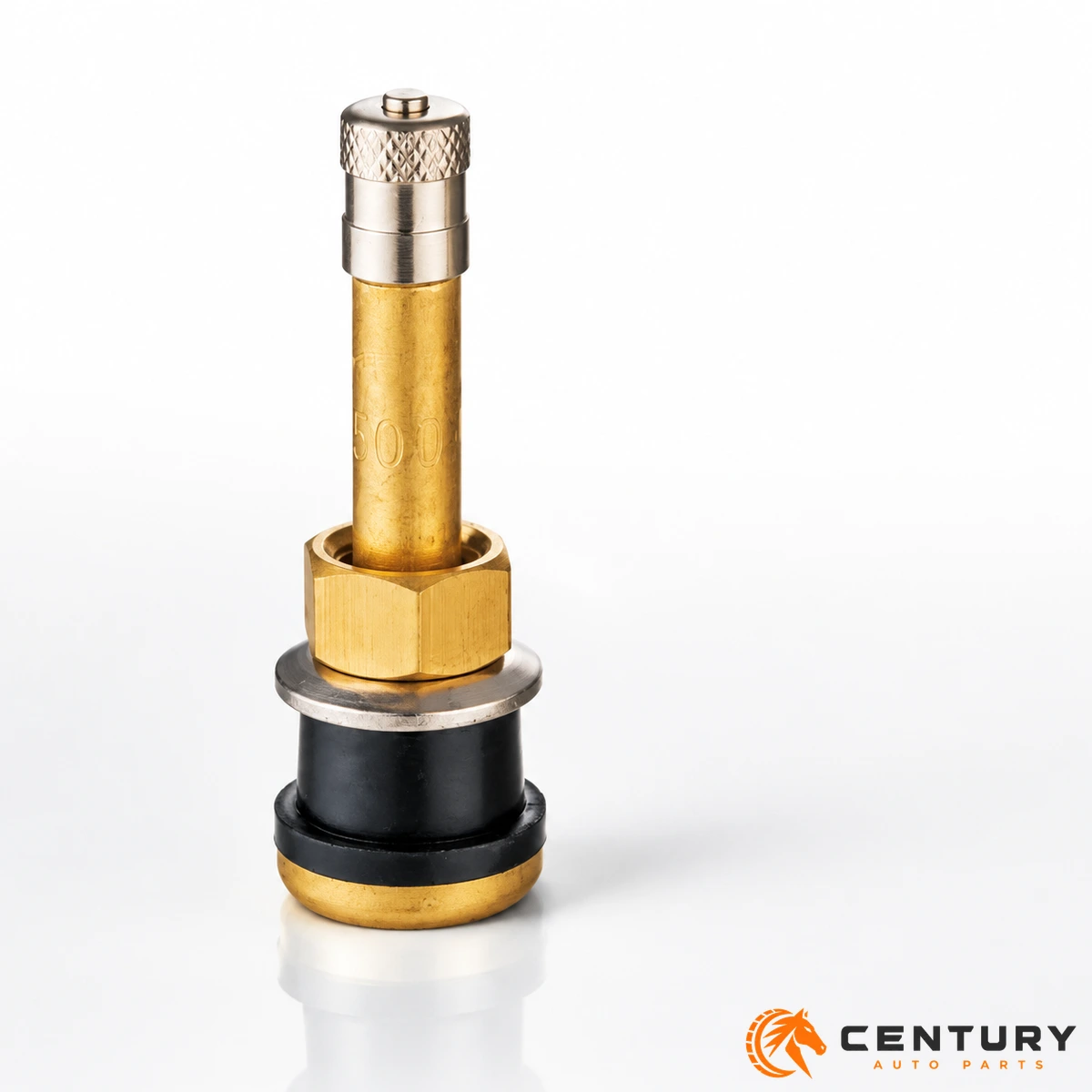

TR500 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, A=51mm, rim hole Φ15.9 (.625").

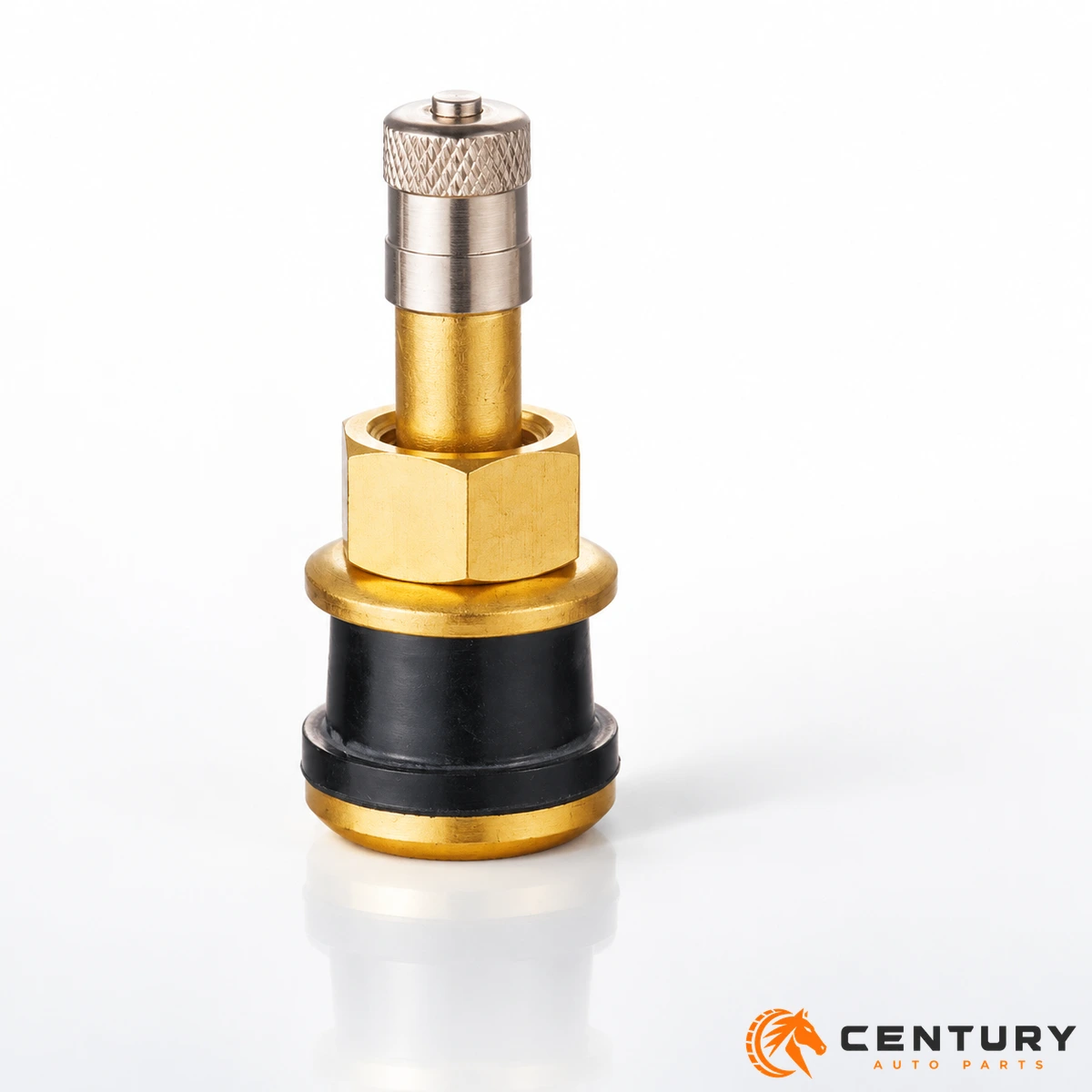

TR501 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, A=38mm, rim hole Φ15.9 (.625").
TR571 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, A=86mm, rim hole Φ15.9 (.625").

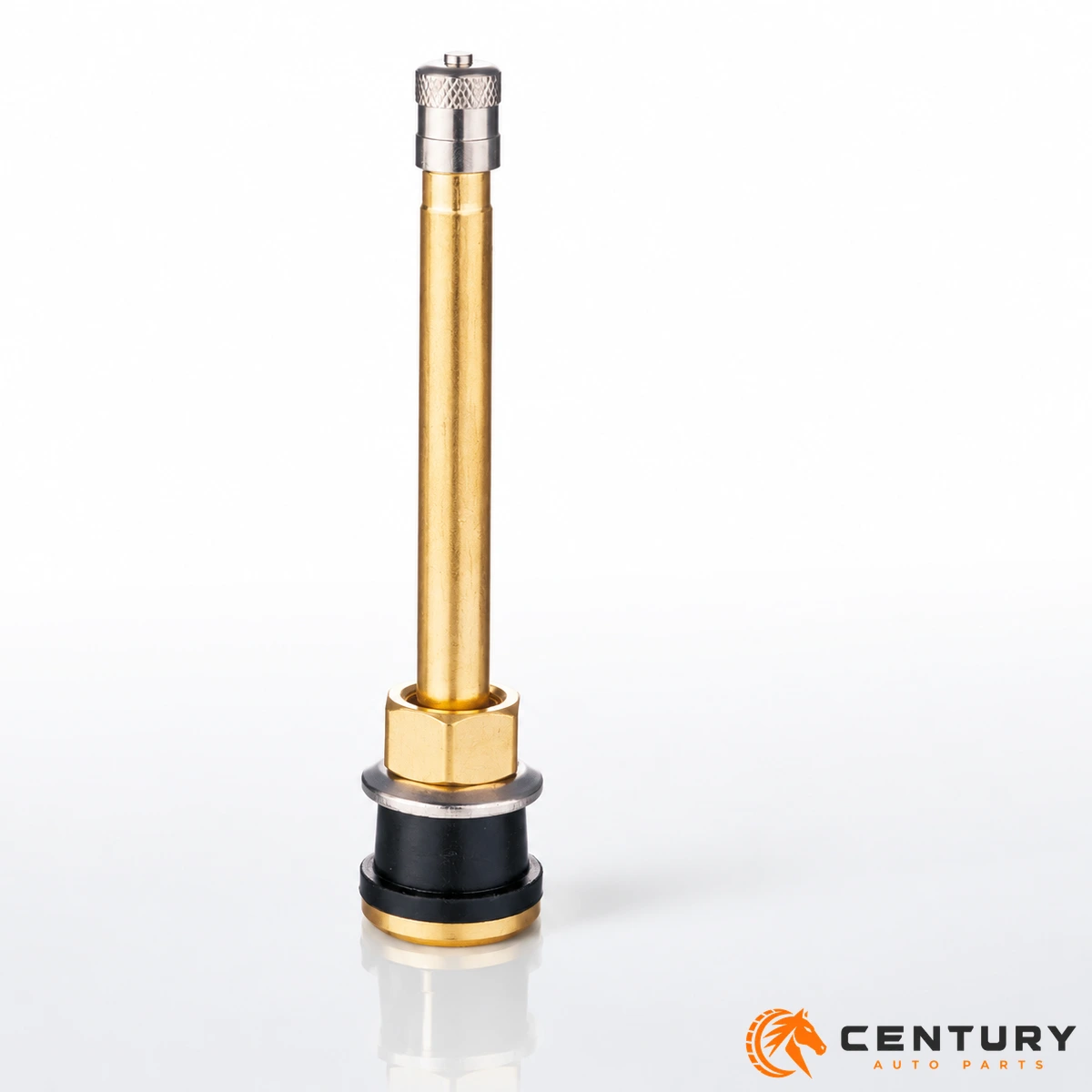

TR572 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, A=95mm, rim hole Φ15.9 (.625").

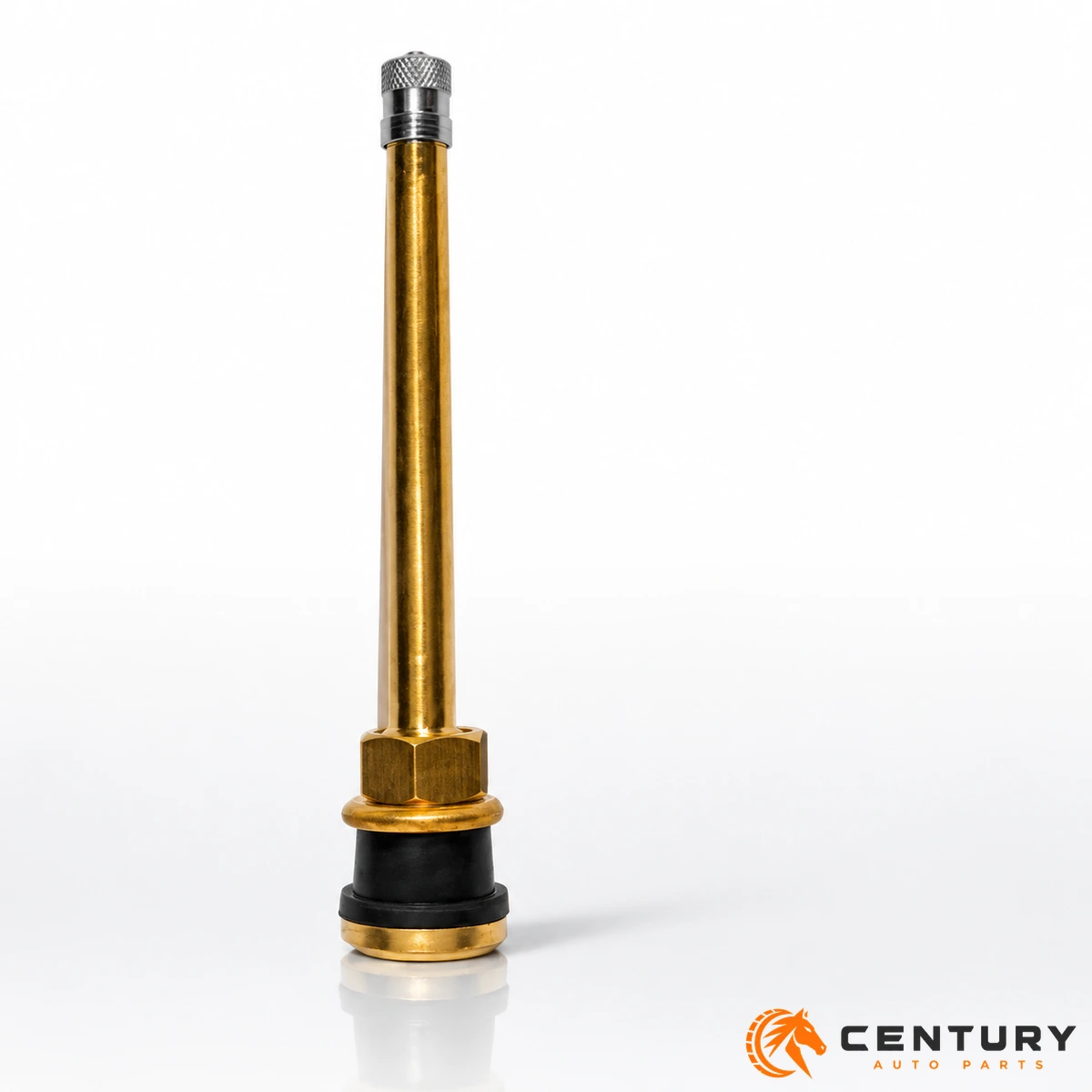

TR573 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, A=111mm, rim hole Φ15.9 (.625").

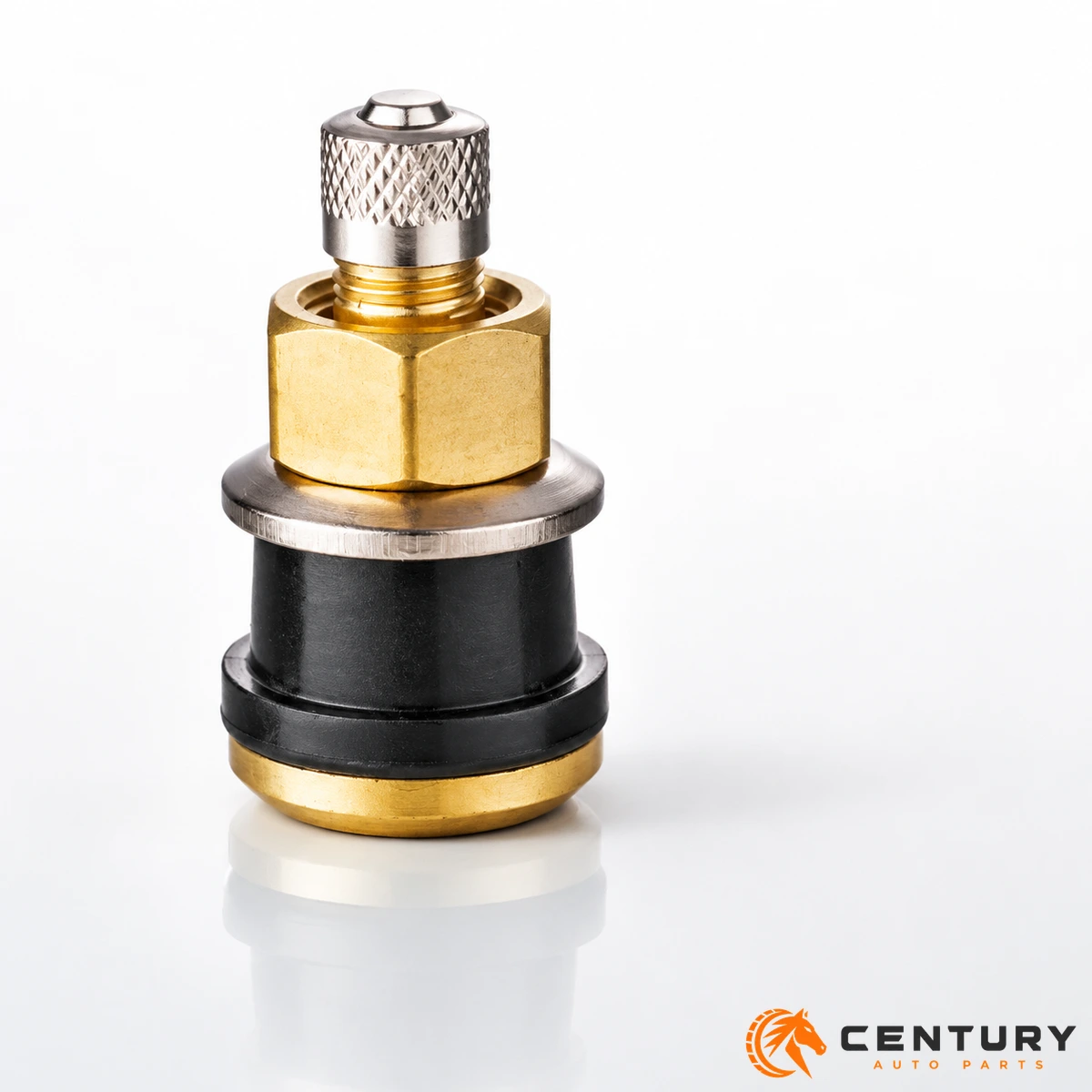

TR575 Clamp-In Valve
Straight brass clamp-in truck and bus tubeless valve, compact A=28.5mm, rim hole Φ15.9 (.625").

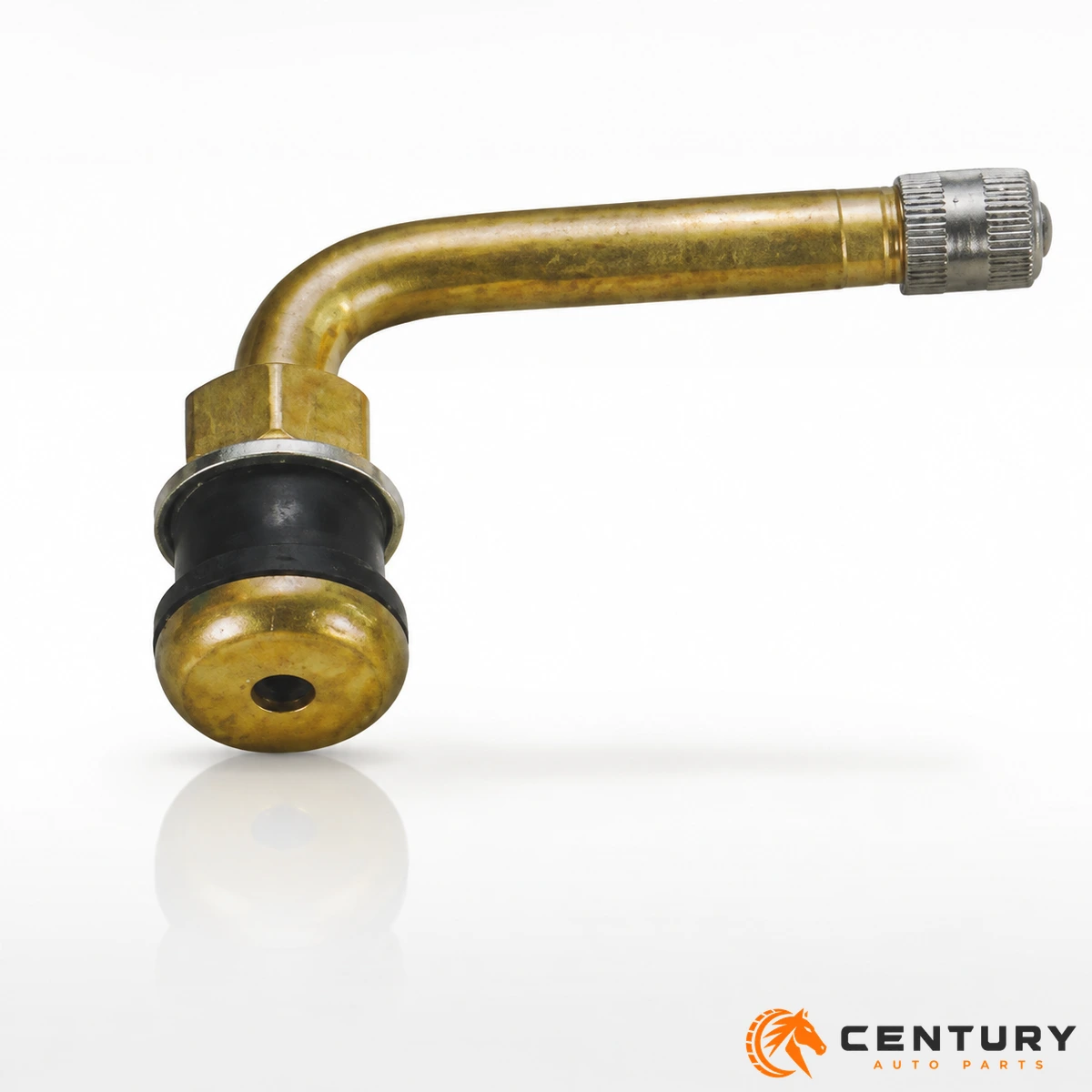

TR570C Clamp-In Valve
90° bent brass clamp-in truck and bus tubeless valve, A=33mm and B=51mm, rim hole Φ16 (.625").

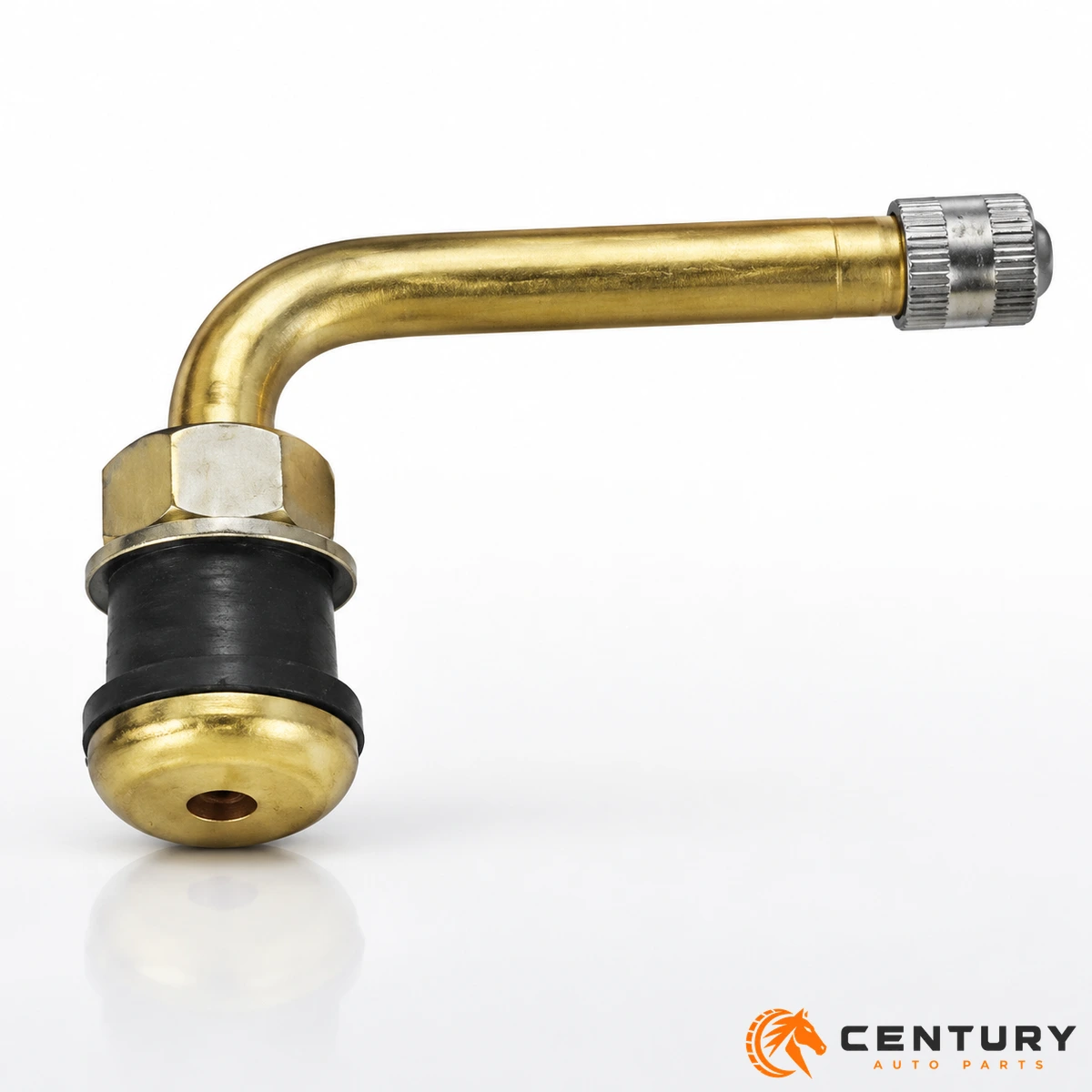

TR571C Clamp-In Valve
90° bent brass clamp-in truck and bus tubeless valve, A=34mm and B=62mm, rim hole Φ16 (.625").

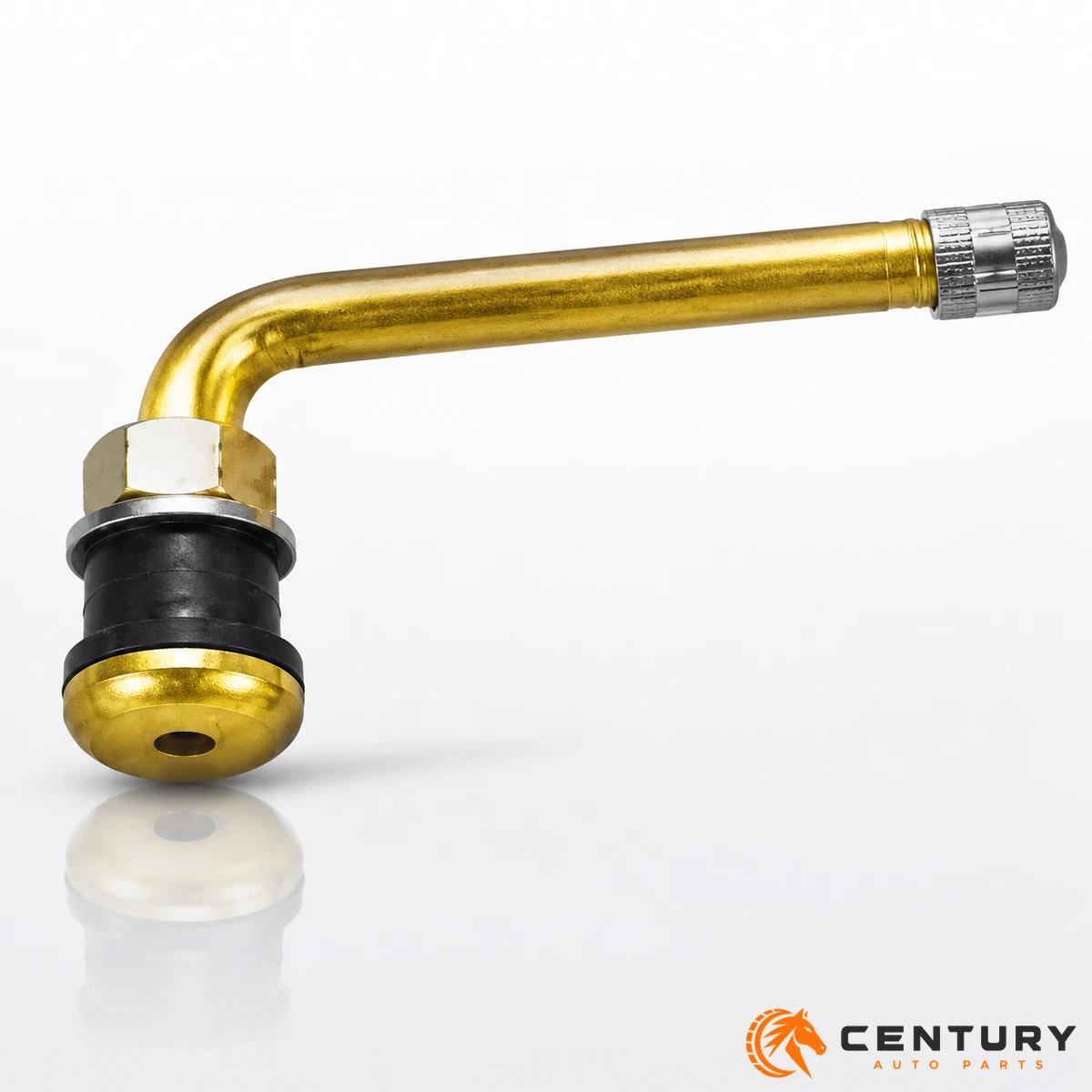

TR572C Clamp-In Valve
90° bent brass clamp-in truck and bus tubeless valve, A=34mm and B=61mm, rim hole Φ16 (.625").

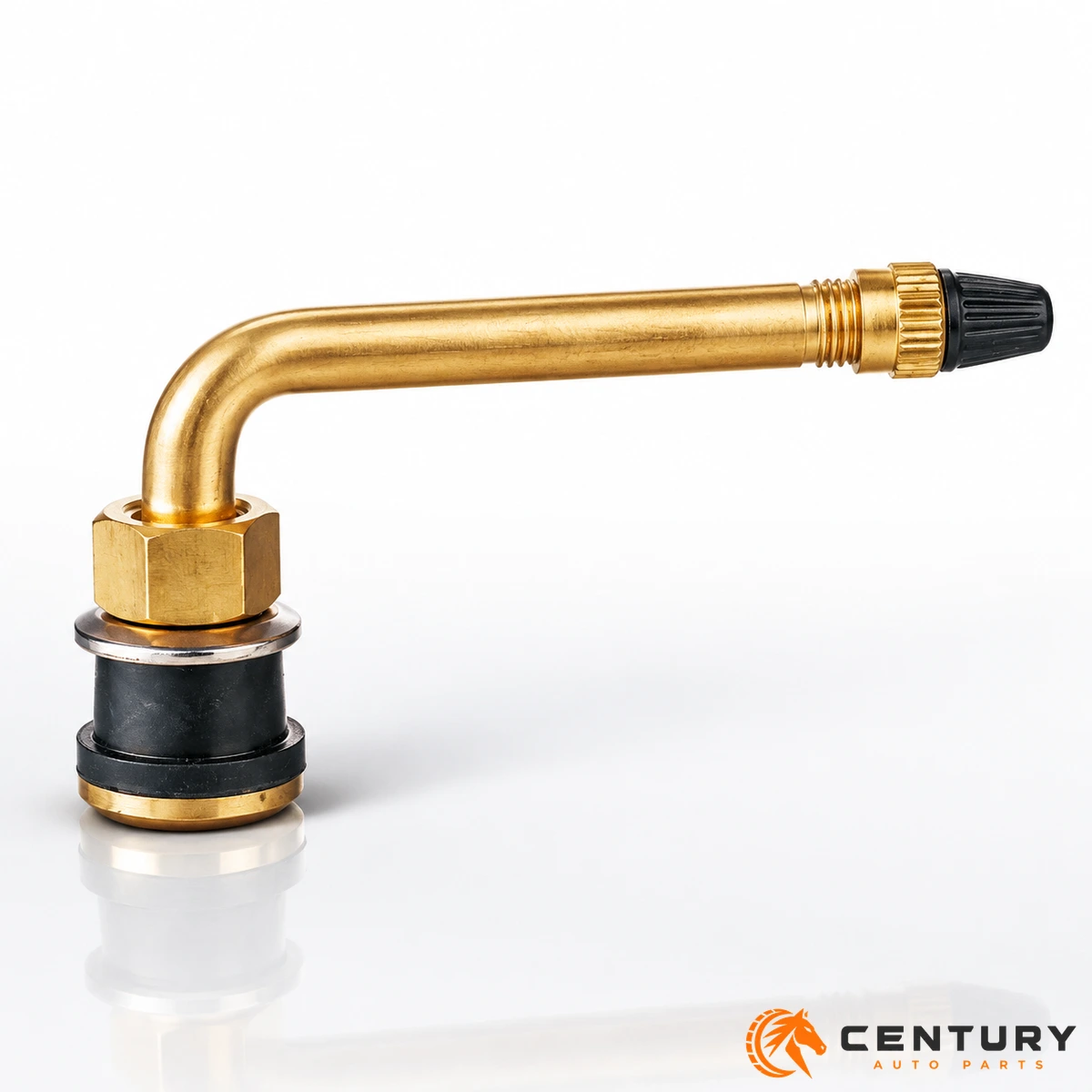

TR573C Clamp-In Valve
90° bent brass clamp-in truck and bus tubeless valve, A=34mm and B=77mm, rim hole Φ16 (.625").

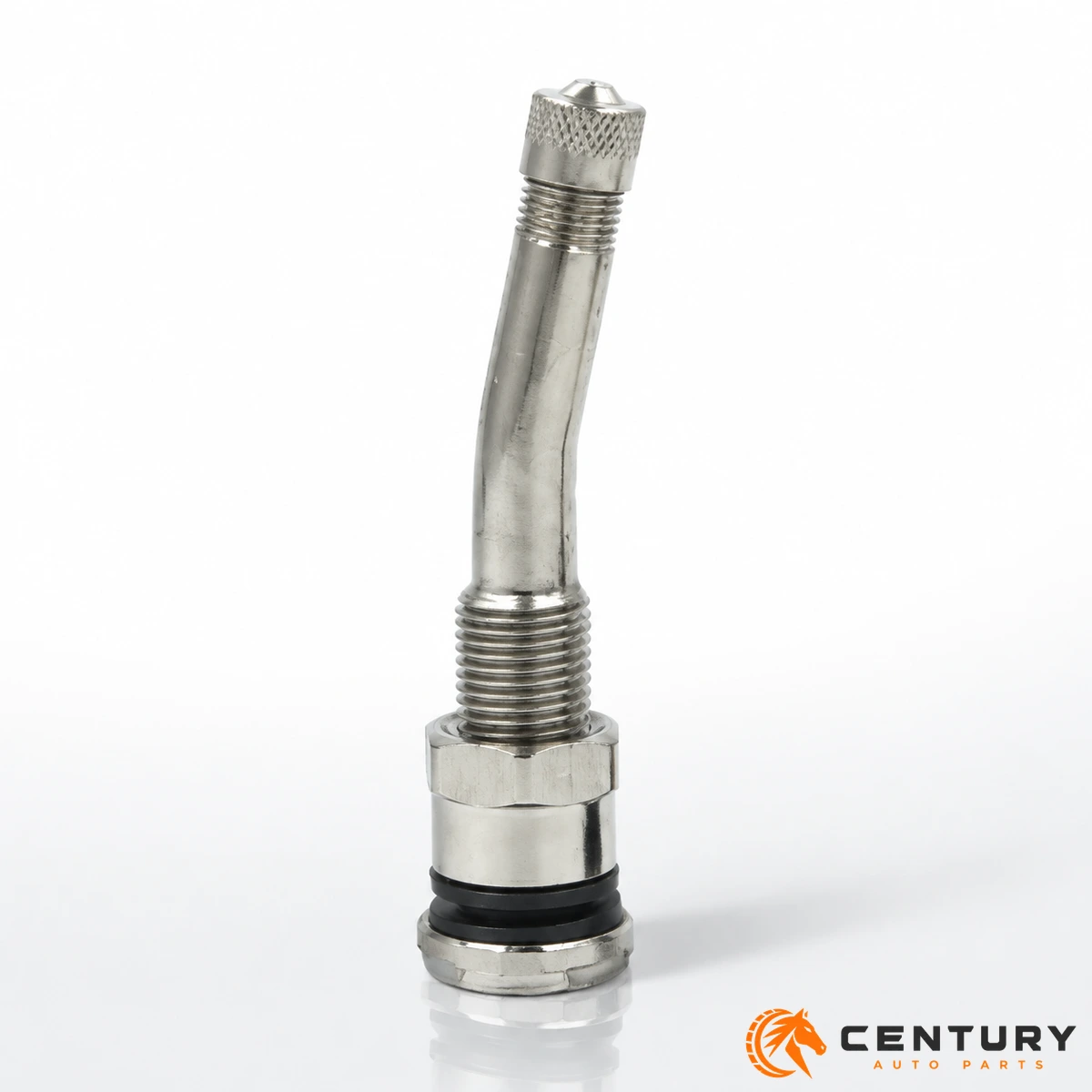

70MS-7 Clamp-In Valve
Nickel-plated clamp-in truck and bus tubeless valve with 7° bent stem, A=37mm and B=28mm, rim hole Φ9.7 (.390").

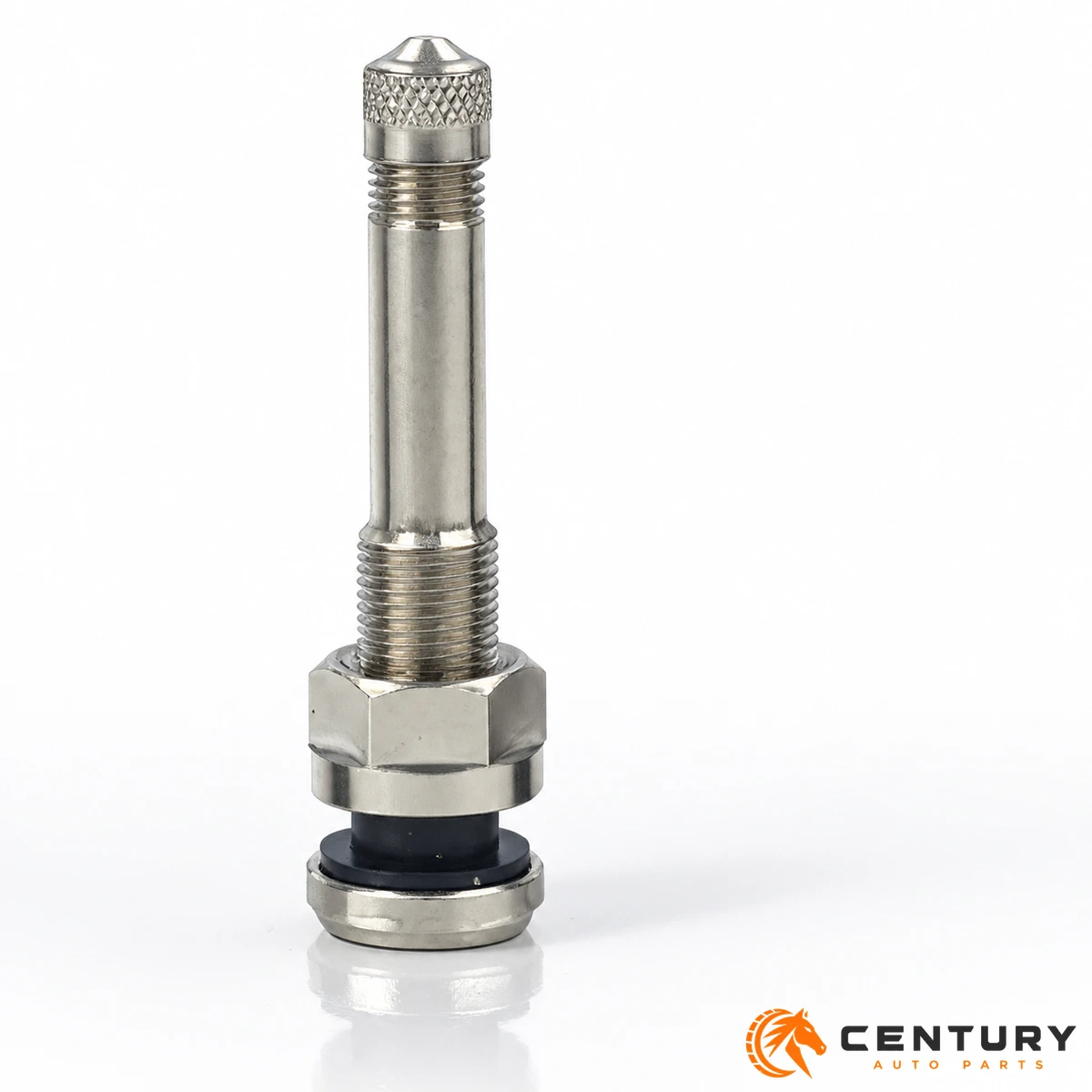

60MS Clamp-In Valve
Nickel-plated straight clamp-in truck and bus tubeless valve, A=60mm, rim hole Φ9.7 (.390").

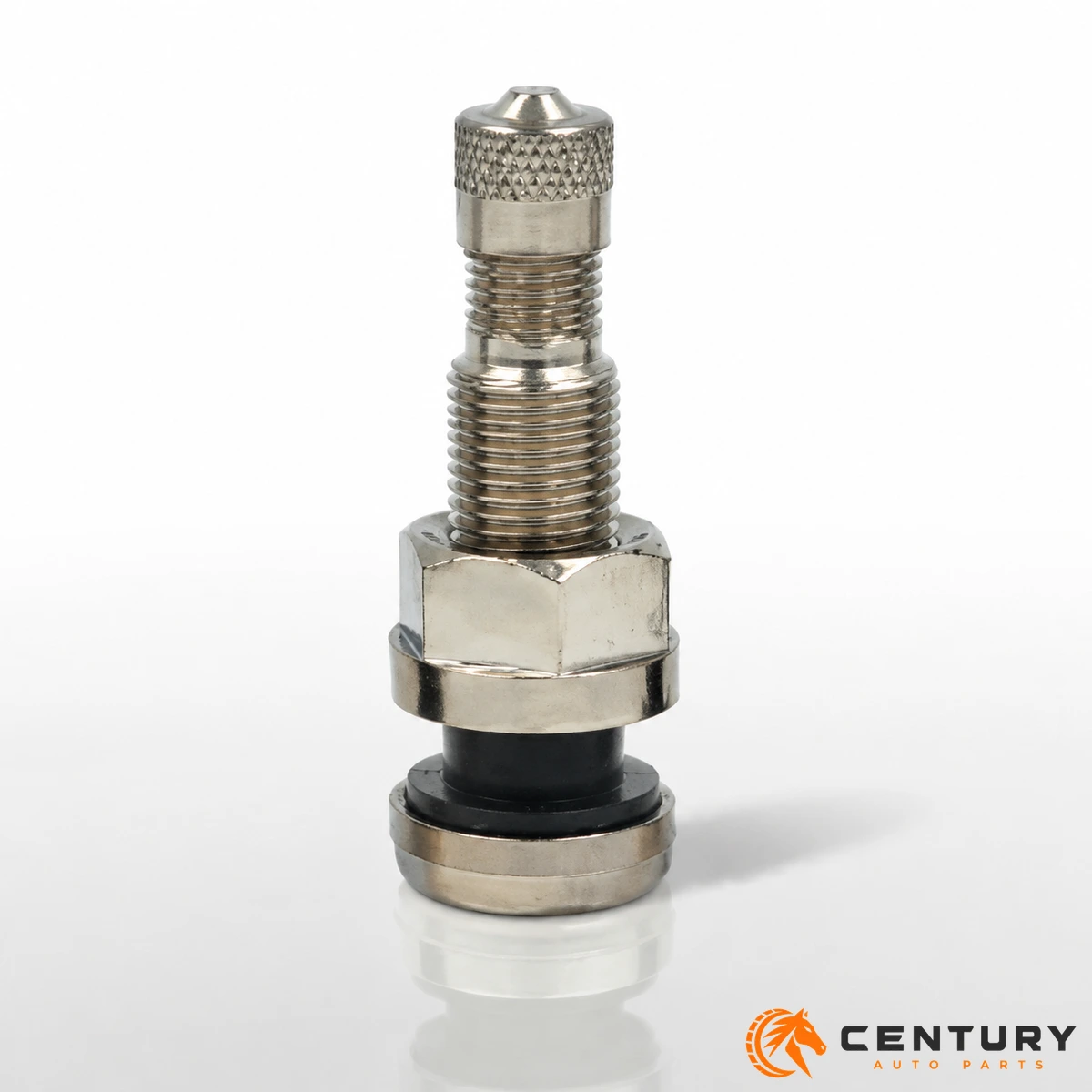

40MS Clamp-In Valve
Nickel-plated straight clamp-in truck and bus tubeless valve, A=40mm, rim hole Φ9.7 (.390").
Truck & Bus - Size Comparison Table
All models in this category with key dimensions. Click a model number for full details.
| Model | A (mm) | B (mm) | Bend Angle | Rim Hole |
|---|---|---|---|---|
| V3.12.1 | 40 | — | — | Φ15.7 (.625") |
| V3.14.2 | 45 | — | 147° | Φ15.7 (.625") |
| V3.18.4 | 51 | 37.5 | 138° | Φ20.5 (.812") |
| V3.18.2 | 81 | 24.5 | 146° | Φ20.5 (.812") |
| V3.18.1 | 64 | 24.5 | 146° | Φ20.5 (.812") |
| TR552 | 32 | — | — | Φ9.7 (.390") |
| TR553D | 35 | 25 | 60° | Φ9.7 (.390") |
| TR554D | 49 | 25 | 60° | Φ9.7 (.390") |
| TR555D | 66 | 25 | 60° | Φ9.7 (.390") |
| TR543 | 64 | — | — | Φ9.7 (.390") |
| TR545 | 94 | — | — | Φ9.7 (.390") |
| TR543D | 25 | 29 | 60° | Φ9.7 (.390") |
| TR545D | 25 | 64 | 60° | Φ9.7 (.390") |
| TR509 | — | — | — | Φ15.7 (.625") |
| TR510 | — | — | — | Φ15.7 (.625") |
| TR511 | — | — | — | Φ15.7 (.625") |
| V3-20-6 | 25 | 85 | 27° | Φ9.7 (.390") |
| V3-20-11 | 25 | 45 | 27° | Φ9.7 (.390") |
| V3-20-1 | 41 | — | — | Φ9.7 (.390") |
| V3-20-4 | 25 | 60 | 27° | Φ9.7 (.390") |
| V3-20-4 | 25 | 60 | 27° | Φ9.7 (.390") |
| 58MS | 25 | 28 | 45° | Φ9.7 (.390") |
| TR500 | 51 | — | — | Φ15.9 (.625") |
| TR501 | 38 | — | — | Φ15.9 (.625") |
| TR571 | 86 | — | — | Φ15.9 (.625") |
| TR572 | 95 | — | — | Φ15.9 (.625") |
| TR573 | 111 | — | — | Φ15.9 (.625") |
| TR575 | 28.5 | — | — | Φ15.9 (.625") |
| TR570C | 33 | 51 | 90° | Φ16 (.625") |
| TR571C | 34 | 62 | 90° | Φ16 (.625") |
| TR572C | 34 | 61 | 90° | Φ16 (.625") |
| TR573C | 34 | 77 | 90° | Φ16 (.625") |
| 70MS-7 | 37 | 28 | 7° | Φ9.7 (.390") |
| 60MS | 60 | — | — | Φ9.7 (.390") |
| 40MS | 40 | — | — | Φ9.7 (.390") |
