TR552 Clamp-In Valve

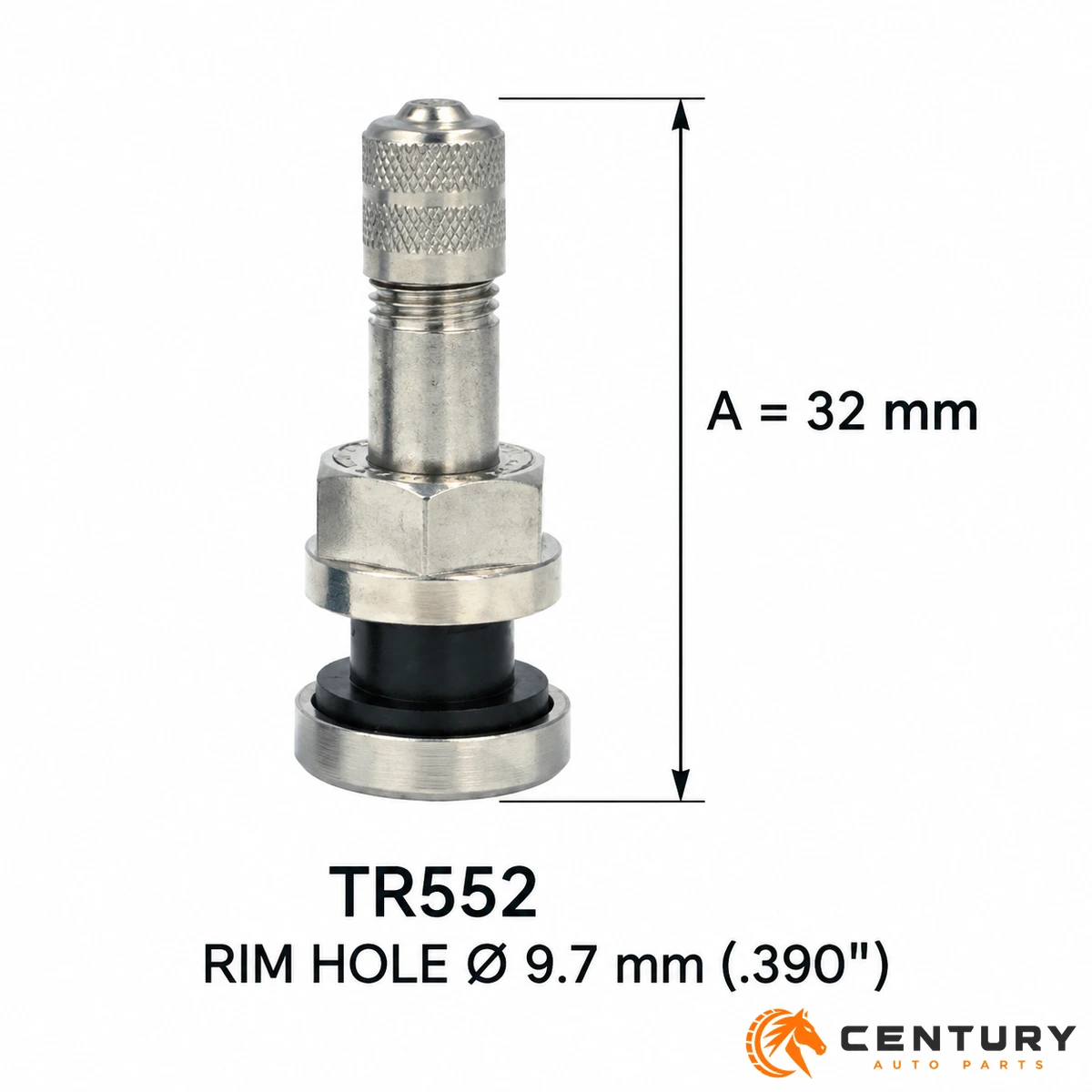

TR552 nickel-plated brass clamp-in truck valve stem, straight version, A=32mm, rim hole Φ9.7 (.390").
- Ni-plated brass clamp-in construction
- Straight stem, A=32mm
- Rim hole Φ9.7mm (.390")
- Core & cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
TR552 nickel-plated brass clamp-in tyre valve stem for trucks and buses, straight version with 32mm effective length, fitting the Φ9.7mm (.390") rim hole. Part of the TR552-TR557 series with straight and 45°/60°/75° bent options. Factory-direct with bulk and OEM/ODM options.
Specifications
| Model | A (mm) | B (mm) | β° | Rim Hole |
|---|---|---|---|---|
| TR552 | 32 | — | — | Φ9.7 (.390") |
| TR553 | 58.5 | — | — | Φ9.7 (.390") |
| TR553C | 35 | 23.6 | 45° | Φ9.7 (.390") |
| TR553D | 35 | 25 | 60° | Φ9.7 (.390") |
| TR553E | 35 | 25 | 75° | Φ9.7 (.390") |
| TR554 | 73 | — | — | Φ9.7 (.390") |
| TR554C | 49 | 25 | 45° | Φ9.7 (.390") |
| TR554D | 49 | 25 | 60° | Φ9.7 (.390") |
| TR555 | 89 | — | — | Φ9.7 (.390") |
| TR555D | 66 | 25 | 60° | Φ9.7 (.390") |
| TR555E | 66 | 25 | 75° | Φ9.7 (.390") |
| TR556 | 108.5 | — | — | Φ9.7 (.390") |
| TR556D | 85 | 25 | 60° | Φ9.7 (.390") |
| TR556E | 85 | 25 | 75° | Φ9.7 (.390") |
| TR557 | 119.5 | — | — | Φ9.7 (.390") |
| TR557D | 96 | 25 | 60° | Φ9.7 (.390") |
