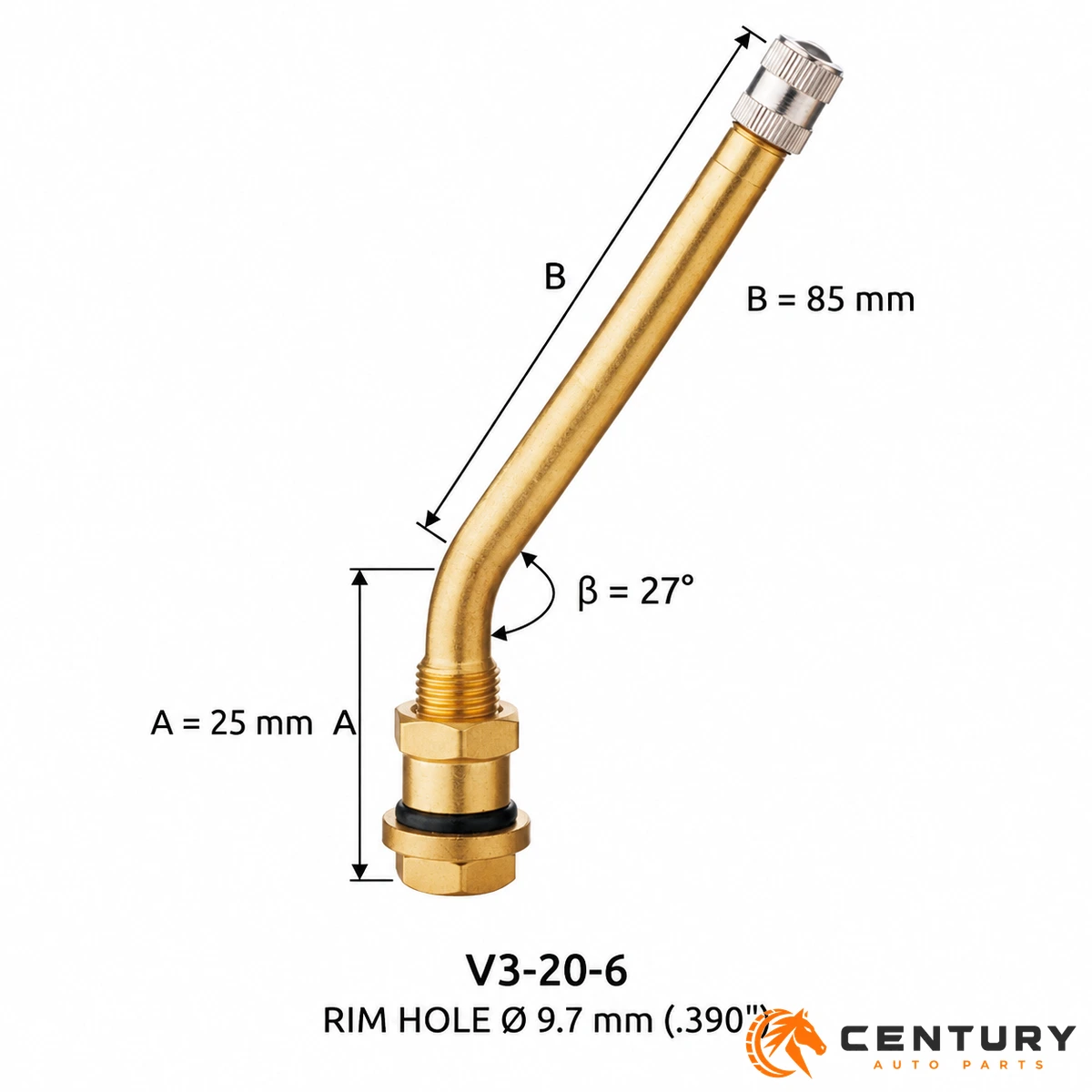

V3-20-6 Clamp-In Valve
Bent brass clamp-in truck and bus tubeless valve, 27° bend, A=25mm and B=85mm, rim hole Φ9.7 (.390").
- Heavy-duty brass construction
- 27° bent stem for easy access
- A=25mm, B=85mm
- Rim hole Φ9.7mm (.390")
- Hex nut & rubber grommet seal
- Core & cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
The V3-20-6 brass clamp-in tubeless tyre valve is designed for truck and bus steel rims, with a 27° bent stem for easy inflation access. A=25mm lower section and B=85mm stem length, fitting the Φ9.7mm (.390") rim hole. Heavy-duty brass construction with hex nut and rubber grommet, supplied complete with core and cap. With an 85 mm stem, the V3-20-6 is the long-reach variant in the V3-20 series, clearing deeper rim contours and wheel covers. Factory-direct with bulk and OEM/ODM options.
Specifications
| ETRTO No. | A (mm) | B (mm) | C (mm) | β° | Rim Hole |
|---|---|---|---|---|---|
| V3-20-1 | 41 | — | — | — | Φ9.7 (.390") |
| V3-20-2 | 30 | 60 | — | 17° | Φ9.7 (.390") |
| V3-20-3 | — | 87 | — | — | Φ9.7 (.390") |
| V3-20-4 | 25 | 60 | — | 27° | Φ9.7 (.390") |
| V3-20-4 (TPMS) | 25 | 60 | — | 27° | Φ9.7 (.390") |
| V3-20-5 | 25 | 40 | — | 27° | Φ9.7 (.390") |
| V3-20-6 | 25 | 85 | — | 27° | Φ9.7 (.390") |
| V3-20-7 | 25 | 50 | — | 27° | Φ9.7 (.390") |
| V3-20-8 | 29 | 85 | — | 12° | Φ9.7 (.390") |
| V3-20-9 | 45 | 52 | — | 12° | Φ9.7 (.390") |
| V3-20-10 | 50 | 25 | — | 28° | Φ9.7 (.390") |
| V3-20-11 | 25 | 45 | 25 | 27° | Φ9.7 (.390") |
| V3-20-12 | 25 | 70 | — | 27° | Φ9.7 (.390") |
| 58MS | 25 | 28 | — | 45° | Φ9.7 (.390") |
| 150MS-27 | 25 | 120 | — | 27° | Φ9.7 (.390") |
