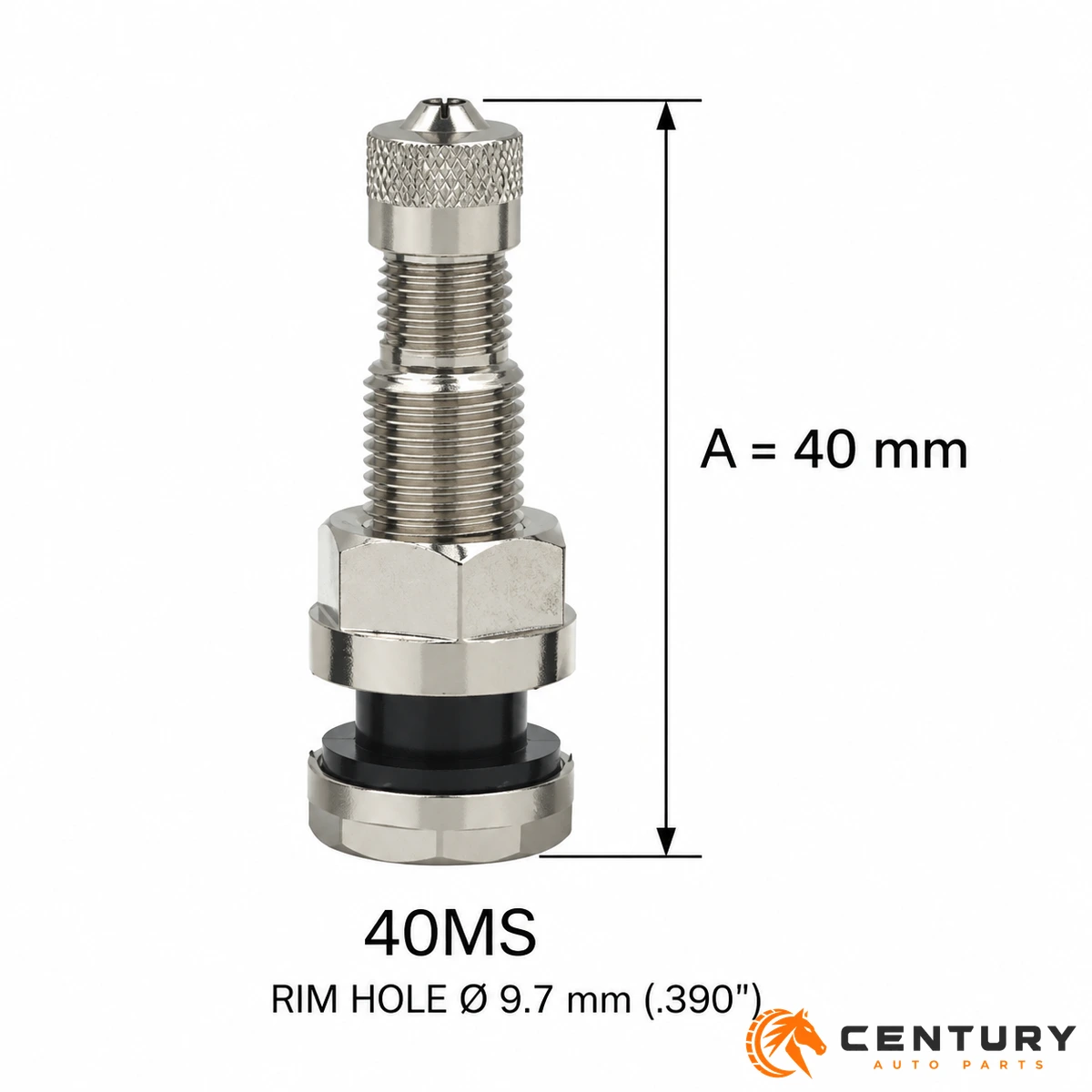

40MS Clamp-In Valve
Nickel-plated straight clamp-in truck and bus tubeless valve, A=40mm, rim hole Φ9.7 (.390").
- Nickel-plated brass construction
- Straight stem, A=40mm
- Rim hole Φ9.7mm (.390")
- Hex nut & rubber grommet seal
- Core & metal cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
The 40MS nickel-plated brass clamp-in tubeless tyre valve is designed for truck and bus steel rims, with an overall A dimension of 40mm, fitting the Φ9.7mm (.390") rim hole. Corrosion-resistant nickel-plated finish with hex nut and rubber grommet base, supplied complete with core and metal cap. The shorter 40 mm body of the 40MS fits rims with limited valve boss depth. Factory-direct with bulk and OEM/ODM options.
