V3-20-4 Clamp-In Valve

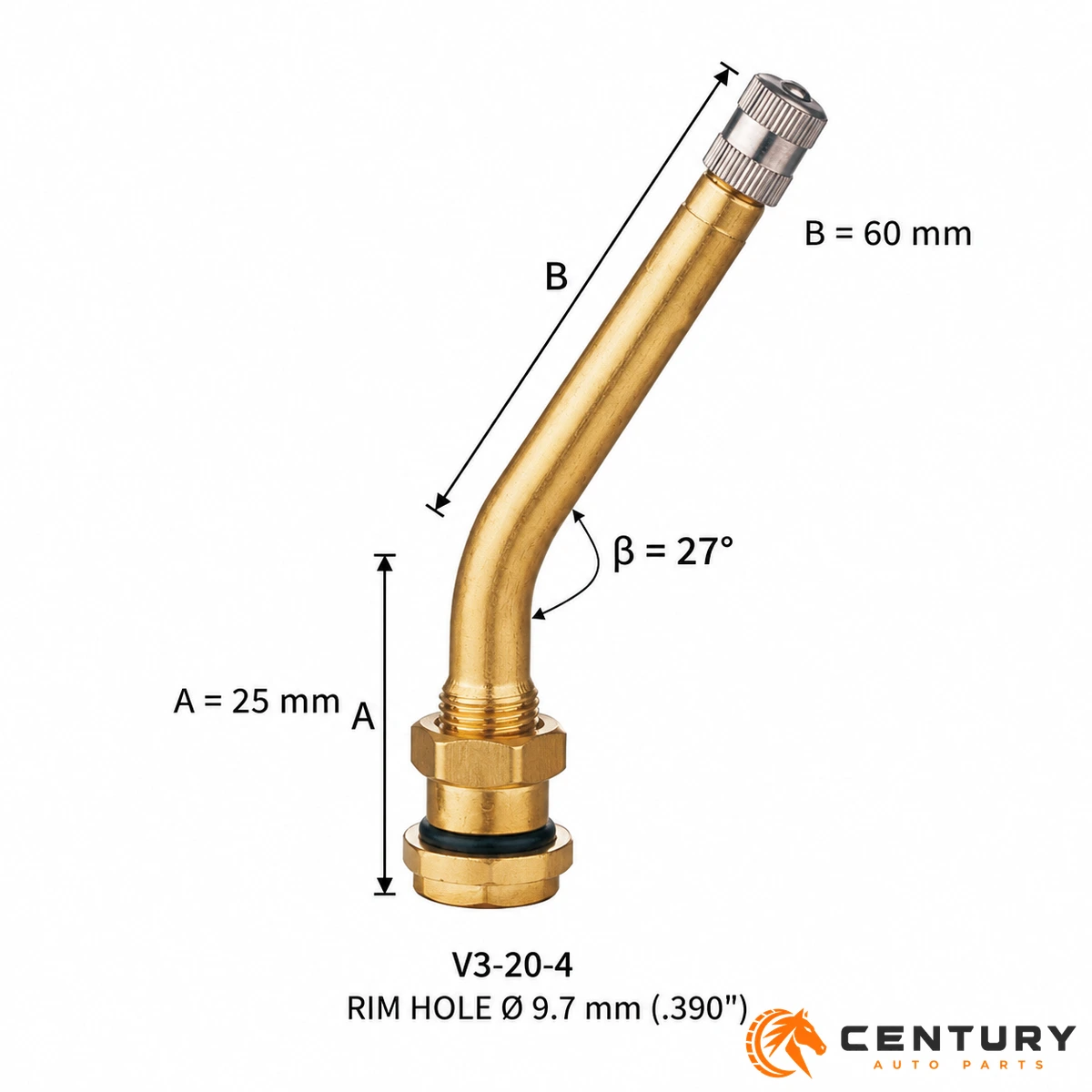

Bent brass clamp-in truck and bus tubeless valve, 27° bend, A=25mm and B=60mm, rim hole Φ9.7 (.390").

Heavy-duty brass construction
27° bent stem for easy access
A=25mm, B=60mm
Rim hole Φ9.7mm (.390")
Hex nut & rubber grommet seal
Core & cap included
Factory direct, OEM/ODM & bulk supply

Negotiable

Packaging

Custom / Bulk

Lead Time

7-20 days

Product Description

The V3-20-4 brass clamp-in tubeless tyre valve is designed for truck and bus steel rims, with a 27° bent stem for easy inflation access. A=25mm lower section and B=60mm stem length, fitting the Φ9.7mm (.390") rim hole. Heavy-duty brass construction with hex nut and rubber grommet, supplied complete with core and cap. Its 60 mm stem makes the V3-20-4 the compact option in the V3-20 series for standard truck and bus steel wheels. Factory-direct with bulk and OEM/ODM options.

Specifications

ETRTO No.	A (mm)	B (mm)	C (mm)	β°	Rim Hole
V3-20-1	41	—	—	—	Φ9.7 (.390")
V3-20-2	30	60	—	17°	Φ9.7 (.390")
V3-20-3	—	87	—	—	Φ9.7 (.390")
V3-20-4	25	60	—	27°	Φ9.7 (.390")
V3-20-4 (TPMS)	25	60	—	27°	Φ9.7 (.390")
V3-20-5	25	40	—	27°	Φ9.7 (.390")
V3-20-6	25	85	—	27°	Φ9.7 (.390")
V3-20-7	25	50	—	27°	Φ9.7 (.390")
V3-20-8	29	85	—	12°	Φ9.7 (.390")
V3-20-9	45	52	—	12°	Φ9.7 (.390")
V3-20-10	50	25	—	28°	Φ9.7 (.390")
V3-20-11	25	45	25	27°	Φ9.7 (.390")
V3-20-12	25	70	—	27°	Φ9.7 (.390")
58MS	25	28	—	45°	Φ9.7 (.390")
150MS-27	25	120	—	27°	Φ9.7 (.390")
