Passenger Car & Light Truck
Rubber snap-in and brass clamp-in tyre valves for passenger cars and light trucks: TR412-TR438 snap-in series, TR600HP-TR802HP high-pressure valves, TR416/TR525/VS metal clamp-in valves and PVR153 valve stems.
- Rubber snap-in valves for passenger cars and light trucks
- TR412-TR438 snap-in series, 11.5mm / .453" and 15.9mm / .625" rim holes
- TR600HP-TR802HP high-pressure snap-in and TR416/TR525/VS clamp-in metal valves
- PVR153 valve stems and brass 9002# core and cap included
PVR153-3.2 Valve Stem
PVR153-3.2 nickel-plated brass bent tubeless valve stem, A=80mm, rim hole Φ11.5 (.453").
PVR153-2.7 Valve Stem
PVR153-2.7 nickel-plated brass bent tubeless valve stem, A=70mm, rim hole Φ11.5 (.453").
PVR153-2.3 Valve Stem
PVR153-2.3 nickel-plated brass bent tubeless valve stem, A=60mm, rim hole Φ11.5 (.453").
TR412 Snap-In Valve
Rubber snap-in tubeless valve TR412 for passenger cars. 11.5mm rim hole, A=22mm, B=34mm, core 9002#, max 65psi/4.5bar.
TR413 Snap-In Valve
Rubber snap-in tubeless valve TR413 for passenger cars. 11.5mm rim hole, A=32mm, B=42mm, core 9002#, max 65psi/4.5bar.
TR414 Snap-In Tubeless Valve
Rubber snap-in tubeless valve TR414, the most common passenger car valve. 11.5mm rim hole, A=38mm, B=48mm, core 9002#, max 65psi/4.5bar.
TR414L Snap-In Valve
Long-version rubber snap-in valve TR414L. 11.5mm rim hole, A=46mm, B=56.5mm, core 9002#, max 65psi/4.5bar.
TR415 Snap-In Valve
Rubber snap-in tubeless valve TR415 for larger rim holes. 15.9mm rim hole, A=32mm, B=42mm, core 9002#, max 65psi/4.5bar.
TR418 Snap-In Valve
Long rubber snap-in valve TR418 for passenger cars and light trucks. 11.5mm rim hole, A=51mm, B=62mm, core 9002#, max 65psi/4.5bar.

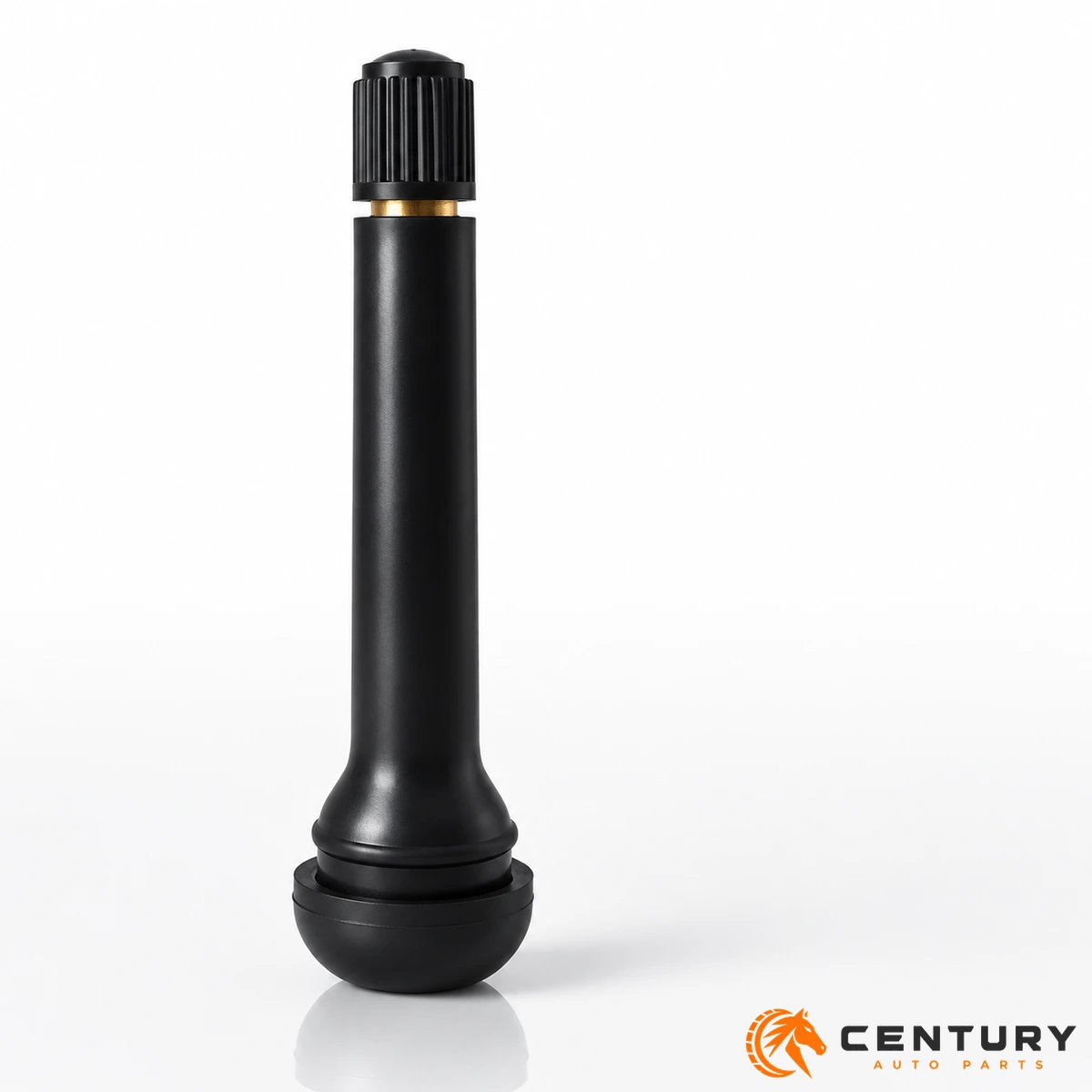

TR423 Snap-In Valve
Extra-long rubber snap-in valve TR423. 11.5mm rim hole, A=63mm, B=74mm, core 9002#, max 65psi/4.5bar.

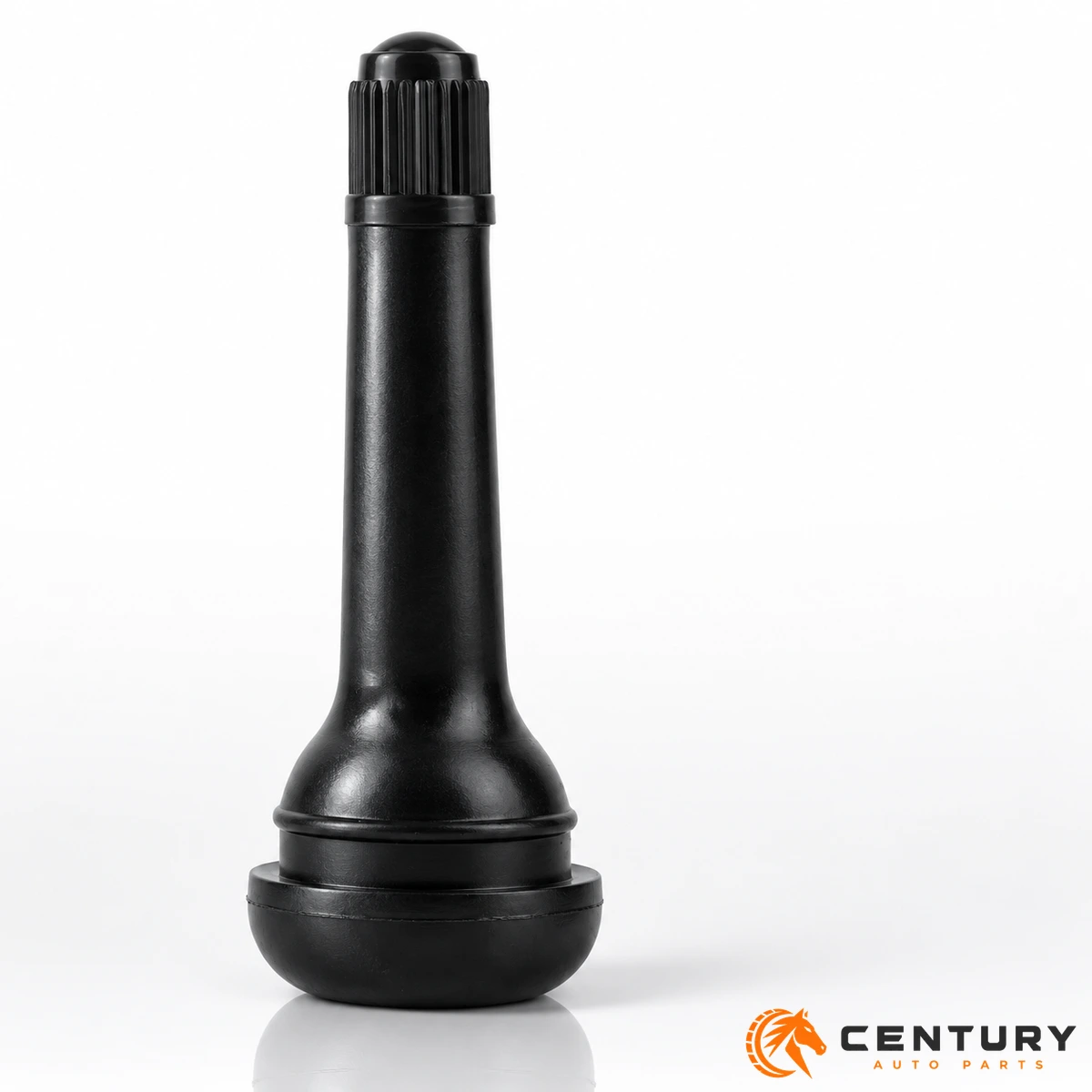

TR425 Snap-In Valve
Long rubber snap-in valve TR425 for larger rim holes. 15.9mm rim hole, A=51mm, B=62mm, core 9002#, max 65psi/4.5bar.

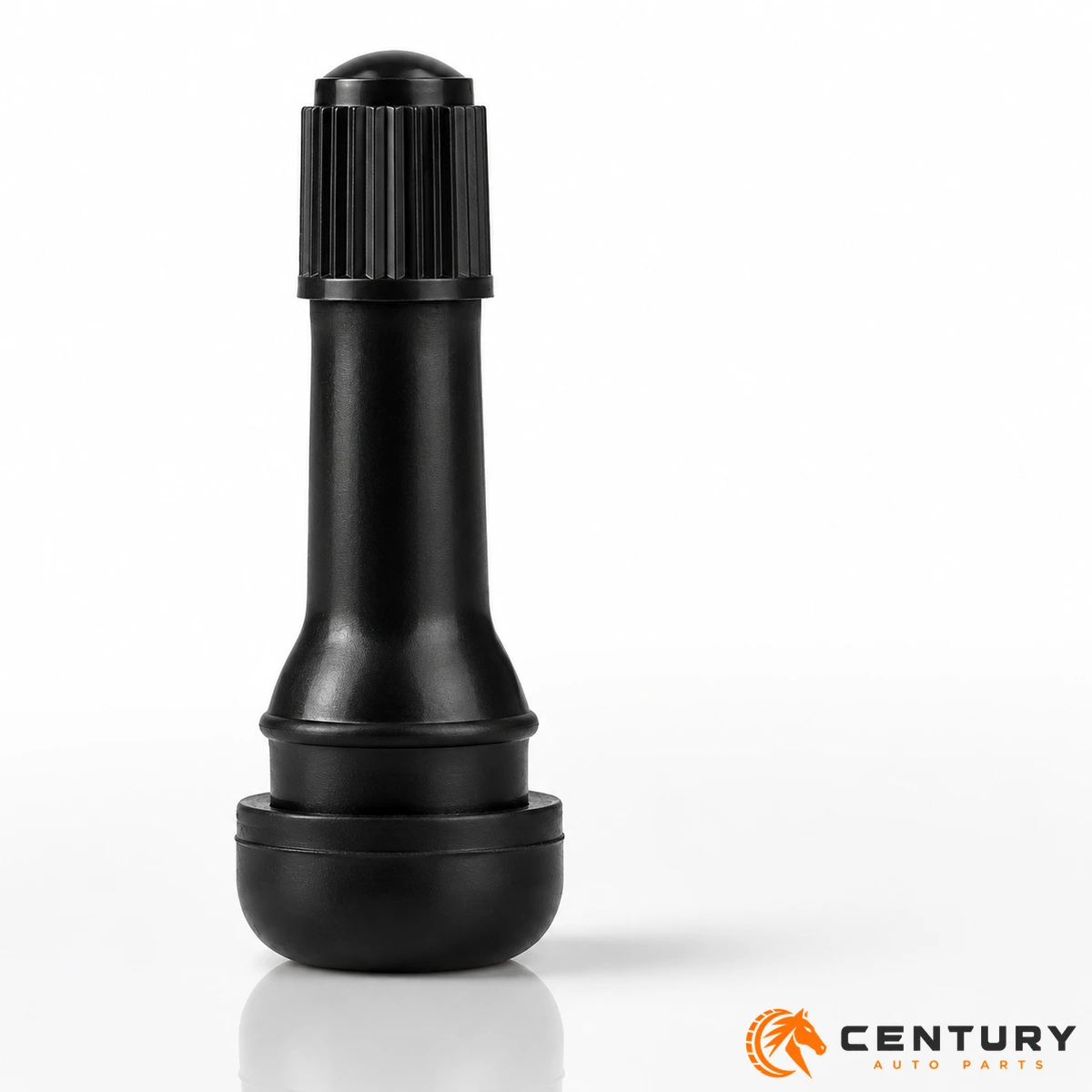

TR438 Snap-In Valve
Rubber snap-in valve TR438 for small rim holes. 8.8mm rim hole, A=40.5mm, B=31mm, core 9002#, max 65psi/4.5bar.

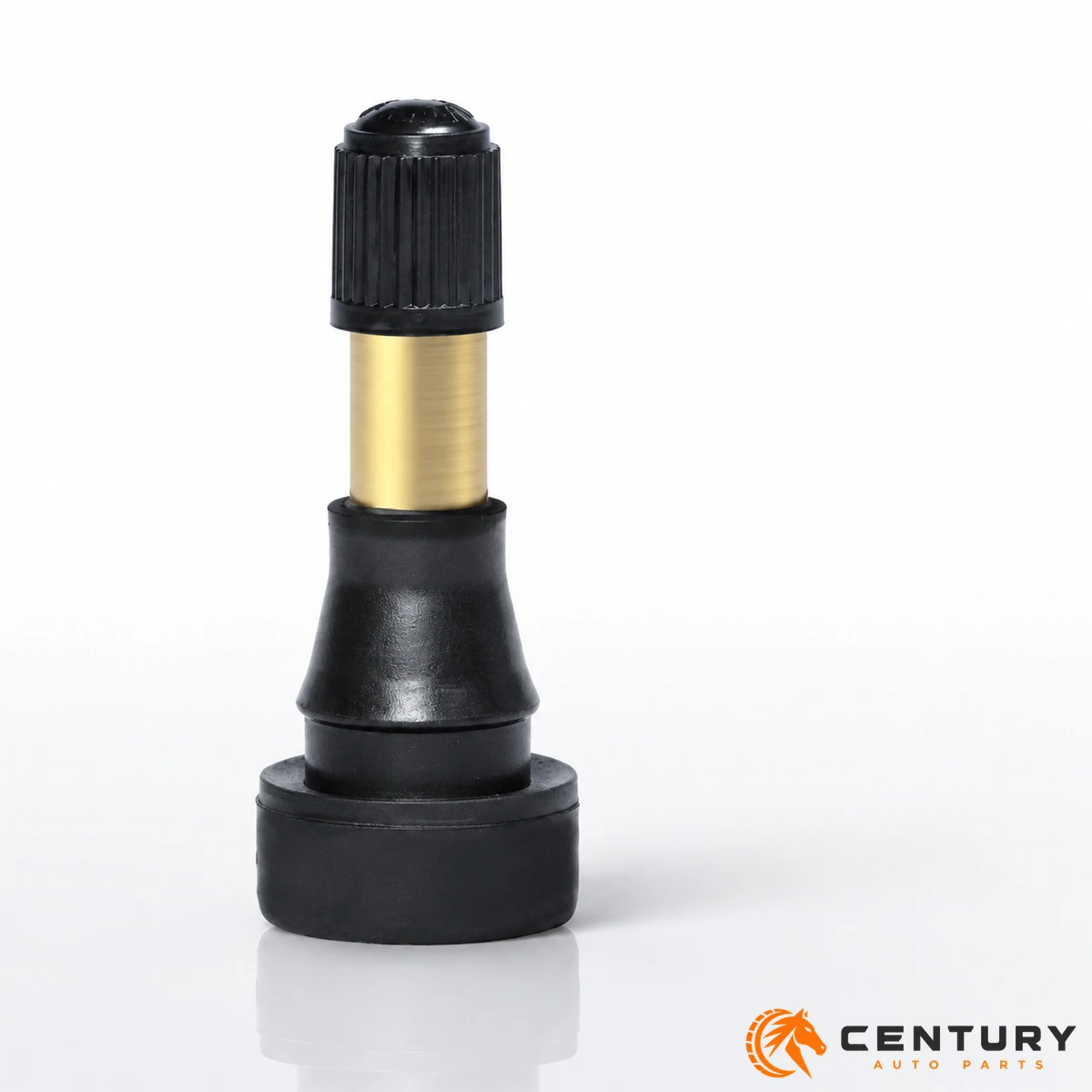

TR600HP High Pressure Snap-In Valve
High-pressure rubber snap-in valve TR600HP with brass sleeve. 11.5mm rim hole, A=32mm, B=44mm.

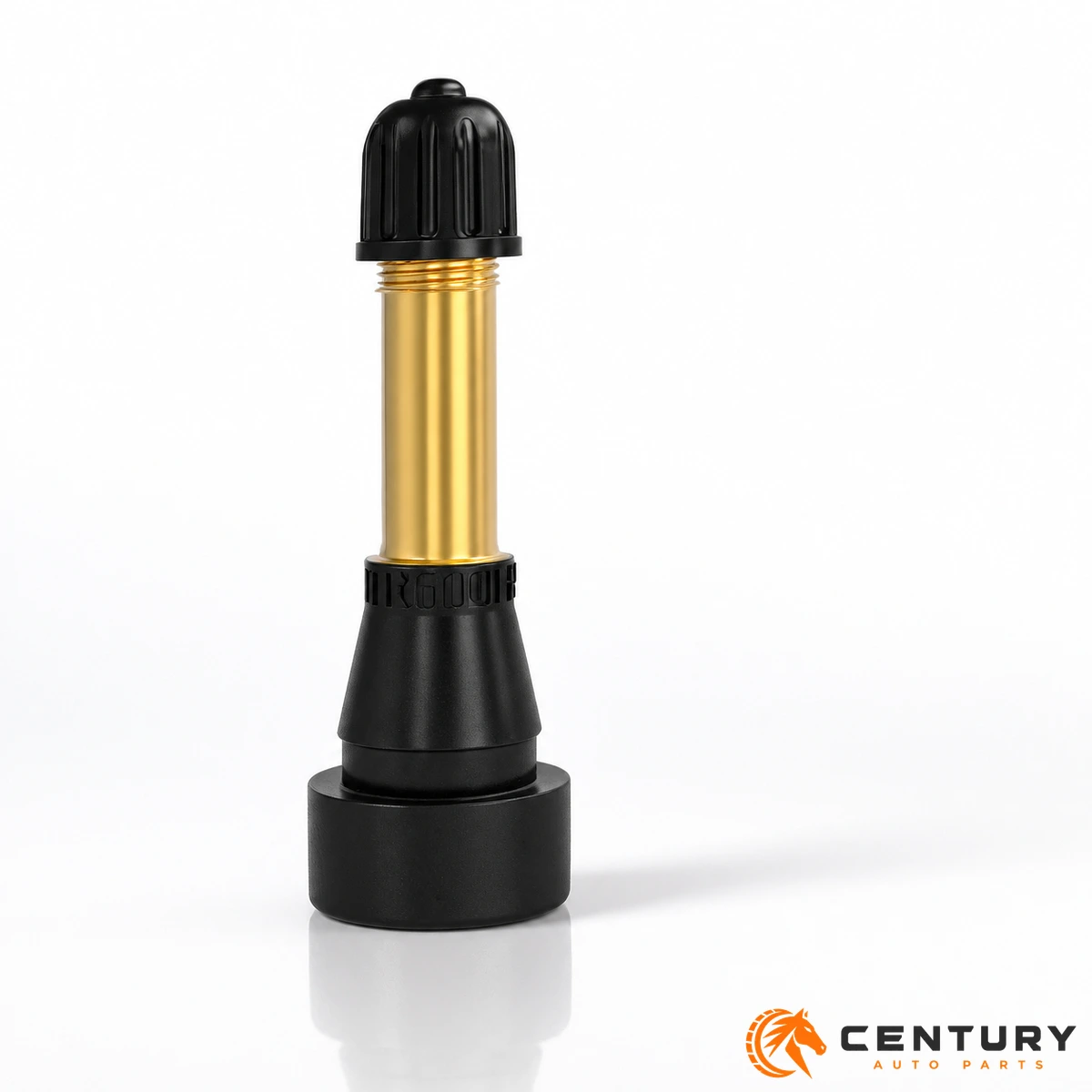

TR602HP High Pressure Snap-In Valve
Long high-pressure rubber snap-in valve TR602HP with brass sleeve. 11.5mm rim hole, A=51mm, B=63mm.

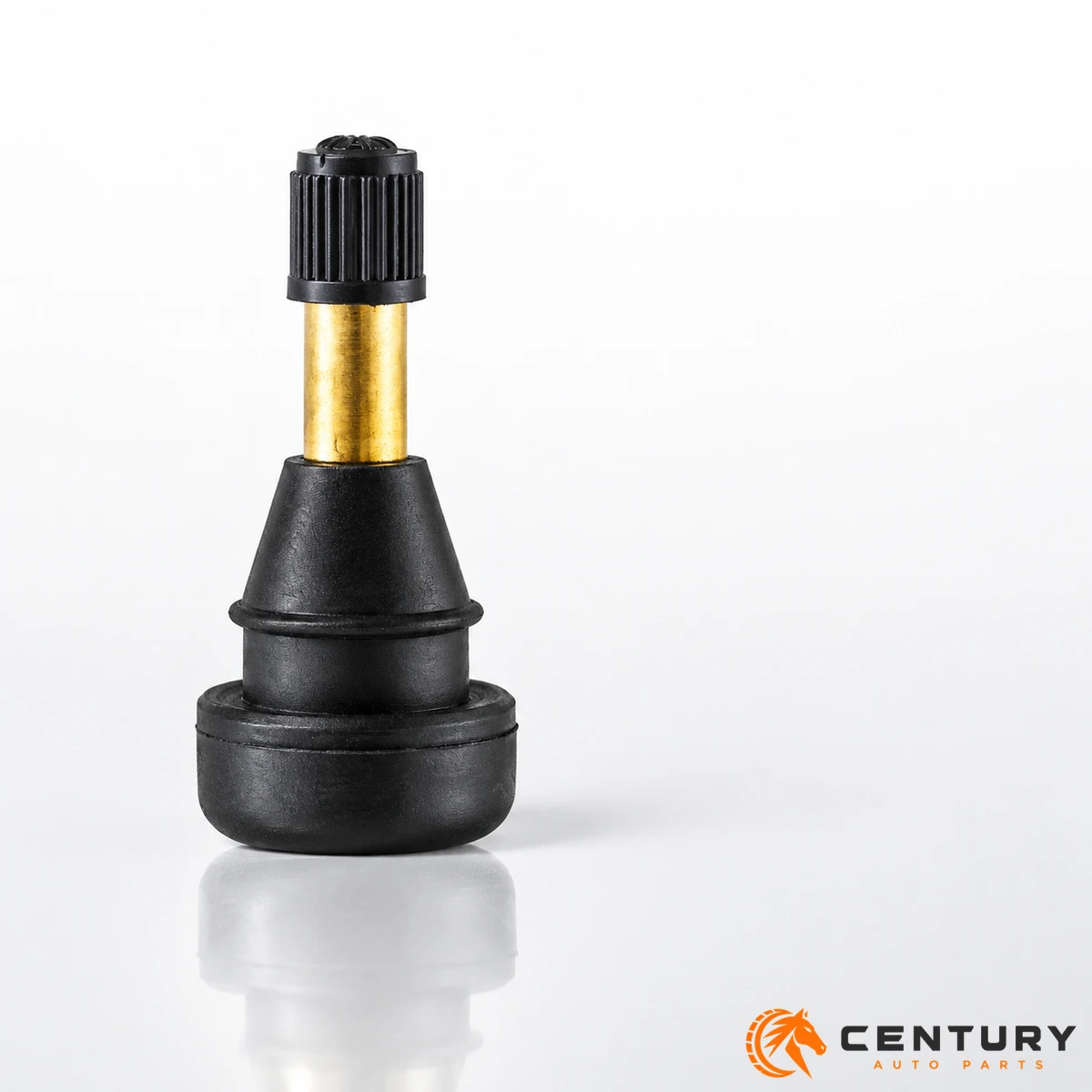

TR801HP High Pressure Snap-In Valve
High-pressure rubber snap-in valve TR801HP with brass sleeve. 15.9mm rim hole, A=33mm, B=48mm.

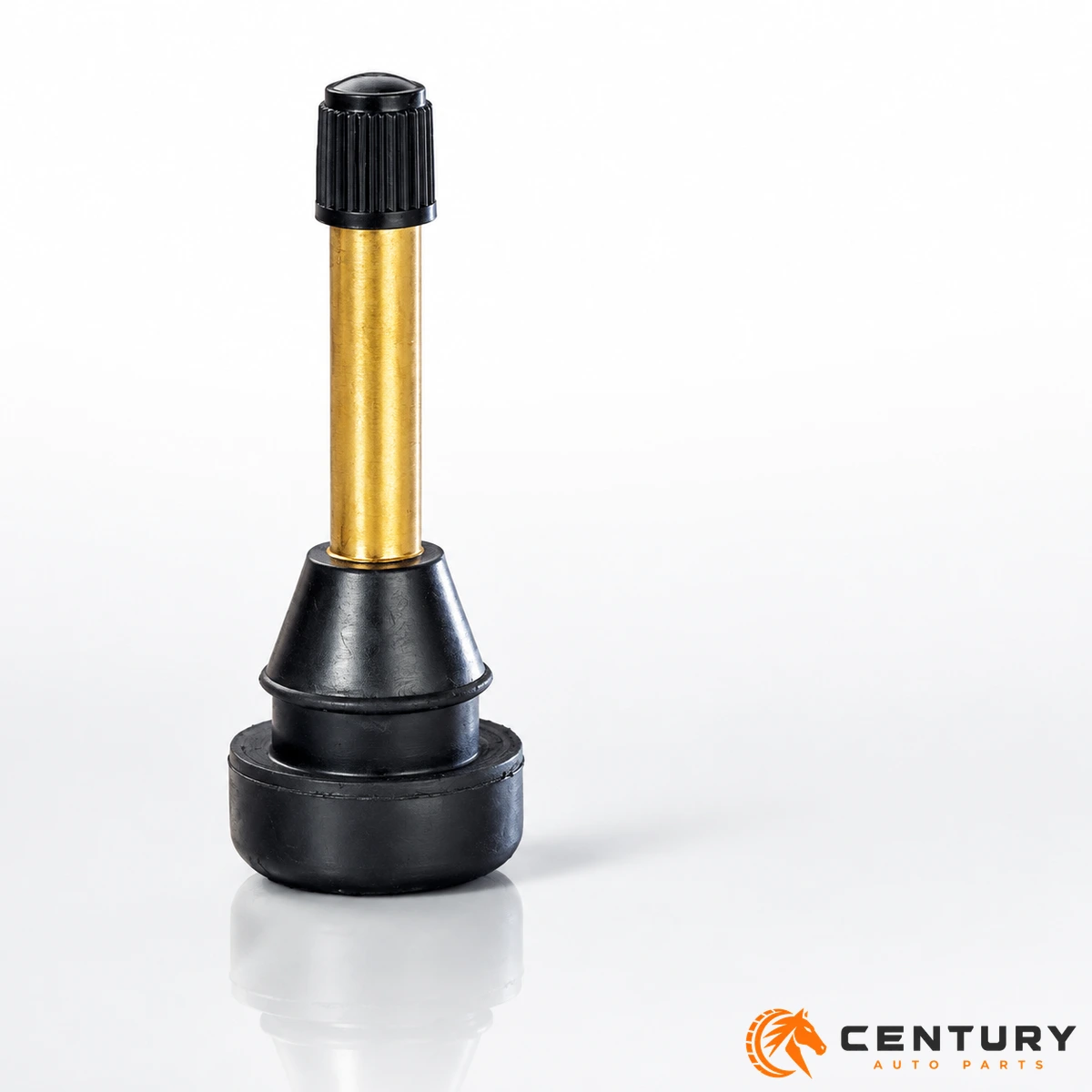

TR802HP High Pressure Snap-In Valve
Long high-pressure rubber snap-in valve TR802HP with brass sleeve. 15.9mm rim hole, A=51mm, B=66mm.

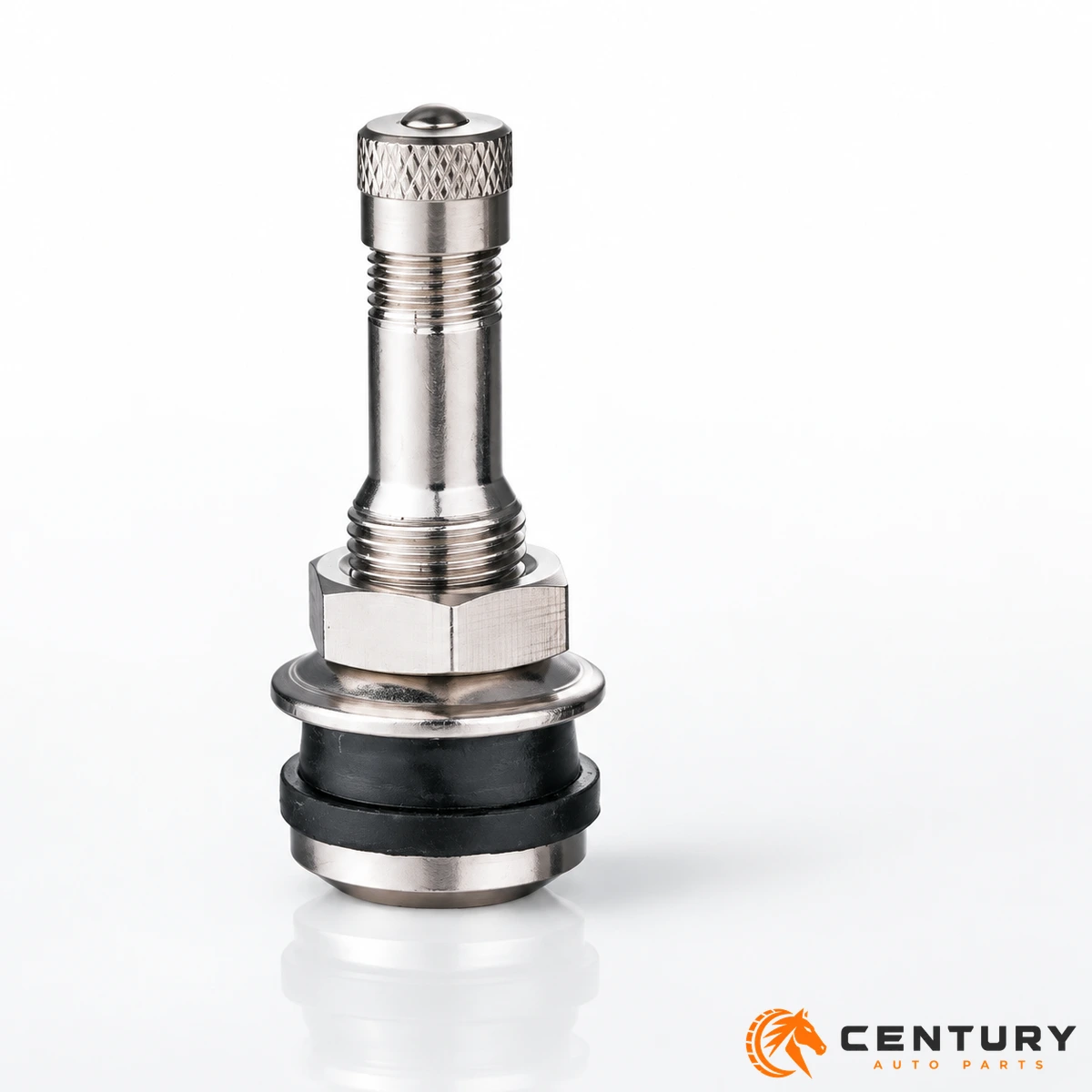

TR416 Clamp-In Valve
Metal clamp-in valve stem TR416 for passenger cars and light trucks, rigid bolt-in design with sealing grommet.

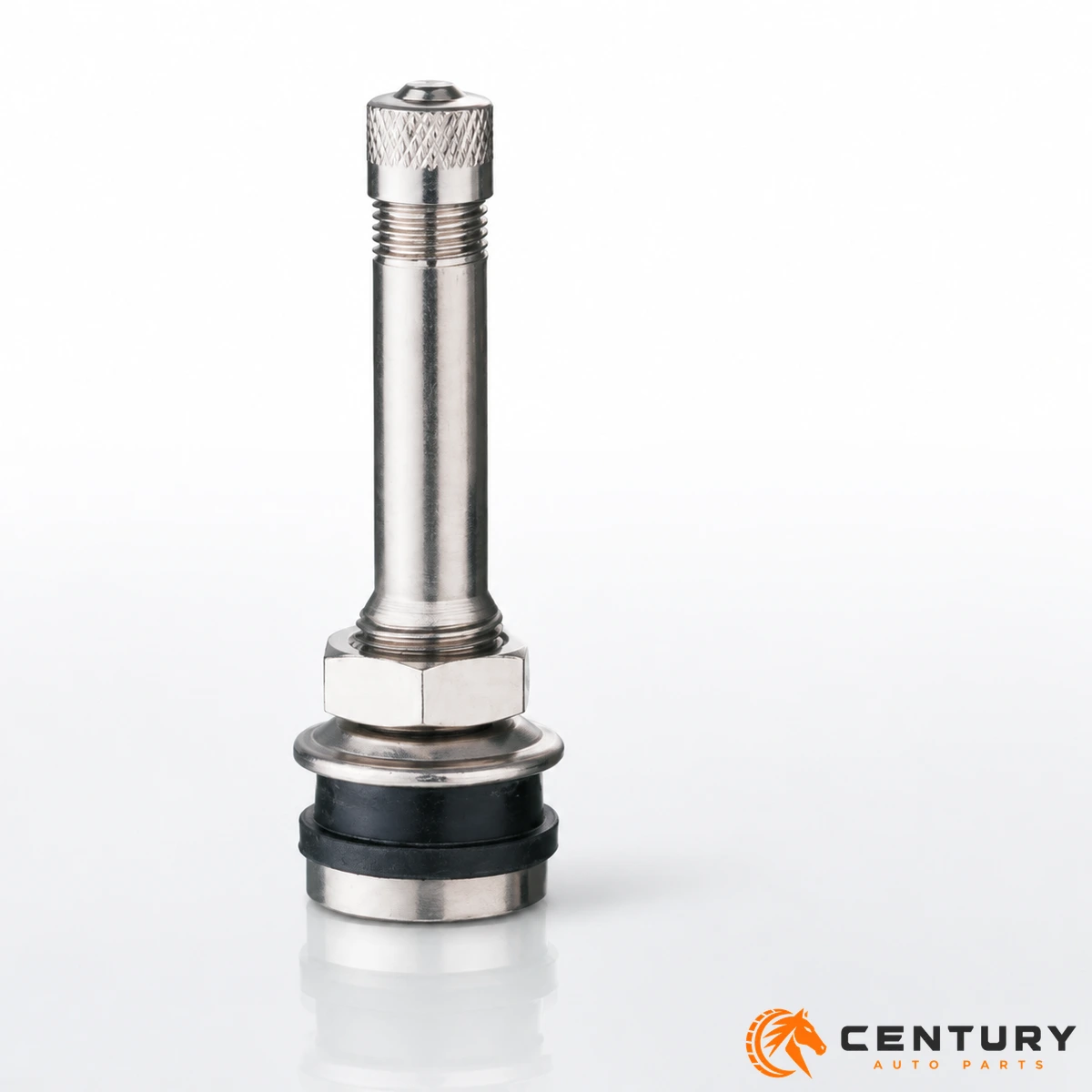

TR416L Clamp-In Valve
Long metal clamp-in valve stem TR416L for light trucks and deep-section wheels.

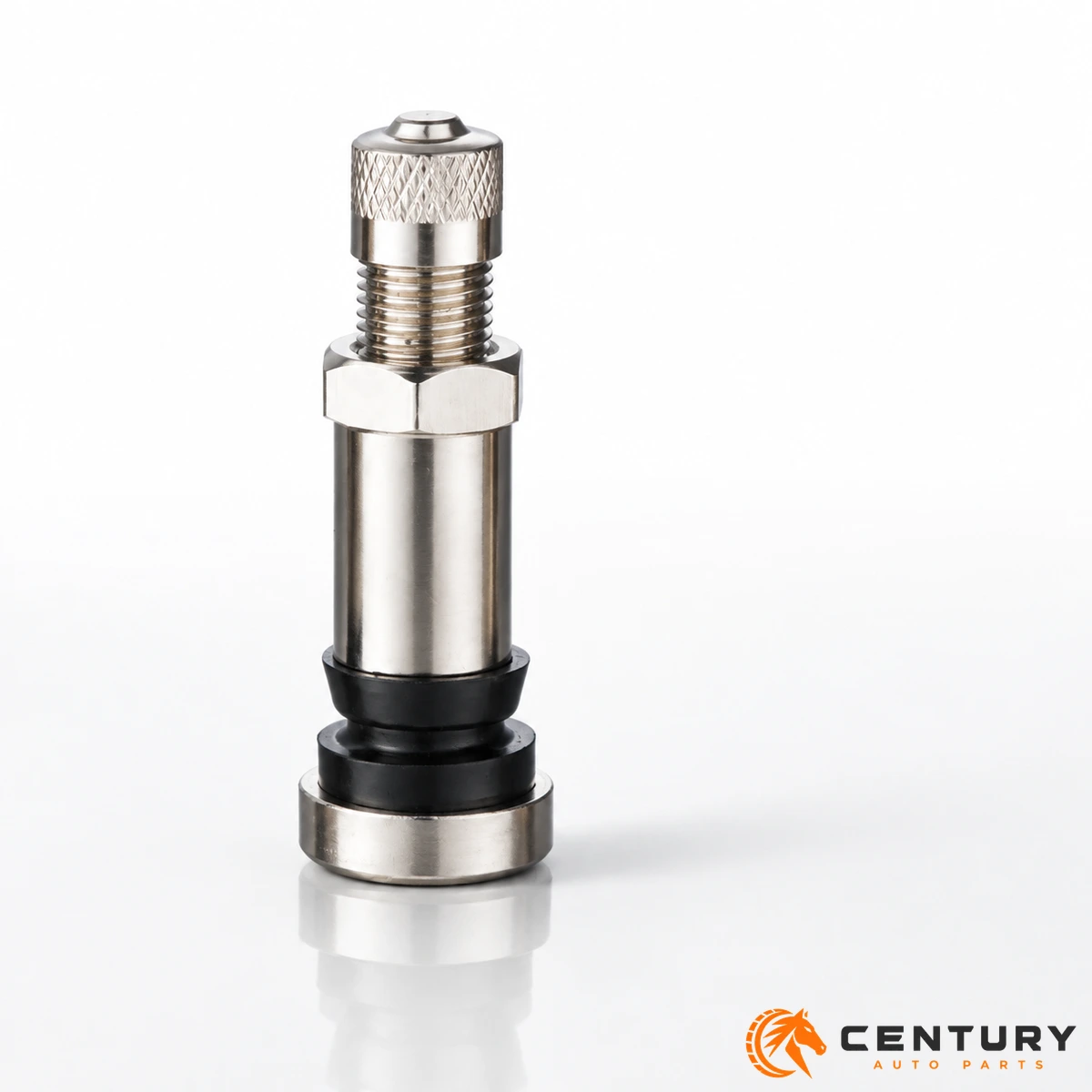

TR416SS Clamp-In Valve
Extra-short metal clamp-in valve stem TR416SS for compact passenger car wheels.

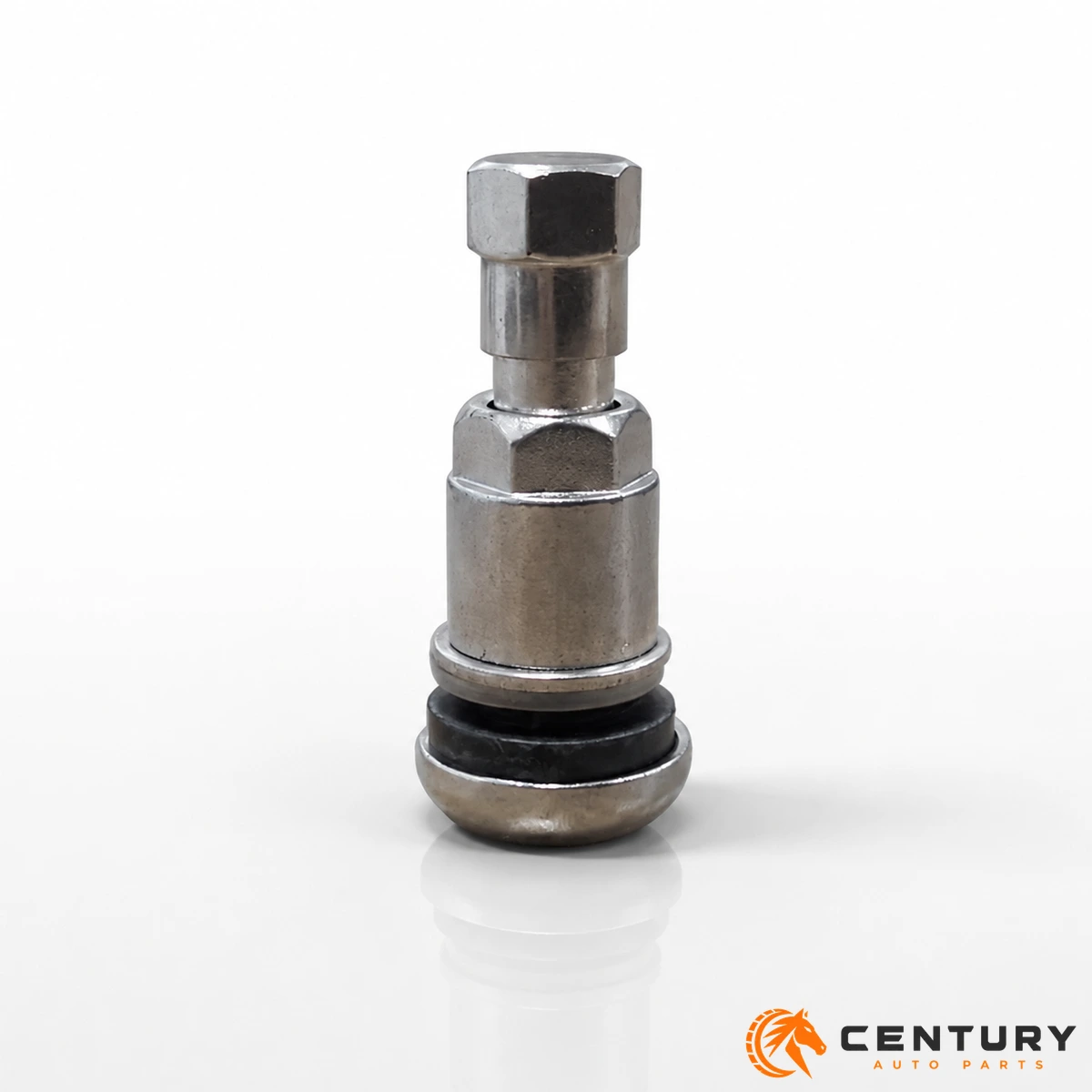

TR525 Valve Stem
Metal clamp-in valve stem TR525 for passenger cars and light trucks, rigid bolt-in design.

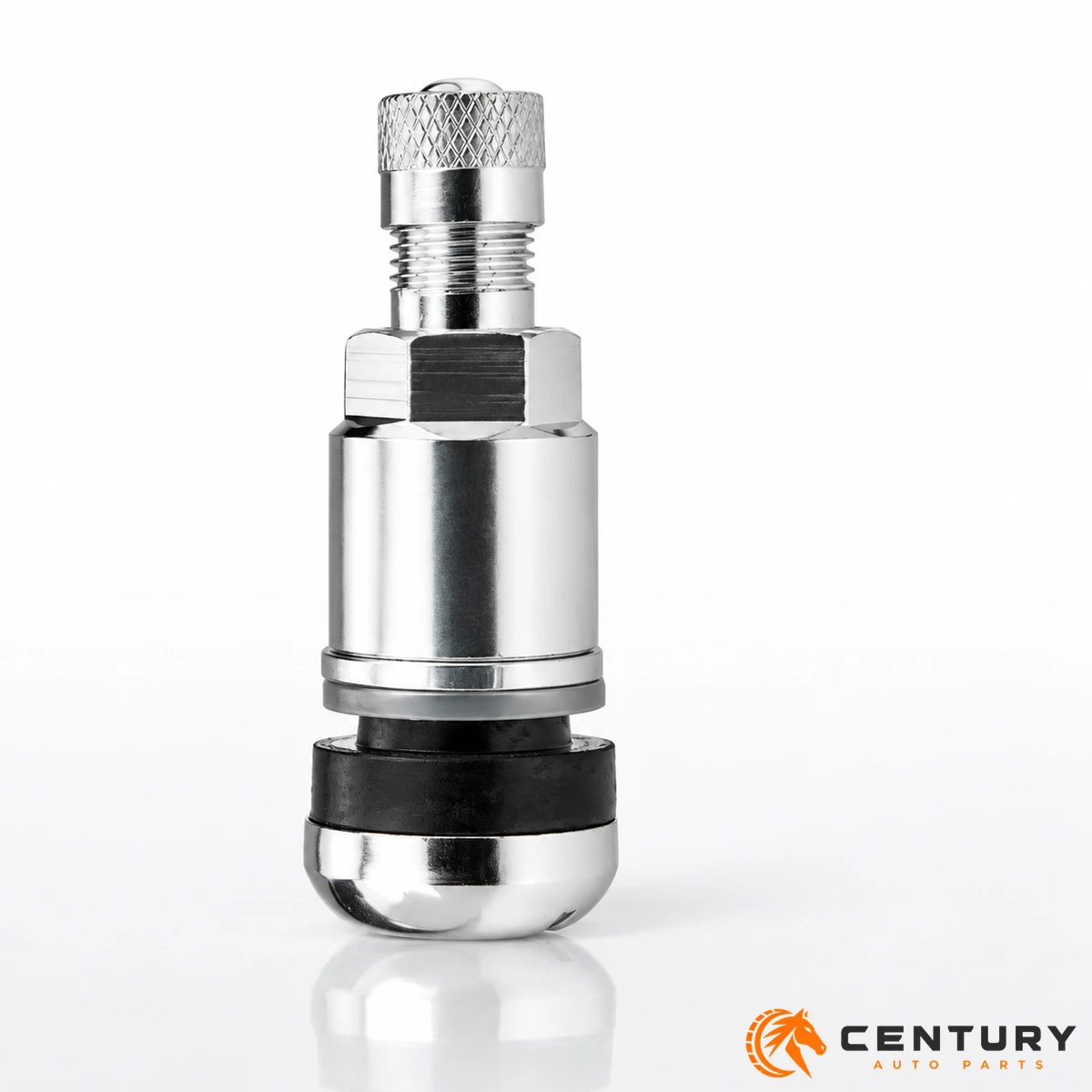

MS525AL Valve Stem
Aluminum clamp-in valve stem MS525AL, long version for passenger cars and light trucks.

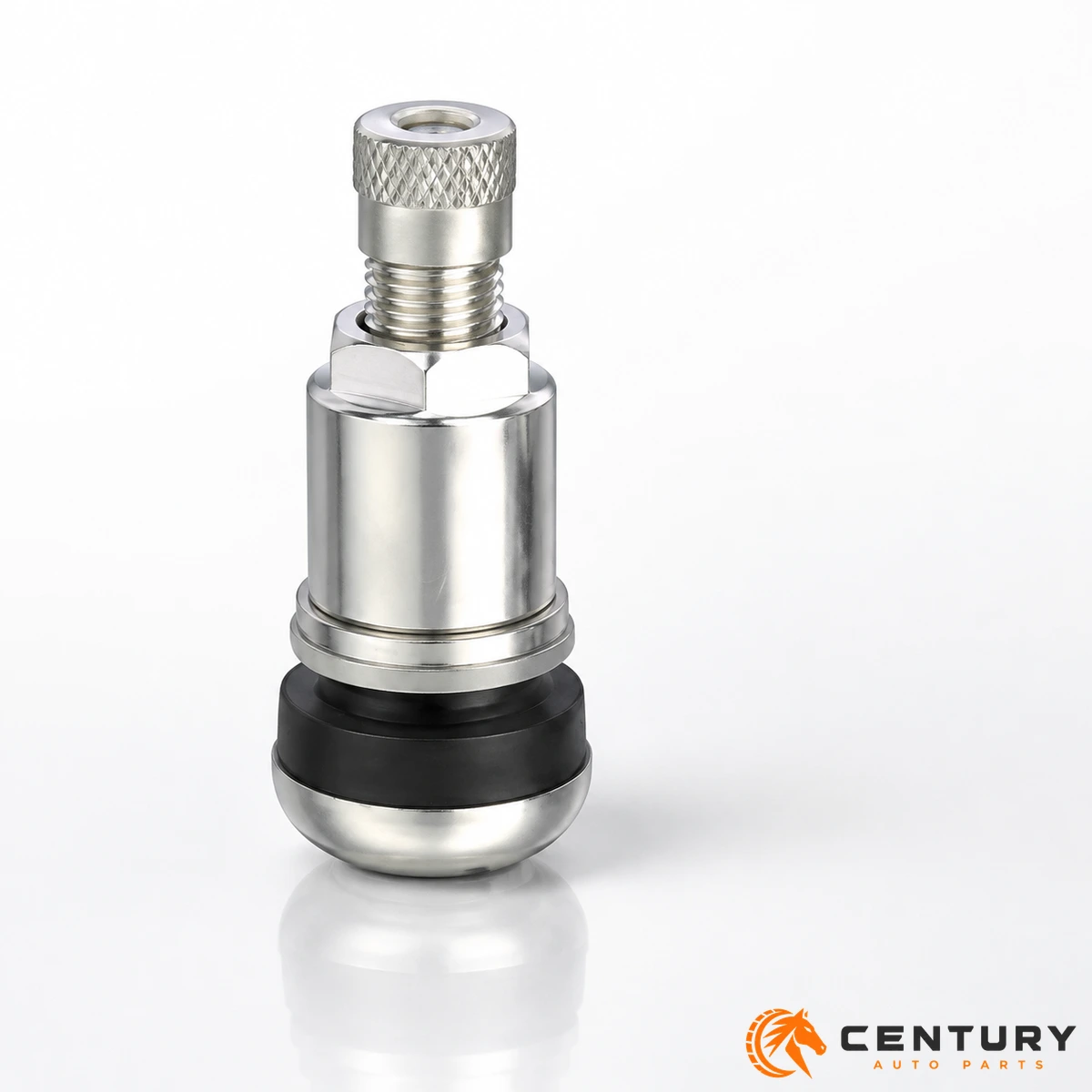

MS525L Valve Stem
Metal clamp-in valve stem MS525L, long version for passenger cars and light trucks.

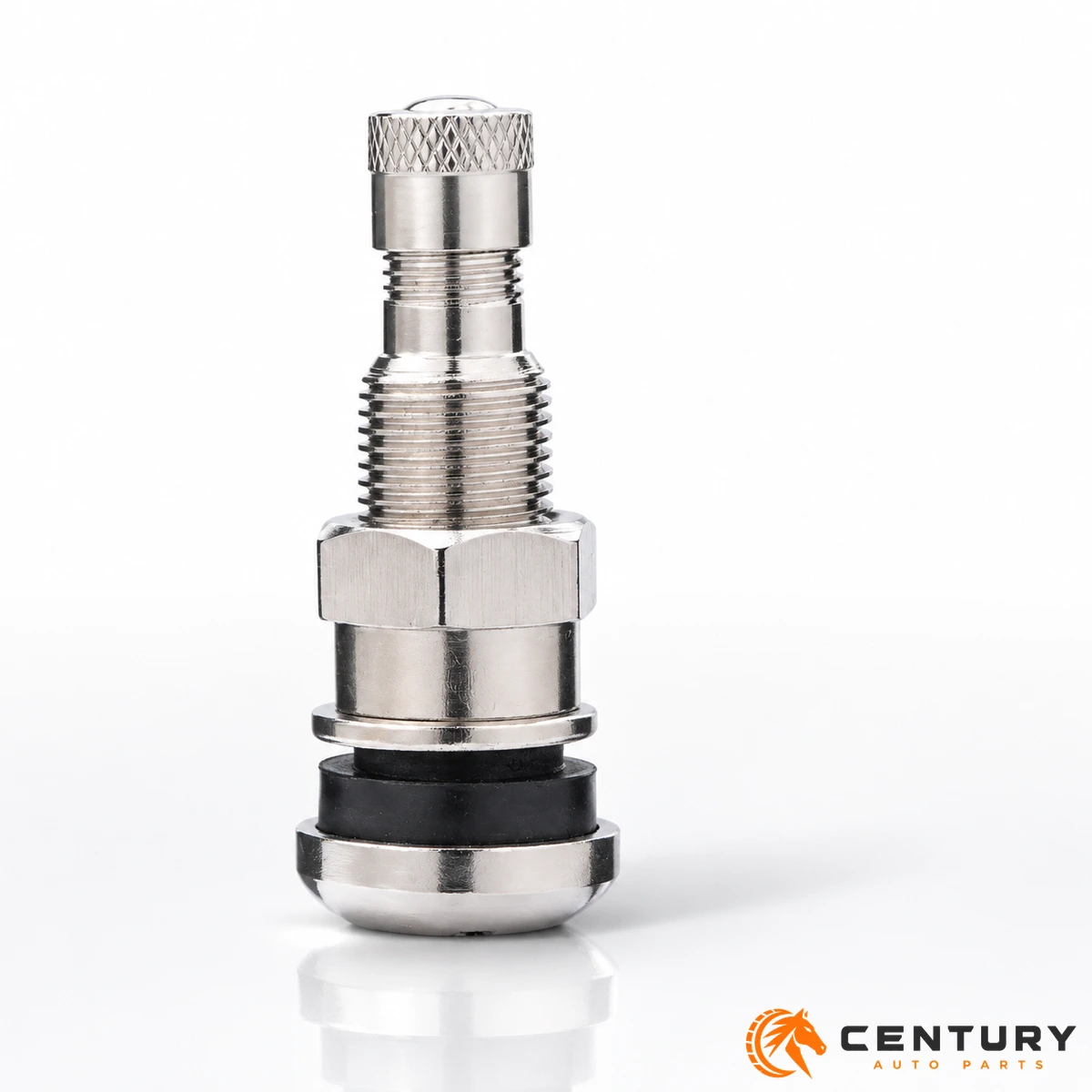

MS525S Valve Stem
Metal clamp-in valve stem MS525S, short version for compact passenger car wheels.

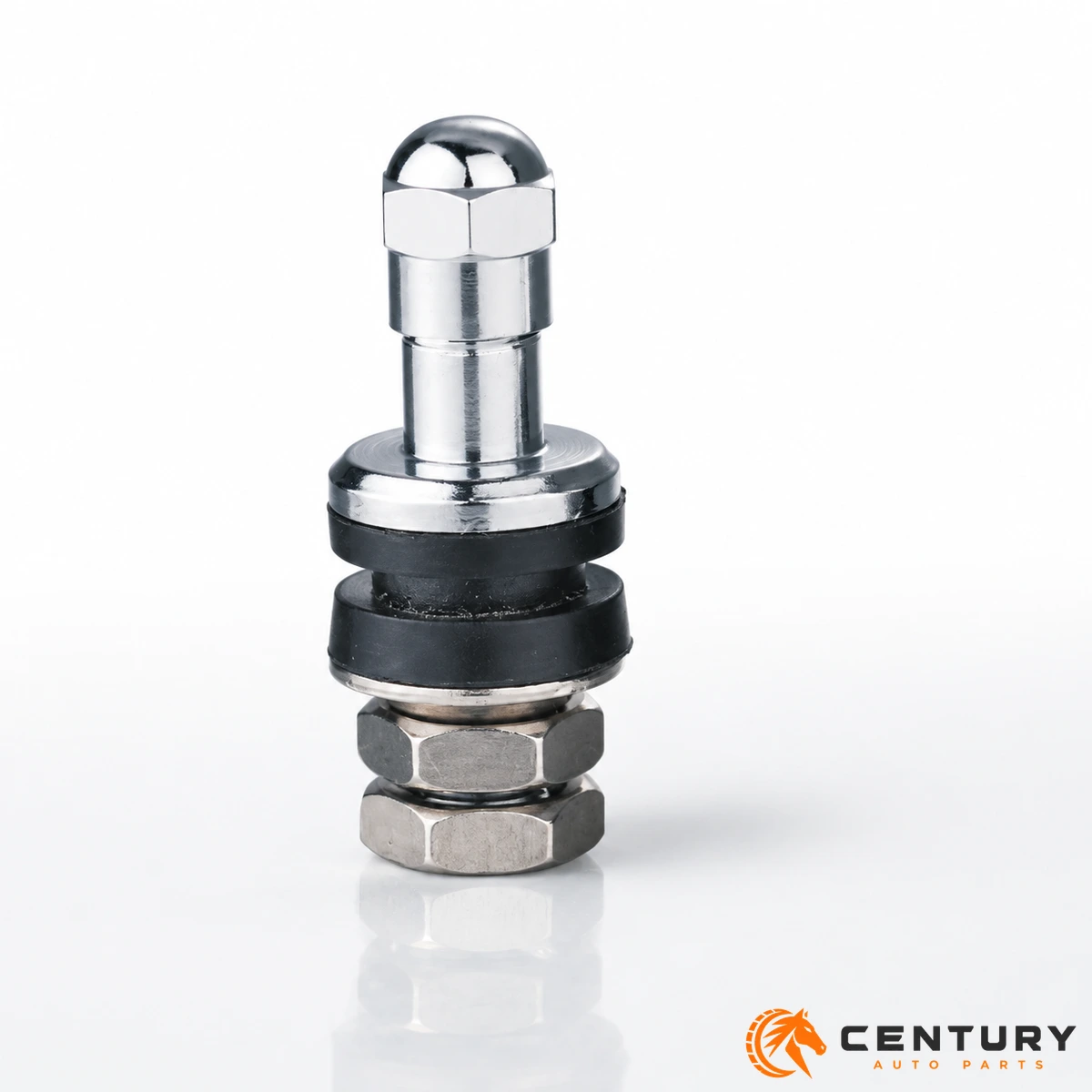

VS-8 Clamp-In Valve
Straight metal clamp-in valve VS-8 for passenger cars, rigid bolt-in design with sealing grommet.

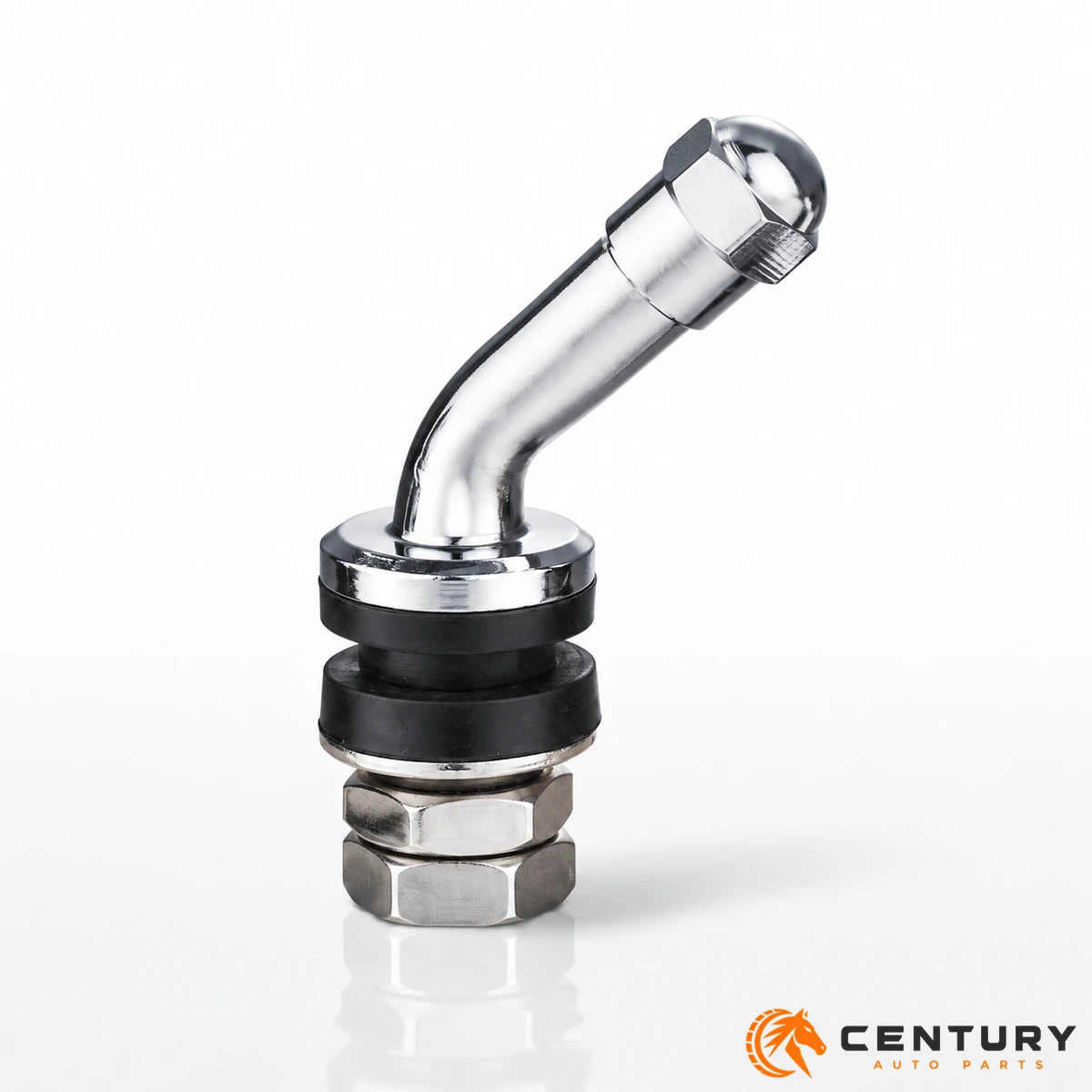

VS-8-45 Clamp-In Valve
45° bent metal clamp-in valve VS-8-45 for passenger cars, easy inflation access.

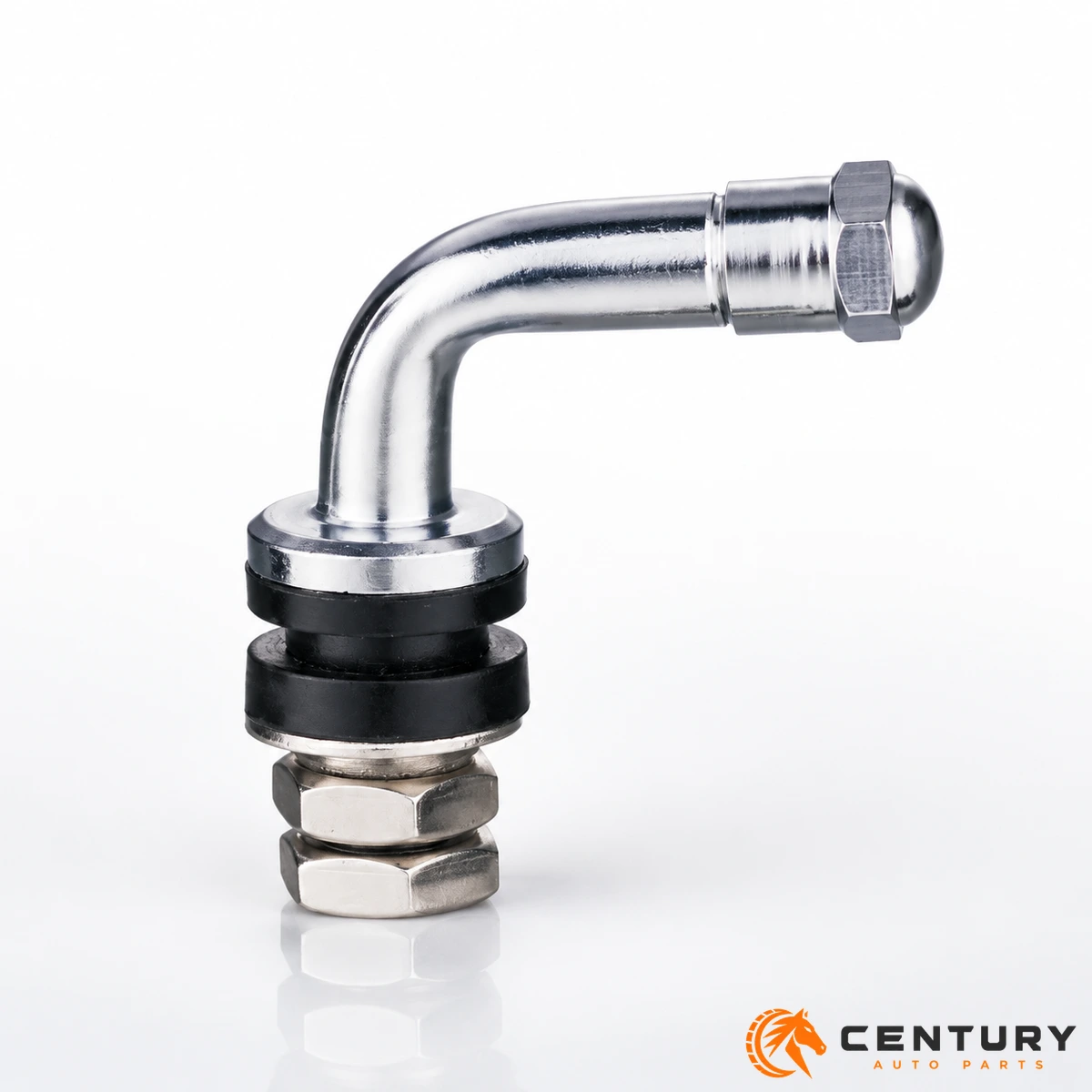

VS-8-90 Clamp-In Valve
90° bent metal clamp-in valve VS-8-90 for passenger cars, maximum inflation access.

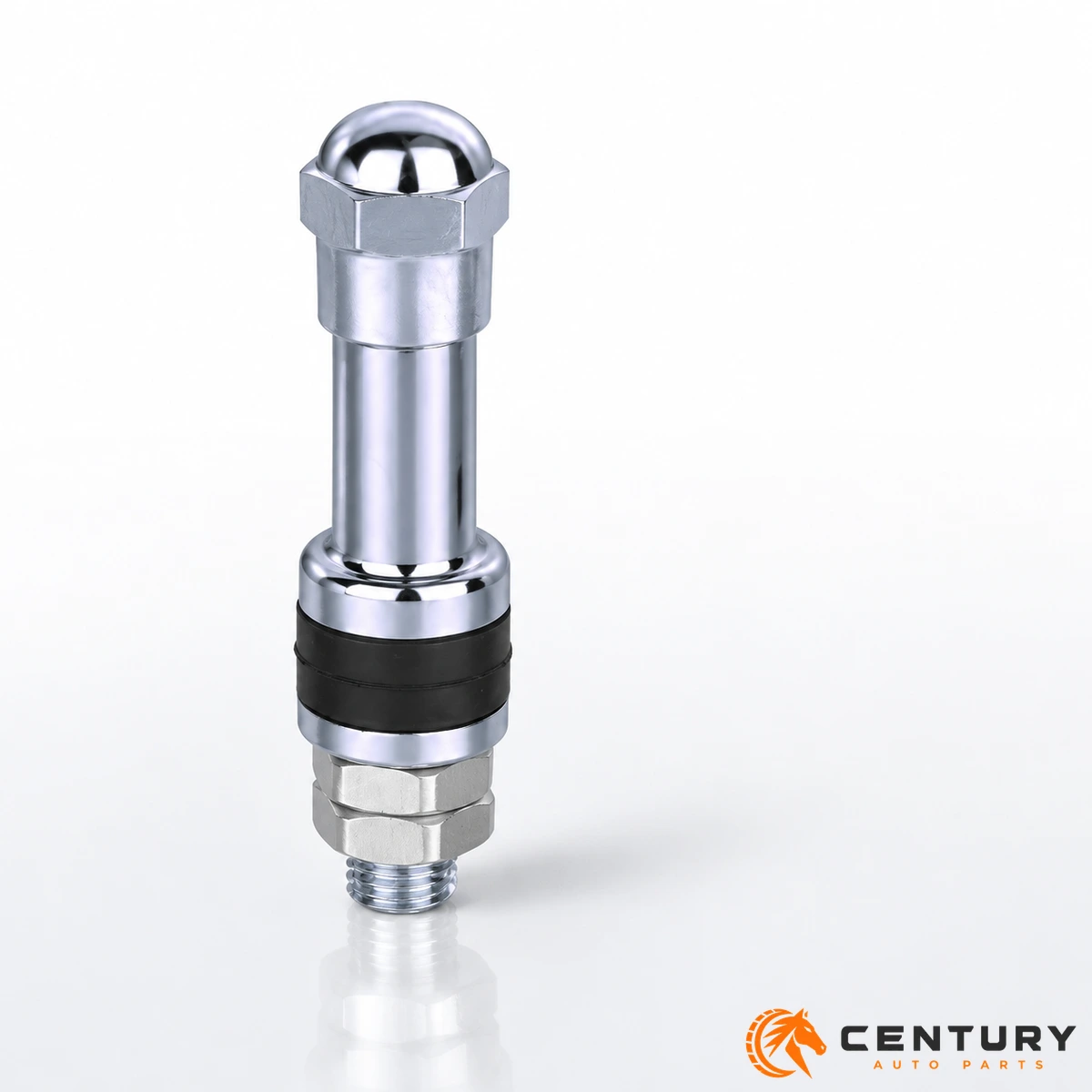

VS-6 Clamp-In Valve
Straight metal clamp-in valve VS-6 for passenger cars, rigid bolt-in design.
Passenger Car & Light Truck - Size Comparison Table
All models in this category with key dimensions. Click a model number for full details.
| Model | A (mm) | B (mm) | Bend Angle | Rim Hole |
|---|---|---|---|---|
| PVR153-3.2 | 80 | — | — | Φ11.5 (.453") |
| PVR153-2.7 | 70 | — | — | Φ11.5 (.453") |
| PVR153-2.3 | 60 | — | — | Φ11.5 (.453") |
| TR412 | 22 | 34 | — | 11.5 |
| TR413 | 32 | 42 | — | 11.5 |
| TR414 | 38 | 48 | — | 11.5 |
| TR414L | 46 | 56.5 | — | 11.5 |
| TR415 | 32 | 42 | — | 15.9 |
| TR418 | 51 | 62 | — | 11.5 |
| TR423 | 63 | 74 | — | 11.5 |
| TR425 | 51 | 62 | — | 15.9 |
| TR438 | 40.5 | 31 | — | 8.8 |
| TR600HP | 32 | 44 | — | 11.5 |
| TR602HP | 51 | 63 | — | 11.5 |
| TR801HP | 33 | 48 | — | 15.9 |
| TR802HP | 51 | 66 | — | 15.9 |
