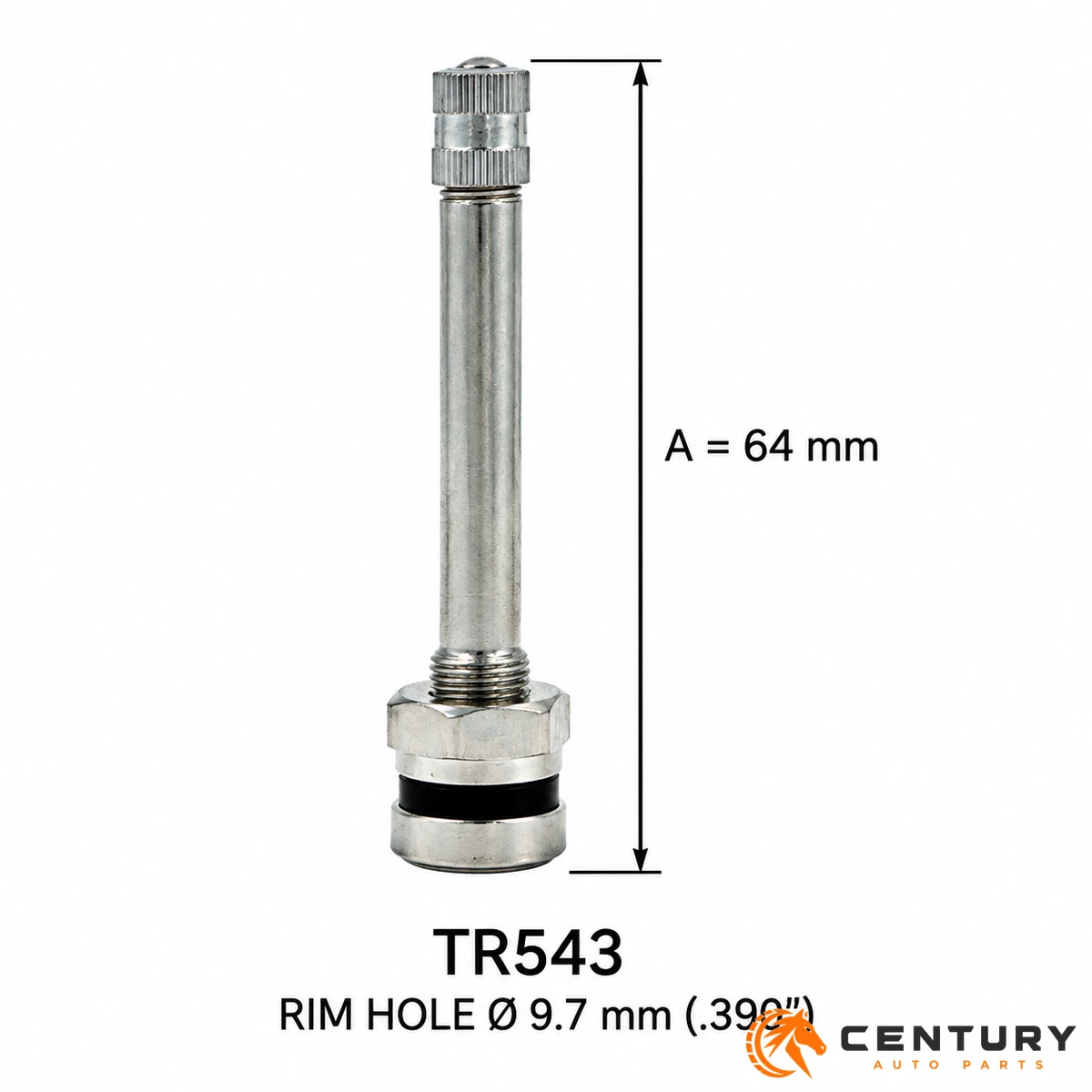

TR543 Clamp-In Valve
TR543 nickel-plated brass clamp-in truck valve stem, straight version, A=64mm, rim hole Φ9.7 (.390").
- Ni-plated brass clamp-in construction
- Straight stem, A=64mm
- Rim hole Φ9.7mm (.390")
- Core & cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
TR543 nickel-plated brass clamp-in tyre valve stem for trucks and buses, straight version with 64mm effective length, fitting the Φ9.7mm (.390") rim hole. Part of the TR542-TR547 series with straight and 45°/60°/75° bent options. Factory-direct with bulk and OEM/ODM options.
Specifications
| Model | A (mm) | B (mm) | β° | Rim Hole |
|---|---|---|---|---|
| TR542 | 32 | — | — | Φ9.7 (.390") |
| TR543 | 64 | — | — | Φ9.7 (.390") |
| TR543C | 25 | 29 | 45° | Φ9.7 (.390") |
| TR543D | 25 | 29 | 60° | Φ9.7 (.390") |
| TR543E | 25 | 29 | 75° | Φ9.7 (.390") |
| TR544 | 78 | — | — | Φ9.7 (.390") |
| TR544C | 25 | 48 | 45° | Φ9.7 (.390") |
| TR544D | 25 | 48 | 60° | Φ9.7 (.390") |
| TR545 | 94 | — | — | Φ9.7 (.390") |
| TR545D | 25 | 64 | 60° | Φ9.7 (.390") |
| TR545E | 25 | 64 | 75° | Φ9.7 (.390") |
| TR546 | 113 | — | — | Φ9.7 (.390") |
| TR546D | 25 | 83 | 60° | Φ9.7 (.390") |
| TR546E | 25 | 83 | 75° | Φ9.7 (.390") |
| TR547 | 124 | — | — | Φ9.7 (.390") |
| TR547D | 25 | 94 | 60° | Φ9.7 (.390") |
