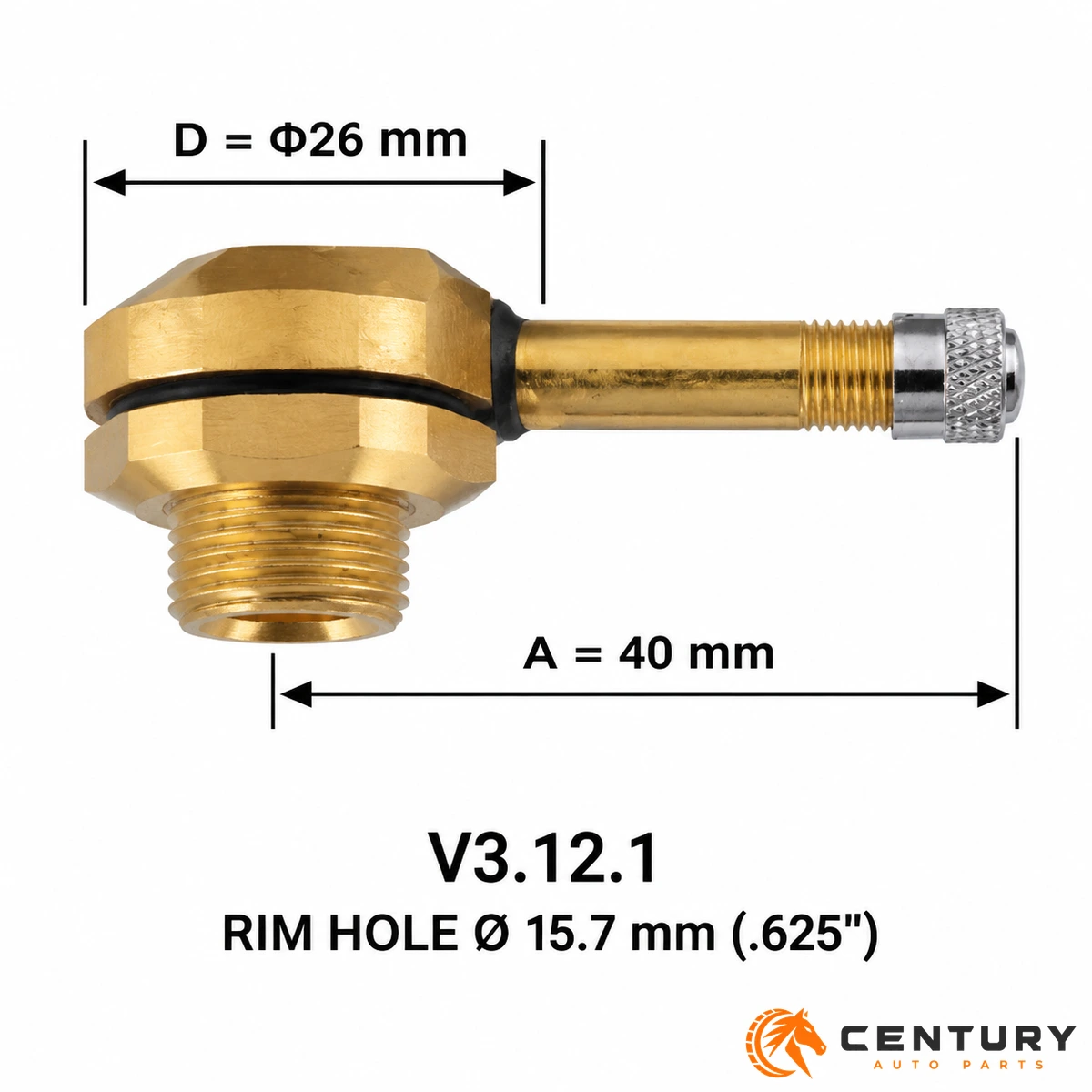

V3.12.1 Swivel Valve
Brass swivel tyre valve for agricultural machinery, Φ26 base, straight stem A=40mm, rim hole Φ15.7 (.625").
- Swivel type, Φ26 base
- Straight stem, A=40mm
- Rim hole Φ15.7mm (.625")
- Core & cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
The V3.12.1 swivel type tyre valve is designed for tractors and agricultural machinery, with a swiveling Φ26mm base and straight stem. A=40mm, fitting the Φ15.7mm (.625") rim hole. Factory-direct with bulk and OEM/ODM options.
Specifications
| ETRTO No. | Rel Length (D) | A (mm) | Rim Hole |
|---|---|---|---|
| V3.12.1 | Φ26 | 40 | Φ15.7 (.625") |
| V3.12.2 | Φ26 | 95 | Φ15.7 (.625") |
| V3.12.3 | Φ26 | 65 | Φ15.7 (.625") |
| V3.12.4 | Φ26 | 90 | Φ15.7 (.625") |
