TR414L Snap-In Valve

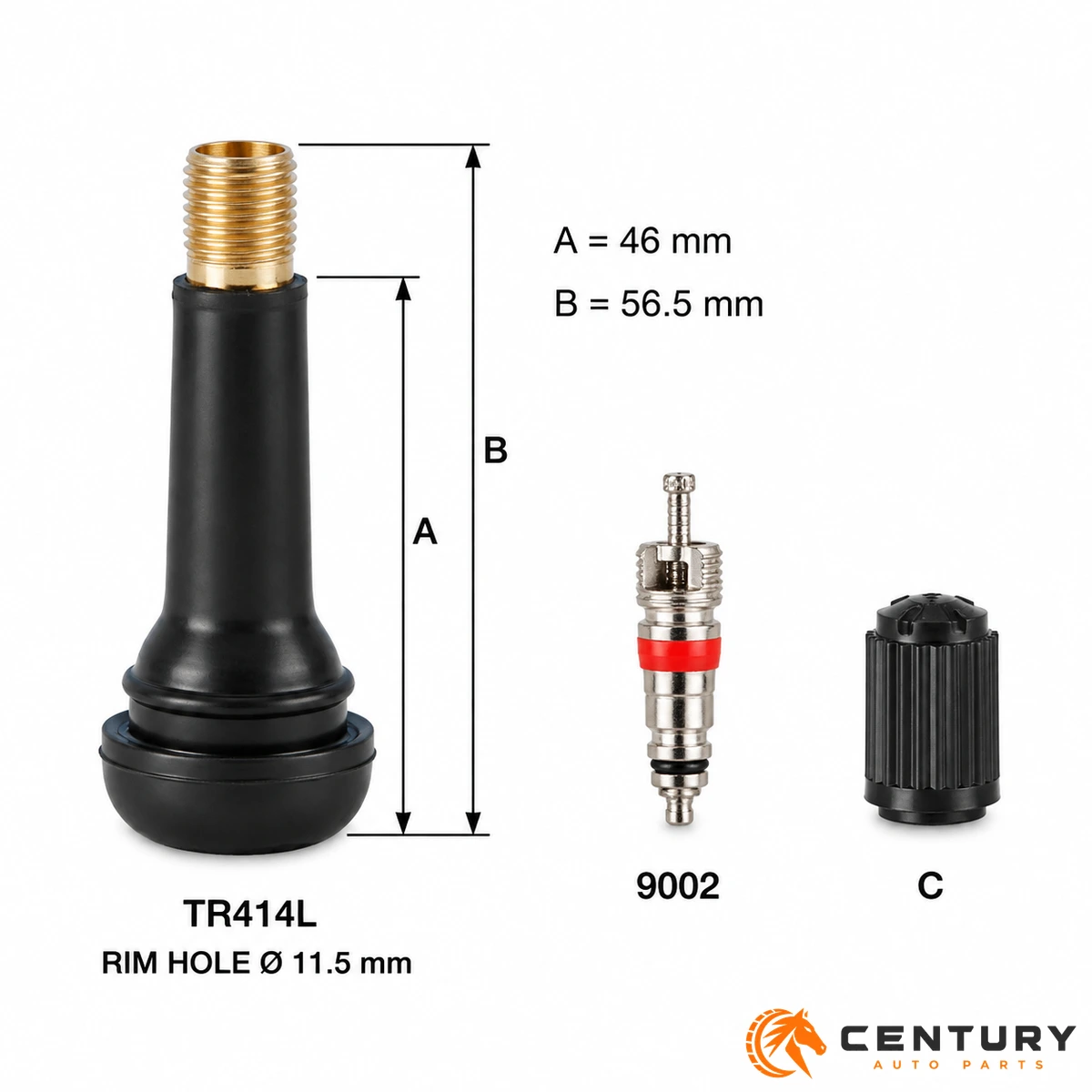

Long-version rubber snap-in valve TR414L. 11.5mm rim hole, A=46mm, B=56.5mm, core 9002#, max 65psi/4.5bar.
- Vulcanized rubber, leak-proof seal
- 11.5mm rim hole
- A=46mm, B=56.5mm (long version)
- Core 9002# & cap included
- Max 65psi / 4.5bar cold inflation
- Factory direct, OEM/ODM & bulk supply
Product Description
The TR414L rubber snap-in tubeless tyre valve is the long version of the TR414 for deeper wheel wells, fitting the standard 11.5mm rim hole with A=46mm and B=56.5mm effective lengths. Precision-molded vulcanized rubber with brass stem, supplied with 9002# core and cap, rated up to 65psi/4.5bar cold inflation pressure. Factory-direct with bulk and OEM/ODM options.
Specifications
| Model | A (mm) | B (mm) | Rim Hole (mm) | Core | Max Pressure |
|---|---|---|---|---|---|
| TR412 | 22 | 34 | 11.5 | 9002# | 65psi / 4.5bar |
| TR413 | 32 | 42 | 11.5 | 9002# | 65psi / 4.5bar |
| TR414 | 38 | 48 | 11.5 | 9002# | 65psi / 4.5bar |
| TR414L | 46 | 56.5 | 11.5 | 9002# | 65psi / 4.5bar |
| TR415 | 32 | 42 | 15.9 | 9002# | 65psi / 4.5bar |
| TR418 | 51 | 62 | 11.5 | 9002# | 65psi / 4.5bar |
| TR423 | 63 | 74 | 11.5 | 9002# | 65psi / 4.5bar |
| TR425 | 51 | 62 | 15.9 | 9002# | 65psi / 4.5bar |
| TR438 | 40.5 | 31 | 8.8 | 9002# | 65psi / 4.5bar |
