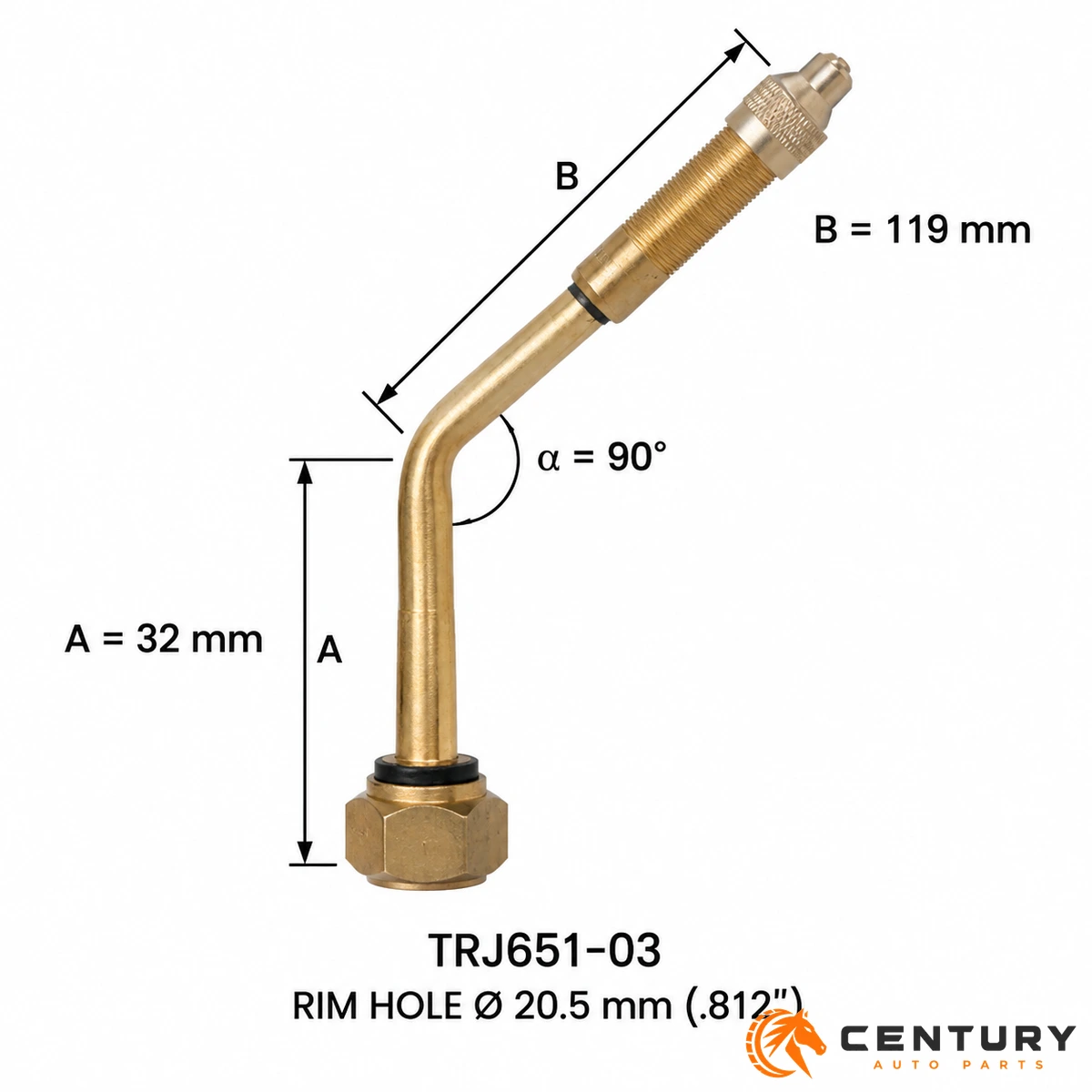

TRJ651-03 Large Bore Valve
Large-bore brass swivel tyre valve for agricultural and off-road machinery, 90° bend, A=32mm and B=119mm, rim hole Φ20.5 (.812").
- Large-bore brass swivel type
- 90° bent stem for easy access
- A=32mm, B=119mm
- Rim hole Φ20.5mm (.812")
- Hexagonal base & rubber grommet seal
- Factory direct, OEM/ODM & bulk supply
Product Description
The TRJ651-03 large-bore brass swivel tyre valve is designed for tractors, agricultural machinery and off-road vehicles, with a 90° bent stem for fast inflation and easy access on heavy equipment. A=32mm base height and B=119mm stem length, fitting the Φ20.5mm (.812") rim hole. Hexagonal base with rubber grommet seal. Factory-direct with bulk and OEM/ODM options.
Specifications
| TR No. | A (mm) | B (mm) | α° | Rim/Valve Hole |
|---|---|---|---|---|
| TRJ650-03 | 27 | 79 | 80° | Φ20.5 (.812") |
| TRJ651-03 | 32 | 119 | 90° | Φ20.5 (.812") |
| TRJ652-03 | 27 | 140 | 86° | Φ20.5 (.812") |
| TRJ653-03 | 27 | 64 | 80° | Φ20.5 (.812") |
| TRJ654-03 | 27 | 79 | 60° | Φ20.5 (.812") |
| TRJ655-03 | 24 | 79 | 74° | Φ20.5 (.812") |
| TRJ656-03 | 67 | 94 | 90° | Φ20.5 (.812") |
| TRJ657-03 | 27 | 102 | 80° | Φ20.5 (.812") |
| TRJ658-03 | 27 | 140 | 80° | Φ20.5 (.812") |
| TRJ659-03 | 48 | 89 | 90° | Φ20.5 (.812") |
| TRJ660-03 | 48 | 222 | 90° | Φ20.5 (.812") |
| TRJ669-03 | 27 | 64 | 90° | Φ20.5 (.812") |
| TRJ670-03 | 41 | — | — | Φ20.5 (.812") |
| TRSP2 | 17 | — | — | Φ20.5 (.812") |
