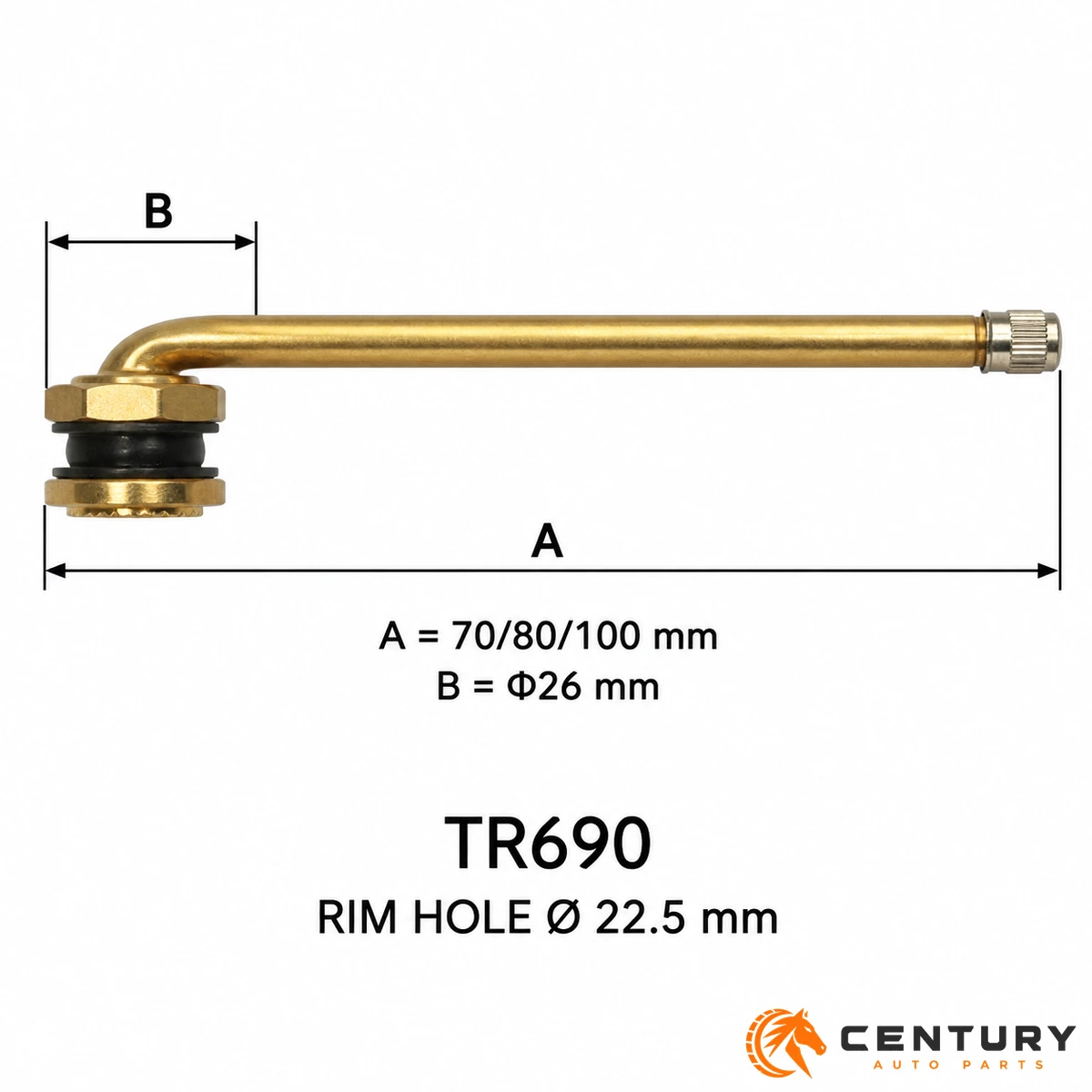

TR690 Valve
TR690 tyre valve for agricultural machinery, three size options 70/80/100mm, rim hole Φ22.5.
- Three size options 70/80/100mm
- Rim hole Φ22.5mm
- Heavy-duty construction
- Core & cap included
- Factory direct, OEM/ODM & bulk supply
Product Description
TR690 tyre valve for tractors, agricultural machinery and off-road vehicles, available in 70mm, 80mm and 100mm lengths, fitting the Φ22.5mm rim hole. Factory-direct with bulk and OEM/ODM options.
Specifications
| Model | Eff. Length (mm) | Size | Rim Hole |
|---|---|---|---|
| TR690 | 70 | Φ26 x 70 | Φ22.5 |
| TR690 | 80 | Φ26 x 80 | Φ22.5 |
| TR690 | 100 | Φ26 x 90 | Φ22.5 |
