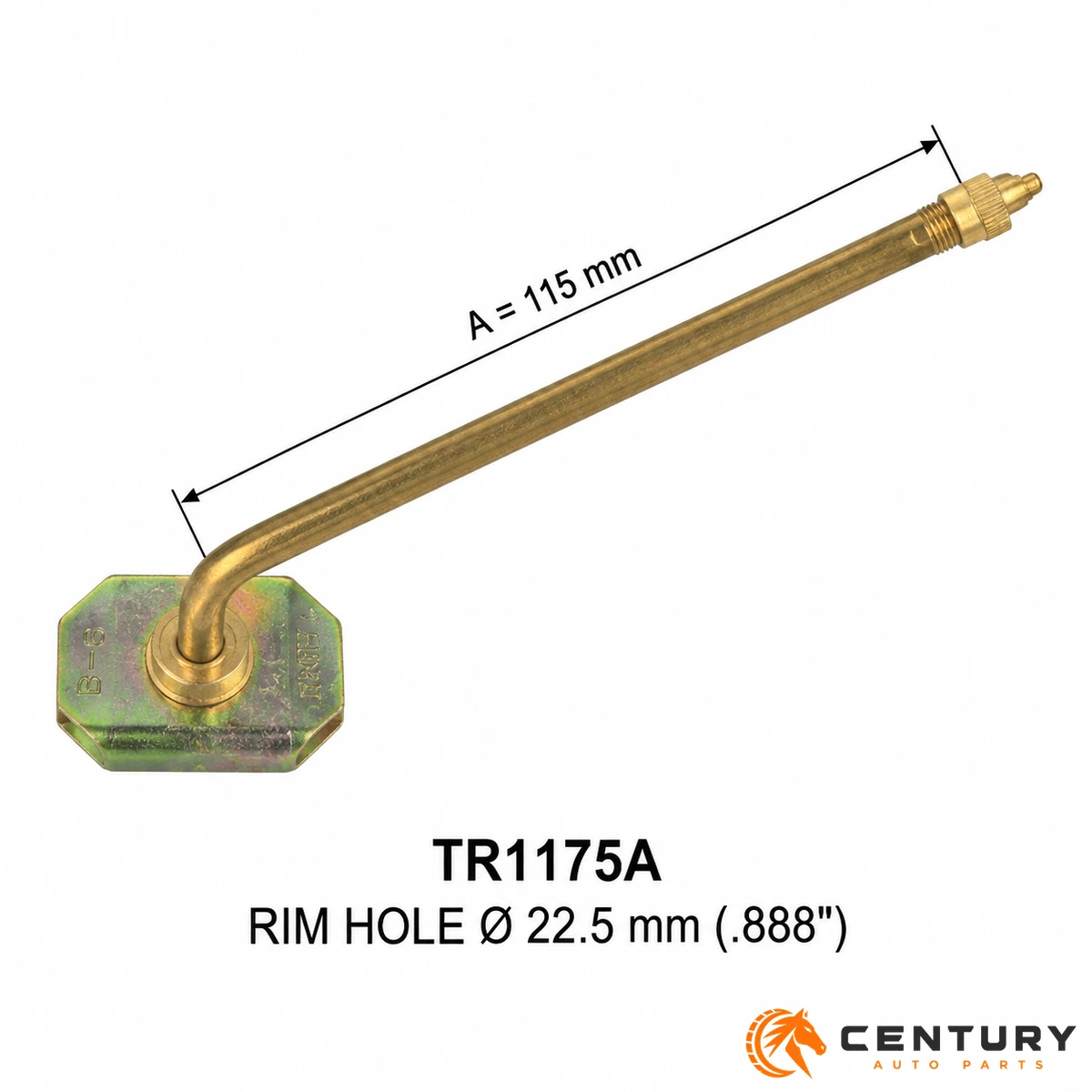

TR1175A Screw-On Universal Valve
TR1175A brass screw-on universal valve for agricultural machinery, stem length A=115mm, rim hole Φ22.5.
- Brass stem with steel plate base
- Stem length A=115mm, 86° bend
- Rim hole Φ22.5mm (.888")
- For agricultural & off-road vehicles
- Factory direct, OEM/ODM & bulk supply
Product Description
TR1175A brass screw-on universal tyre valve for tractors, agricultural machinery and off-road vehicles, with a zinc-plated steel plate base and an 86° bent brass stem of 115mm length, fitting the Φ22.5mm rim hole. Part of the TR-A screw-on universal valve series with ten length options from 50mm to 141mm. Factory-direct with bulk and OEM/ODM options.
Specifications
| ETRTO No. | Φ (mm) | A (mm) |
|---|---|---|
| TR1075A | 22.5 | 76 |
| TR1076A | 22.5 | 86 |
| TR1077A | 22.5 | 105 |
| TR1078A | 22.5 | 127 |
| TR1175A | 22.5 | 115 |
| TR1177A | 22.5 | 95 |
| TR1778A | 22.5 | 135 |
| TR1779A | 22.5 | 141 |
| TR1227A | 22.5 | 50 |
| TR1274A | 22.5 | 60 |
